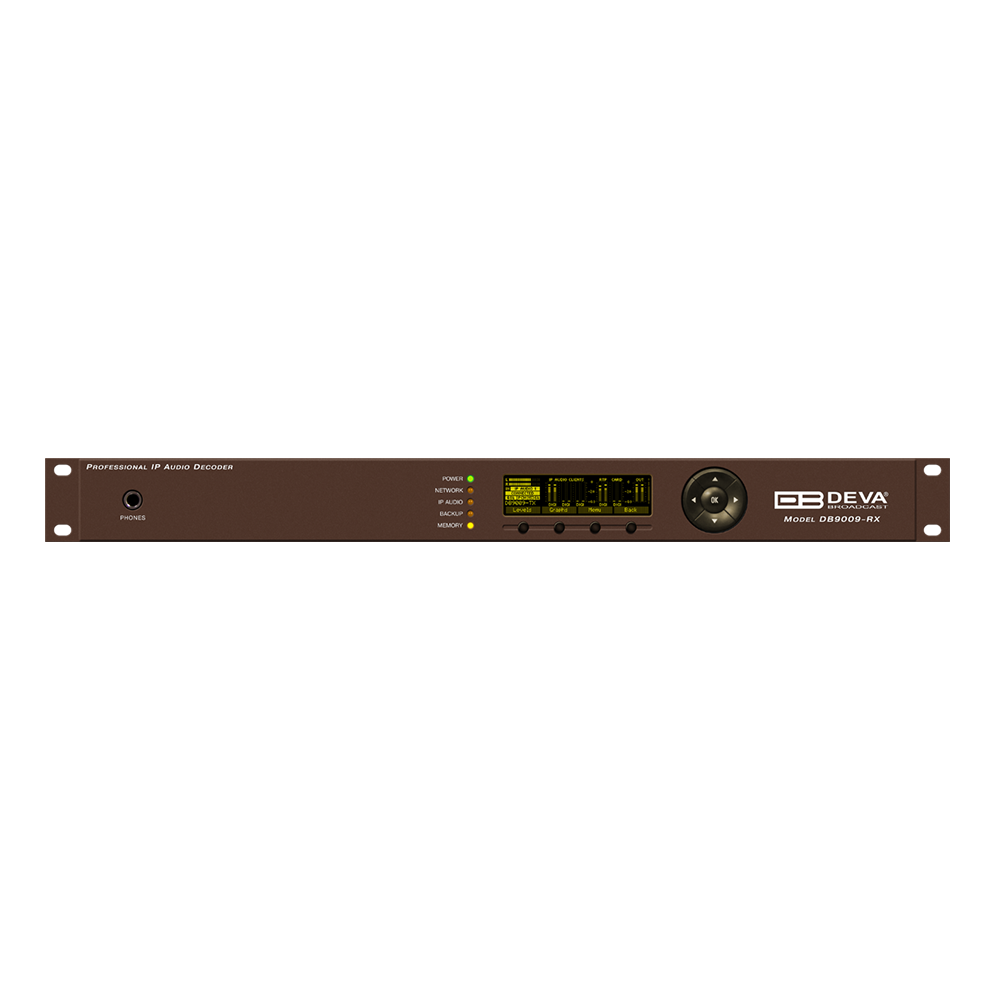

DEVA DB9009-RX/MPX PROFESIONAL SECOND GENERATION ADVANCED IP AUDIO DECODER WITH DSP-BASED STEREO & RDS ENCODER MODULE

SKU
DEV-DB9009-RX/MPX
MFR#
DB9009-RX/MPX
was $2,525.00 Special Price $2,399.00
Availability: In stock

DB9009-RX is a professional second-generation IP audio decoder all in a class of its own. Developed to provide users with a powerful and flexible solution for receiving and processing IP audio streams, this product brings efficiency and reliability coupled with an integrated DSP-based Stereo and RDS encoder. It supports a variety of audio formats including HE-AAC and MPEG-1 Layer 3, offering high-quality audio reproduction for FM broadcasting. Alarms can be dispatched via email and SNMP.

What makes this product especially easy to use is the extremely intuitive embedded WEB server for interactive supervision. It features an automatic failover to an internal MP3 player or alternative IP stream, ensuring uninterrupted broadcasting even in the event of a primary source failure. DB9009-RX also provides a number of great additional features, such as the Factory Parameters Restore option, SNTP for automatic synchronization of the built-in clock, as well as easy integration with existing broadcast setups.

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

DB9009-RX is an advanced second-generation professional IP audio decoder all in a class of its own. Specifically developed to guarantee easy and flexible real-time audio decoding and processing for FM Radio Transmitters, this product brings efficiency and reliability coupled with a compact and practical design. It provides IP-based broadcast control for exceptional scalability, gives you access to high-quality audio streams and supports a variety of configurations: as a stand-alone decoder or as part of a larger distribution network. A quick intervention by the competent staff in the event of a fault has never been so easy, with adjustable alarm thresholds for audio loss and alarms dispatched via email and SNMP.

Top product performance is also achieved thanks to the LAN port for full TCP/IP remote control and monitoring and the extremely intuitive embedded WEB server for interactive supervision. What is more, it includes an integrated DSP-based Stereo Encoder and a fully-featured RDS Encoder, allowing for a complete signal chain from IP stream to MPX output. DB9009-RX also provides a number of great additional features, such as the Factory Parameters Restore option, SNTP for automatic synchronization of the built-in clock, as well as support for both Icecast and RTP protocols. It allows for easy firmware upgrades to ensure that your decoding device is always up to date.

Combined with a compact and robust aluminum case, this powerful product delivers dependable round-the-clock operation with guaranteed quality.

Your Rating

Features:

  • Professional IP Audio Decoder with DSP-based Stereo Encoder
  • Fully featured integrated RDS/RBDS Encoder
  • Support for HE-AAC (v.1 and v.2) and MPEG-1 Layer 3
  • LAN port for full TCP/IP remote control and monitoring
  • Very Intuitive Embedded WEB server for interactive supervision
  • Advanced monitoring and full control by SNMP Ver.2C
  • Automatic failover to internal MP3 player or backup IP stream
  • Firmware update for future-proof operation
  • Alarm dispatch via E-mail and SNMP
  • Proved and reliable hardware for 24/7/365 operating
  • SNTP for automatic synchronization of the built-in clock
  • Support for Icecast and RTP (Real-time Transport Protocol)
  • Compact and Robust Aluminum Case for high RF immunity
  • Easy Installation and Setup

Specifications:

User Interface
WEB interface Full monitoring and control; Interactive and easy to use
Indicators 4 LEDs on front panel
Audio Decoder
Formats HE-AAC (v.1, v.2), MPEG-1 Layer 3
Sample Rates 32 kHz, 44.1 kHz and 48 kHz
Outputs
Analog L/R Balanced (XLR)
Digital AES/EBU (XLR)
Composite MPX and RDS (BNC)
Communication Interfaces
Ethernet 10/100 Base-T RJ45 connector
Serial RS-232
Protocols HTTP, SNMP, Icecast, RTP, DHCP
Operating conditions
Temperature 0° to 45°C
Humidity 0 to 95% RH, non-condensing
Power
Voltage External, 12V/1A
Power consumption 10VA
Size and Weight
Dimensions (W,H,D) 110 x 30 x 135 mm
Shipping Weight 0.8kg
HS Code 8543709099
