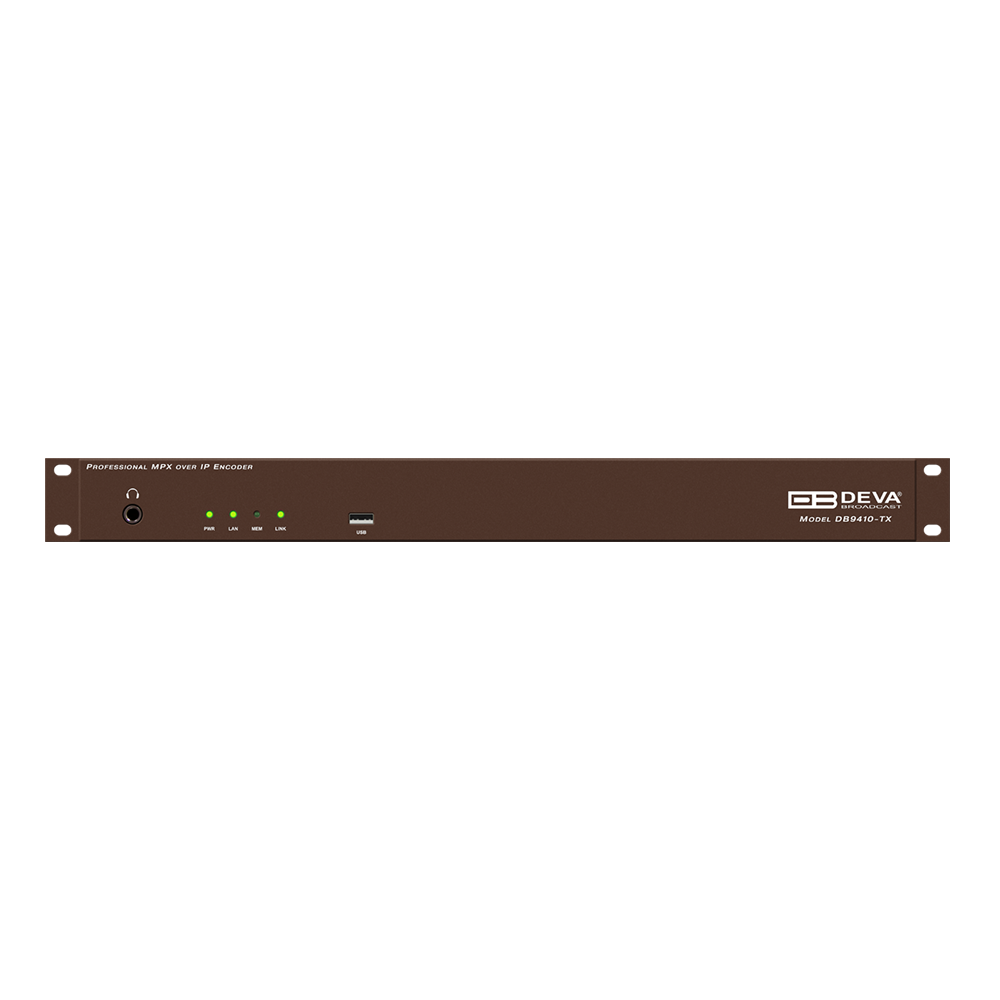

DEVA DB9410-TX PROFESSIONAL MPX OVER IP ENCODER - MicroMPX 0526
SKU
DEV-DB9410-TX
MFR#
DB9410-TX
$1,965.00
Availability:
Out of stock
The DB9410-TX is a professional-grade MPX over IP Encoder designed to revolutionize signal transport in the FM broadcast industry. By utilizing the cutting-edge MicroMPX (µMPX) algorithm, this device enables the transmission of a full FM composite signal—including stereo and RDS—over IP networks with incredibly low bandwidth, starting at just 320 kbps. It is the ideal solution for high-fidelity Studio-to-Transmitter Links (STL) over public or private IP connections.
What makes this encoder stand out is its combination of versatility and ease of use, featuring an intuitive HTML5-based WEB server for interactive supervision and remote control. The DB9410-TX supports multiple input sources, including Analog MPX, Digital AES192, and Balanced L/R Analog Audio. With advanced features like an integrated audio backup via USB and support for SNMP v2c, it ensures reliable, continuous broadcasting with a compact and robust 1U rack design.
The DEVA DB9410-TX is an advanced Professional MPX over IP Encoder engineered to provide broadcasters with a reliable and cost-effective method for signal distribution. Based on the revolutionary MicroMPX (µMPX) codec from Thimeo, this device allows for the delivery of a complete multiplex signal over narrowband IP links with ultra-low latency. Whether using the internet or dedicated network infrastructures, the DB9410-TX guarantees high-quality audio reproduction and total signal integrity for stereo and RDS data.
Maximum performance is achieved through a 100% digital DSP-based design and high-end ADC converters, ensuring pristine audio processing. The unit offers exceptional scalability and control, featuring a responsive embedded WEB server for real-time monitoring from any modern browser. For network management, it includes a full SNMP v2c agent. Additionally, the DB9410-TX is equipped with a sophisticated audio backup system that can automatically switch to a USB flash drive or internal MP3 player in case of signal loss, ensuring your station stays on air 24/7.
Protected by a durable 1U rack-mountable aluminum chassis for high RF immunity, this powerful encoder is built for long-term dependable operation. Its ease of installation and superior price-performance ratio make the DB9410-TX an essential tool for modern FM broadcast facilities looking to upgrade their IP-based transport capabilities.
Features:
- Revolutionary MicroMPX (µMPX) algorithm for full FM MPX encoding
- Low bandwidth operation (from 320 kbps) for cost-effective IP transport
- Ultra-low latency, all-digital DSP-based signal processing
- High-end ADC converters for professional-grade audio quality
- Versatile inputs: Analog MPX, Digital AES192, and Balanced L/R
- Integrated HTML5 WEB server for interactive supervision and control
- Full management via SNMP v2c for network integration
- Audio Backup system via USB flash drive or internal MP3 player
- Forward Error Correction (FEC) for stable streaming over IP
- Adjustable input levels and alarm thresholds
- Compact 1U Rack-mountable Aluminum Case for high RF immunity
- Unicast and Multicast support for flexible distribution
Specifications:
| MPX Encoder | |
| Codec | μMPX (MicroMPX) |
| Sample Rates | 176.4 kHz, 192 kHz, 216 kHz |
| Bitrate Range | 320 kbit/s to 1700 kbit/s |
| Audio Inputs | |
| Analog MPX | BNC, Unbalanced, 10kΩ |
| Digital AES192 | AES/EBU (via RJ-45 balanced) |
| Analog L/R | XLR Balanced, +12dBu max |
| Interfaces & Protocols | |
| Network | RJ-45, 10/100/1000 Mbps Ethernet |
| Protocols | UDP, RTP, HTTP, SNMP v2c, UPnP |
| USB | Type A for Audio Backup/Firmware update |
| General | |
| Power | 100-240V AC, 50-60Hz (12VA) |
| Dimensions | 485 x 44 x 180 mm (1U Rack) |
| Operating Temp. | -10° to 50°C |
