RGBLINK TAO-1PRO-SDI PN 410-5513-01-1 RECORDER SWITCHER STREAMER NDI 5.0 ENCODER SDI

RGBLINK

SKU

RGB-TAO-1PRO-SDI

MFR#

410-5513-01-1

$799.00

Availability: In stock

RGBLINK TAO-1PRO-SDI PN 410-5513-01-1 RECORDER SWITCHER STREAMER NDI 5.0 ENCODER SDI

Be the first to review this product

Description

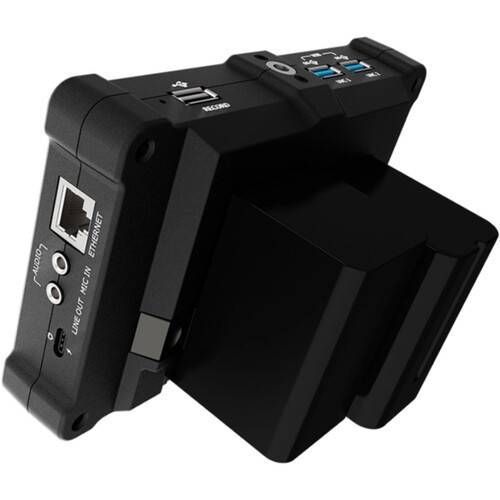

Switch, stream, and record HD video for live broadcasts with the TAO 1pro HDMI/USB/NDI Video Switcher from RGBlink. This portable livestreaming switcher features two HDMI 1.3 and two USB 3.0 inputs for a variety of cameras up to 1080p60 resolution, an HDMI 2.0 monitor output, and the RJ45 Ethernet port lets you simultaneously stream to up to four streaming platforms, such as OBS and YouTube Live. It also features an NDI 5.0 encoder, so you can stream high-quality video with up to UHD 4K60 resolution on an NDI network. A USB 2.0 Type-A output is also included to record your program onto a separately available USB drive.

Rating & Review

Product Details

Key Features:

Switch up to Four 1080p60 Video Signals
1080p USB/HDMI Input, HDMI 2.0 Output
NDI 5.0/HDMI Output up to UHD 4K60

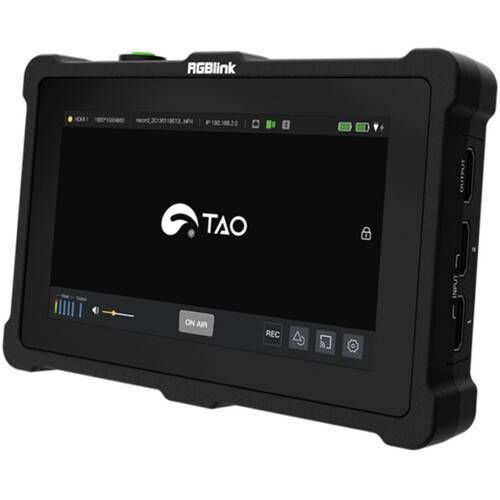

Integrated 5.5" 1920 x 1080 Touchscreen
USB 2.0 Recording Output, UVC Support
RJ45 Port for LAN/Streaming
Up to Four Simultaneous Streams
Bluetooth 5.0 Support for PTZ Control
L-Series Battery Plate

RGBlink TAO 1pro Specs

Processing:

Switching Type

Pushbutton, Software

Input:

Video Inputs	2 x HDMI (1.3) Female 2 x USB-A
Input Video Format	HDMI 1080p at 23.98/24/60 fps 720p 50/60 fps WUXGA+ (1680 x 1050) 60 fps UXGA (1600 x 1200) 60 fps 1360 x 768 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps
Audio Inputs	1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	HDMI

Output:

Video Outputs	1 x HDMI (2.0) Female 1 x USB-A (USB Video) Female 1 x RJ45 (NDI) Female
Output Video Format	HDMI / RJ45 / USB-A UHD 4K at 60 fps 1080p 24/25/50/60 fps 720p 50/60 fps 1360 x 768 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps
Audio Outputs	1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format	Analog
Embedded Audio Output	HDMI USB-A
