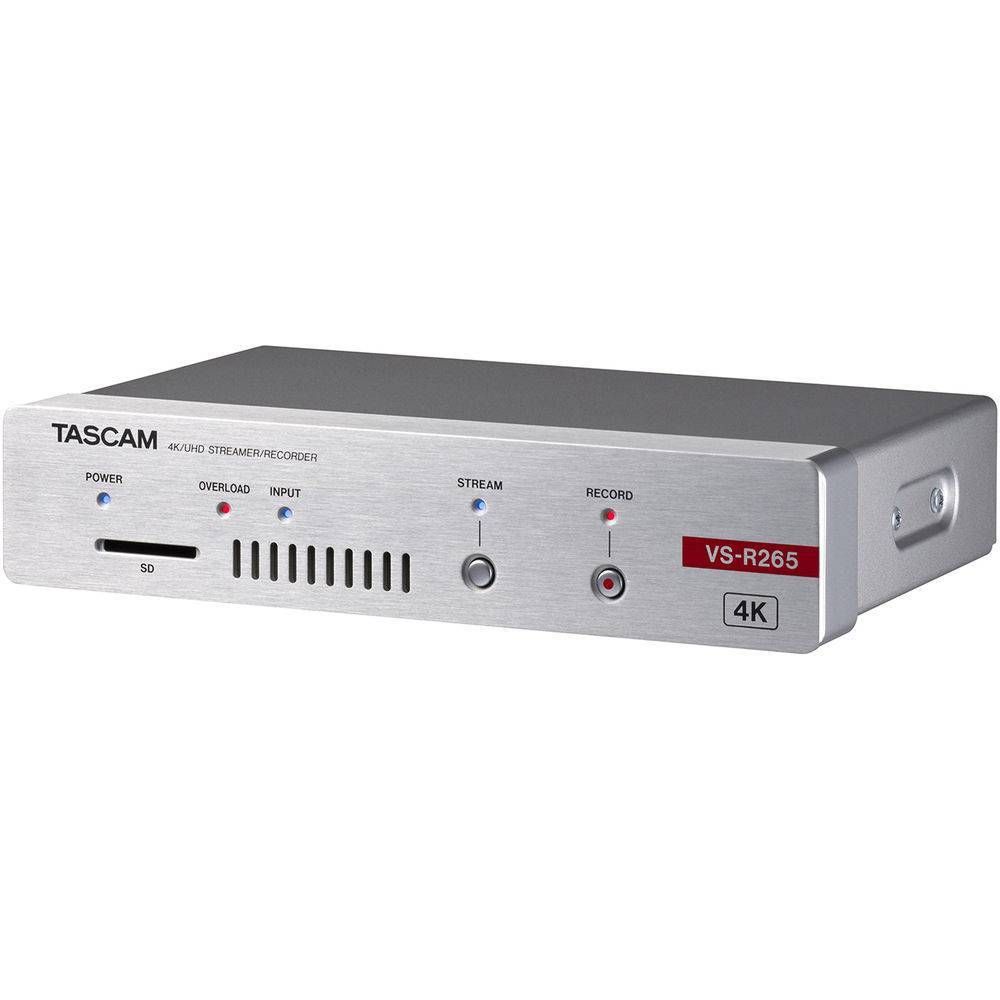

The TASCAM VSR-265 Stand-Alone 4K UHD Video Encoder/Decoder for Live Streaming streams and records up to 3840 x 2160 over IP. It simultaneously records video, encodes, streams, and decodes multiple streams using the H.264 or H.265 codec. It supports encoding at up to 30 Mb/s using H.264/H.265 and can record to either SD cards, or attached USB drives.
The TASCAM DISCOVERY app allows you to remotely manage multiple units via an easy-to-use web GUI. After setup, all settings are saved locally to the individual VS-R units, so they can operate without being controlled by a computer. The unit powers by PoE+, allowing you to place it anywhere you can run an appropriate Ethernet cable connected to a router that supports PoE+. If that is not possible, an AC power adapter is available. Mounting brackets are included, and an optional AK-RS1 shelf allows you rackmount two units side-by-side.
H.264/H.265: 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p Encoding, Decoding H.264/H.265: 720 x 480 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 50i, 59.94p, 60p Encoding, Decoding
Transport Protocols
RTMP, RTSP
Simultaneous Streams
2 Streams
Wi-Fi
None
Bluetooth
None
Video I/O
1 x HDMI (HDMI 1.4a) Input 1 x HDMI (HDMI 2.0) Output
Audio I/O
1 x 1/8" / 3.5 mm TRS Stereo Analog Input 1 x Block 6-Pin Stereo Analog Input 1 x 1/8" / 3.5 mm TRS Stereo Analog Output 1 x Block 6-Pin Stereo Analog Output
Other I/O
1 x RJ45 (10/100/1000 Ethernet) Input/Output
Recording Media
1 x SDHC 1 x USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes
3840 x 2160p at 23.98/24/25/29.97/30 fps (MP4 via H.264/AVC, H.265/HEVC) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC) 1280 x 720p at 50/59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC) 720 x 576p at 50 fps (MP4 via H.264/AVC, H.265/HEVC) 720 x 480p at 59.94/60 fps (MP4 via H.264/AVC, H.265/HEVC)
