TELOS Z/IPSTREAM R/20 PN 2001-00626-000 WITH 3-BAND OMNIA PROCESSING ( TWO STREAMS ) CAN SIMULTANEOUSLY SUPPORT BETWEEN TWO AND EIGHT CHANNELS OF PROCESSING AND ENCODING IN 1 RU .SUPPORTS POPULAR ENCO

TELOS Z/IPSTREAM R/20 PN 2001-00626-000 WITH 3-BAND OMNIA PROCESSING ( TWO STREAMS ) CAN SIMULTANEOUSLY SUPPORT BETWEEN TWO AND EIGHT CHANNELS OF PROCESSING AND ENCODING IN 1 RU .SUPPORTS POPULAR ENCO

TELOS Z/IPSTREAM R/20-NIELSEN PN 3001-00407-000 NIELSEN WATERMARKING LICENSE OPTION ONE LICENSEPER INPUT STREAM

TELOS Z/IPSTREAM R/20-NIELSEN PN 3001-00407-000 NIELSEN WATERMARKING LICENSE OPTION ONE LICENSEPER INPUT STREAM

TELOS Z/IPSTREAM R/20-API PN 3001-00402-000 OPTION FOR ADDITIONAL PROGRAM INPUT WITH 3 BAND OMNIA AUDIO PROCESSING UP TO EIGHT TOTAL AUDIO PROGRAM INPUTS PER UNIT SUPPORTED.

Telos
SKU
TEL-Z/IPSTREAM-R/20-API
MFR#
3001-00402-000
was $745.00 Special Price $671.00
Availability: Out of stock
TELOS Z/IPSTREAM R/20-API PN 3001-00402-000 OPTION FOR ADDITIONAL PROGRAM INPUT WITH 3 BAND OMNIA AUDIO PROCESSING UP TO EIGHT TOTAL AUDIO PROGRAM INPUTS PER UNIT SUPPORTED.
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

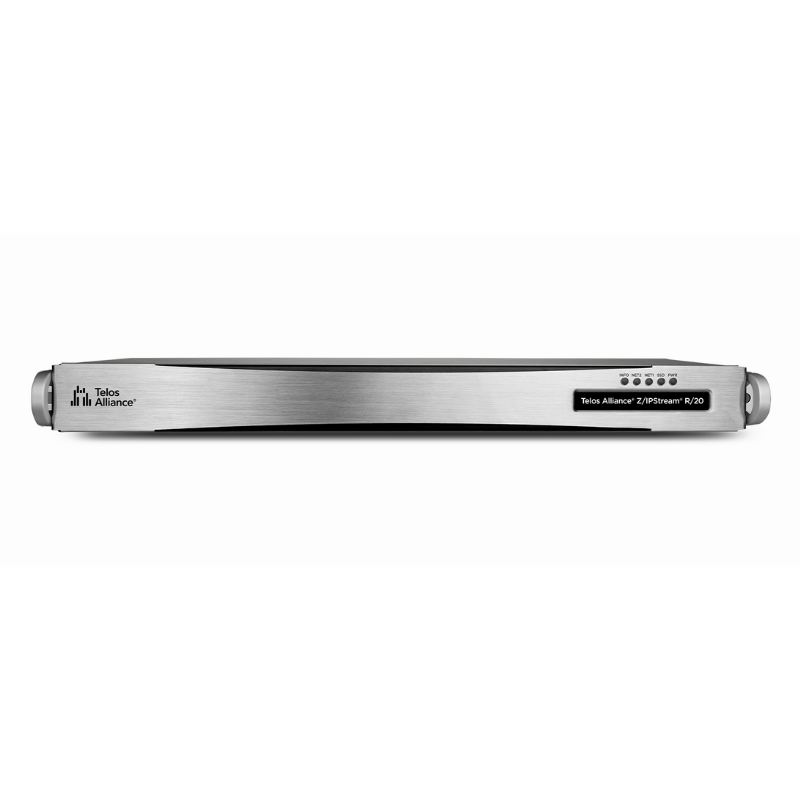

Z/IPStream® R/20 provides a multitude of streaming options for the broadcaster while maximizing audio quality for the listener. This latest-generation Z/IPStream processor and encoder is essentially the hardware appliance version of Z/IPStream X/20, allowing flexible, multi-format stream-encoding, audio processing, and watermarking  for up to eight audio programs, all in a single 1RU chassis.

Ideal for high-density processing and encoding applications, R/20 offers the simplicity and reliability of a single 1RU dedicated hardware appliance. R/20 is available with Omnia 3-band, Omnia Forza HDS, or Omnia.9 processing, all featuring the highest quality encoding from Fraunhofer IIS, the world leader in audio codecs.

Your Rating

Features:

  • Processing and stream encoding of up to eight audio programs in 1RU
  • Available with Omnia 3-band, or optional Omnia Forza HDS, or Omnia.9 processing
  • Optional Dèjá Vu upmixing from Omnia founder Frank Foti provides 5.1-channel surround sound via MPEG-Surround encoding
  • AES/EBU and Livewire® AoIP audio I/O
  • Encode a program at multiple bitrates for adaptive streaming applications: Apple HLS and Microsoft Smooth Streaming formats are supported. Simultaneously send the encoded streams to multiple destinations
  • AAC-LC, HE-AAC, HE-AAC v2, xHE-AAC, and MP3 stream encoding from 16 kbps to 320 kbps depending on codec used xHE-AAC for low-bitrate streaming
  • Processing, watermarking, or encoding can be used independently if desired
  • Supported server platforms include ICEcast, SHOUTcast, SHOUTcast v2, Adobe Media Server, and Wowza, as well as Triton Digital, LimeLight, Akamai, and other popular streaming services
  • Includes support for RTP and RTP multicast streams
  • Stream Synchronization: separate encoder instances (running on different units and even at different locations) are able to synchronize so that bitstreams generated by all instances are identical. Enables  redundant streaming deployment
  • HTML5 web-based remote control for administration
  • SNMP support allows direct monitoring from your SNMP management system
  • Integrates into your workflow: REST API allows customized  control by 3rd party applications to start/stop streams, switch audio sources, or insert audio content from files
  • When using optional Omnia.9 processing, you get dedicated IP remote control software with test instrumentation, including  RTA, FFT, oscilloscopes, and loudness metering.
  • Flexible Metadata ingest allows R/20 to accept metadata from multiple play-out systems and lets broadcasters tweak the fields they want to present to listeners
  • Facilitates delivery of metadata to your streaming provider: sophisticated software routines enable them to handle ad replacement, metadata insertion, and stream switching for programming blackouts.
  • Supports Nielsen and Kantar Watermarking
  • Dual power supplies and dual gigabit Ethernet ports for reliable, 24/7 operation.

Specificatoisn:

Audio I/O
  • Livewire+AES67 AoIP and AES/EBU audio I/O
  • Supports AES/EBU input at up to 24 bits, 192 kHz
  • Supports direct input from RTP streams
Power Requirements Dual power supplies, each rated at 100-264 VAC, 50/60Hz, auto-sensing, 100W max total
Dimensions and Weight One rack unit— 1.75”H x 19”W x 15.5”D (44 x 483 x 394 mm)
  Net weight: 9 lbs (4 kg); shipping: 12 lbs (5.4 kg) approximate
Environmental Fan cooled
  Operating: 0 to 50 degrees C
  Non-operating: –20 to 70 degrees C
Regulatory

North America: FCC and CE tested and compliant. Power supply is UL-approved.

Europe: Complies with the European Union Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/EC, 2005/747/EC (RoHS Directive), and WEEE.
Warranty For the latest Telos Alliance warranty, visit: telosalliance.com/warranty
