TIELINE TLB6100 BRIDGE-IT II - SINGLE STEREO OR DUAL MONO IP AUDIO CODEC, WITH DUAL LAN PORTS FOR STREAMING OVER THE PUBLIC INTERNET, AS WELL AS CONNECTING TO YOUR AOIP NETWORK 0126

SKU
TIE-BRIDGE-IT-II
MFR#
TLB6100
$1,895.00
Availability: Out of stock

TIELINE TLB6100 BRIDGE-IT II - SINGLE STEREO OR DUAL MONO IP AUDIO CODEC, WITH DUAL LAN PORTS FOR STREAMING OVER THE PUBLIC INTERNET, AS WELL AS CONNECTING TO YOUR AOIP NETWORK

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

Experience unparalleled audio quality and versatility with Bridge-IT II and Bridge-IT XTRA II audio codecs as they deliver flexible, low cost broadcasting solutions over IP networks. These codecs are designed to meet the demands of modern broadcasting and deliver affordable, reliable, and high quality IP broadcasting with:

  • -Exceptional audio quality with rock solid IP streaming reliability.
  • -Seamless integration throughout the latest IP network infrastructure.
  • -Multiple layers of redundancy.
  • -Simple configuration and control.

Unlike some low cost alternatives, Tieline’s Bridge-IT II and XTRA II codecs have a front panel screen for simple, user-friendly operation. Smartstream PLUS redundant streaming and Fuse-IP data aggregation are included as standard to deliver rock-solid IP connections. A wide range of encoding options is available, including the AAC suite of algorithms, Opus, G.722, MPEG Layer 2, Enhanced aptX, Tieline Music and MusicPLUS.

Your Rating
Key Features
  • OLED Menu Screen
  • Analog Inputs: 2 (Ch1 mi/line level; Ch2 line level)
  • Digital AES3/AoIP Inputs: 2
  • IP Streaming: Mono, Dual Mono, Stereo
  • LAN Ports: 2 (unless 2nd port used for AoIP)
  • AoIP Ports: LAN 2 switchable to AoIP
  • USB Host Port for Cellular Data/Tethering: Yes
  • Native AoIP Protocols: AES67, ST 2110-30, Livewire+, RAVENNA
  • Power: 12VDC
  • SmartStream PLUS Redundant Streaming: Included as standard
  • Fuse-IP Data Bonding: Up to 3 IP interfaces
  • Failover Options: Connection, SD card file playback, HTTP streaming
  • Multi-unicasting / Multicasting: Yes
  • Remote Control: HTML5 Web-GUI and optional Cloud Codec Controller
  • Free technical support with comprehensive documentation
  • Free firmware updates
  • New product manufacturer warranty

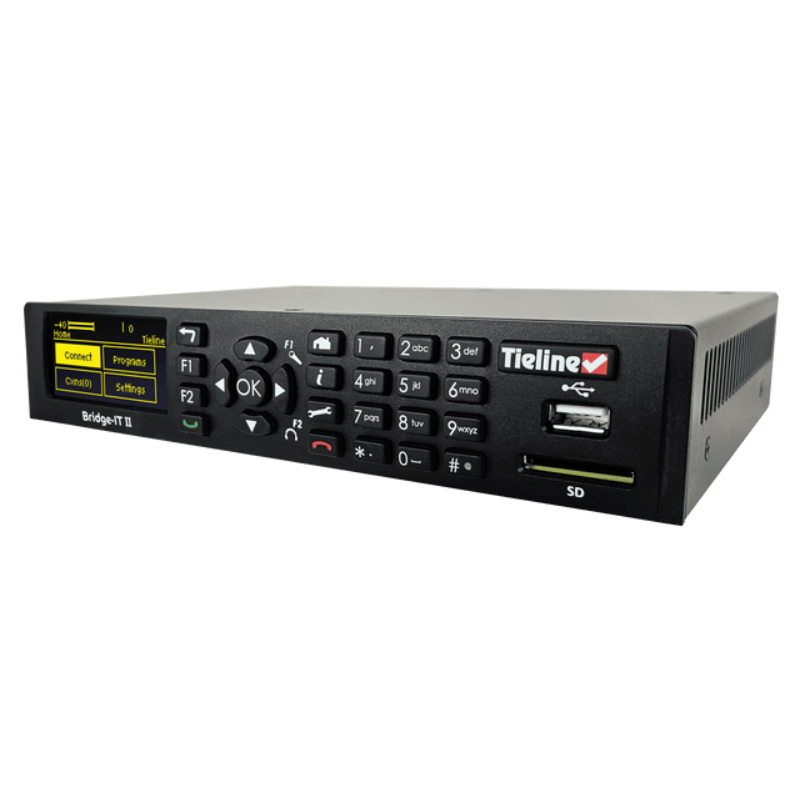

main product photo
