BLACKMAGIC DESIGN BMD-BDLKWEBPTRPRO WEB PRESENTER HD

SKU
BMD-BDLKWEBPTRPRO
MFR#
BMD-BDLKWEBPTRPRO
$615.00
Availability: Out of stock

BLACKMAGIC DESIGN BMD-BDLKWEBPTRPRO WEB PRESENTER HD

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

Add live streaming to the internet to your video production setup using the Web Presenter HD from Blackmagic Design. The Web Presenter HD is a compact desktop device that allows you to connect any SDI video input and stream it live onto the Internet using Ethernet or tethering via USB to your smartphone using a 5G or 4G connection. The SDI and HDMI monitor outputs allow you to see a wide range of live status information along with your broadcast. The USB Type-C port allows you to connect any USB video source such as a webcam or computer, so it's capable of broadcasting video and audio on any webcam-compatible platform and software such as Skype, YouTube Live, Facebook Live, Twitch, Periscope, Teams, and more on Mac, Windows, Linux, and Chrome OS systems. It supports the H.264 codec and streams via RTMP and SRT, and it can stream in resolutions up to 1080p60.

The SDI and HDMI monitor ports provide detailed status information on your feed, so you can monitor whether you are ON AIR as well as input status such as bit depth and stream quality, embedded audio input status, video and audio history, trend graphs, and video and audio meters. You can also see basic status information on the bright LCD screen on the front of the unit. There is also an SDI loop output for monitoring the original feed and sending it to a switcher or router.

Your Rating
Key Features
  • Live Stream SDI Video Source to Internet
  • Input 12G/6G/3G-SDI Video up to UHD 4K
  • SDI/HDMI Monitor Output up to 1080p60
  • Supports H.264/RTMP & SRT Streaming
  • Use USB Type-C as Webcam or 5G/4G Tether
  • SDI Loop Output, 10/100/1000 Ethernet
  • Redundant AC and DC Power Inputs
  • Mac, Win, Linux & Chromebook Compatible
  • Works with ATEM Streaming Bridge Option

Blackmagic Design Web Presenter HDSpecs

IP Video
H.264:
1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Compatible Services
Facebook Live, Livestream, Skype, Twitch, YouTube Live
Wireless
No
Wi-Fi
No
Bluetooth
Yes
Cellular Support
No
Video I/O
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output
1x HDMI Output
Other I/O
1x RJ45 Gigabit Ethernet Input/Output
1x USB-C Input
HDCP Support
Yes
Embedded Audio
SDI
Power I/O
1x XLR 4-Pin (12 VDC) Input
1x NEMA 5-15R Input
Power Consumption
Device: 100 to 240 VAC (21 W)
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Display
LCD
Dimensions
6.9 x 5.51 x 1.75" / 17.5 x 14 x 4.45 cm
Weight
1.66 lb / 0.75 kg

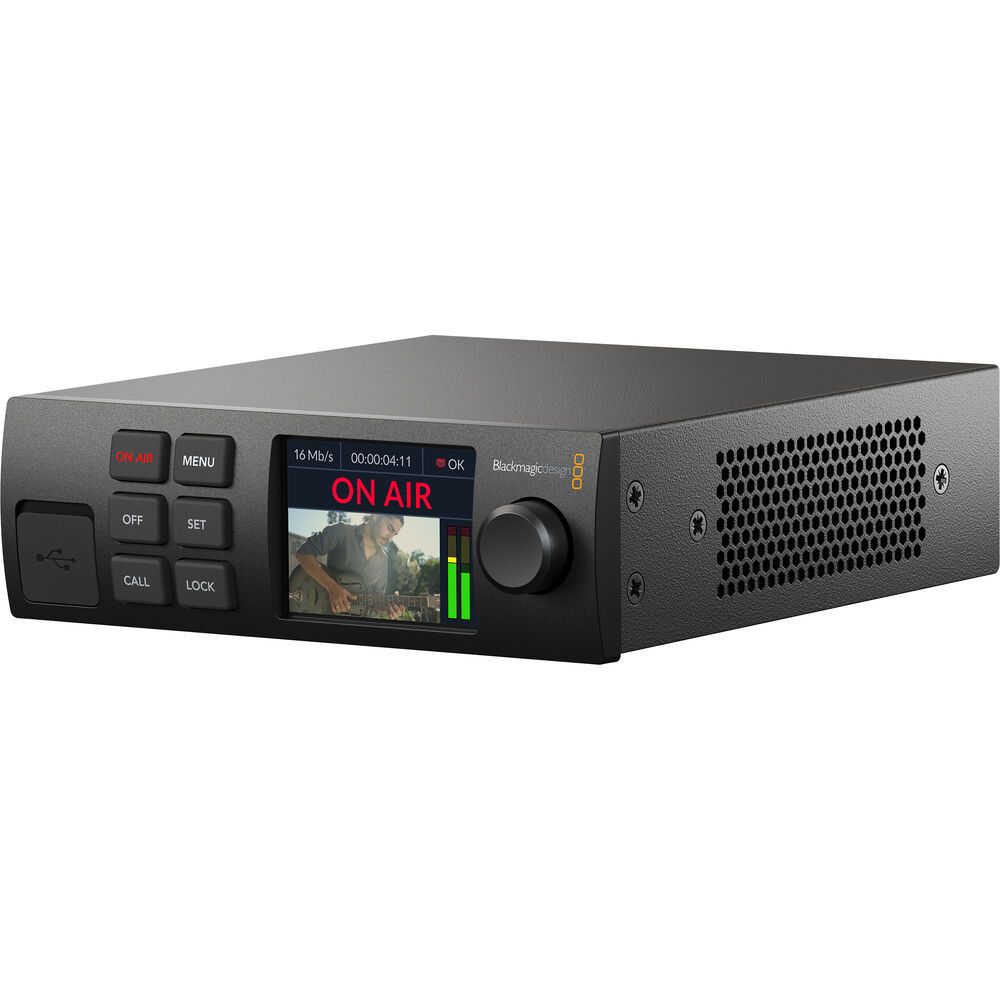

main product photo
