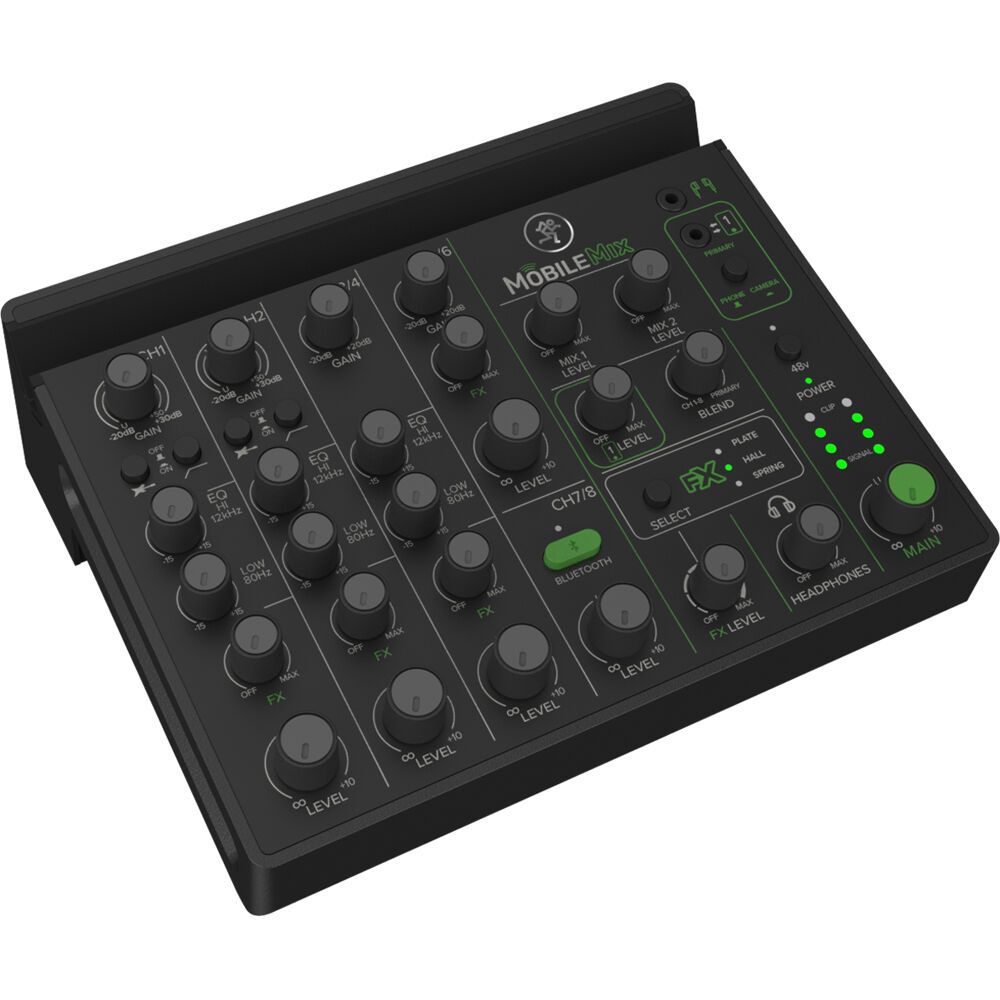

MACKIE MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND & STREAMING
SKU
MAC-MOBILEMIX
MFR#
2053830-00
$229.99
Availability:
Out of stock
MACKIE MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND & STREAMING
Providing content creators and musicians with an easy way to get quality sound from live shows and streams, the MobileMix from Mackie is an 8-channel portable mixer that delivers pro-quality audio in a compact, battery or bus-powered form factor. With plenty of I/O geared towards live mixing and a plethora of hands-on control, you can capture or stream your live performances wired or wirelessly with ease.
The MobileMix is equipped with a bidirectional Bluetooth channel that sports mix-minus for easy caller integration. Two 3.5mm TRRS input/output jacks are offered for dedicated smartphone or camera connections. You also get two individually adjustable 1/4" Mix outputs for sending custom mixes to headphones, plus a front-panel 3.5mm headphone output. The XLR-1/4" combo mic/line inputs with phantom power let you handle everything from high-quality condenser mics to DI instruments, and you also have a stereo line input channel and variable FX send options. The MobileMix not only sports a highly portable, low-profile design, it also features a dock for smart devices like phones and tablets, making it easier to integrate your mobile setup into one convenient system.
Key Features
- For Live Sound, Camera Audio & Streaming
- Ultracompact Design
- 2 XLR-1/4" Combo Inputs, Phantom Power
- Channel EQ and Variable FX Send
- Blend Knob for Overdubs
- Two Stereo Line Channels, Dual Mix Outs
- USB-C or Internal Battery Power
- Bidirectional BT Channel with Mix-Minus
- Dedicated Smartphone/Camera TRRS Output
- Phone/Tablet Dock
Mackie MobileMixSpecs
| Max I/O Capacity |
8x Input / 8x Output
|
| Number of Analog Input Channels |
8 (2 Mono / 3 Stereo)
|
| Number of Mic Preamps |
2
|
| Analog Output Channels |
1x Stereo Master Output
3x Stereo Headphone Output 1x Stereo Aux Send Output 1x Stereo Direct Output |
| Mix Routing |
1x Stereo Main Mix
1x Stereo FX Bus per Input Channel 3x Stereo Bus/Subgroup |
| Faders & Level Adjustment |
19x Channel Knob
3x Master Knob 2x Bus/Subgroup Knob 1x FX Knob |
| Meters |
1x 8-Segment LED
|
| Gain/Trim Range |
Line/Mic Input:
-20 dB to +30 dB Stereo Line Input: -20 dB to +20 dB |
| Input Polarity |
Fixed
|
| Dynamic Processing |
No
|
| Sidechain Filters |
No
|
| EQ |
Input Channels:
2-Band EQ/Shelving |
| EQ Parameters |
High: at 12 kHz (Shelving)
Low: at 80 Hz (Shelving) |
| Graphic EQ |
No
|
| Filters |
Mono Channels:
2x High-Pass |
| Solo/Mute |
No
|
| Channel Output/Source Monitoring |
AFL, Post-Preamp
|
| Built-In Effects |
3x Stereo Reverb
|
| Analog Inputs |
2x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input (Pre-Fader, Pre-EQ)
2x 1/4" Line Input (1 Stereo Pair, Pre-Fader, Pre-EQ) 1x 1/8" / 3.5 mm TRRS Stereo Line Input (Pre-Fader, Pre-EQ) |
| Analog Outputs |
2x 1/4" Mix Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Stereo Headphone Output (Post-Fader) 1x 1/8" / 3.5 mm TRS Stereo Headphone Output (Post-Fader) 1x 1/8" / 3.5 mm TRS Stereo Line/Direct Output (Pre-Fader) |
| Phantom Power |
+48 V, Selectable On/Off (on 2 Channels)
|
| Digital I/O |
No
|
| MIDI I/O |
No
|
| USB I/O |
1x USB-C (Device Charging)
|
| Wireless |
Bluetooth
*Built-In |
| Mobile App Compatible |
No
|
| OS Compatibility |
No
|
