4X4 STEREO AUDIO MATRIX SWITCHER, 16 GPI’S, 4 OC’S, 2 RELAYS, AND SILENCE SENSE. FRONT PANEL, RS232 & GPIO CONTROL
SKU
BT-ACS4.4-G2
$889.00
Availability:
In stock

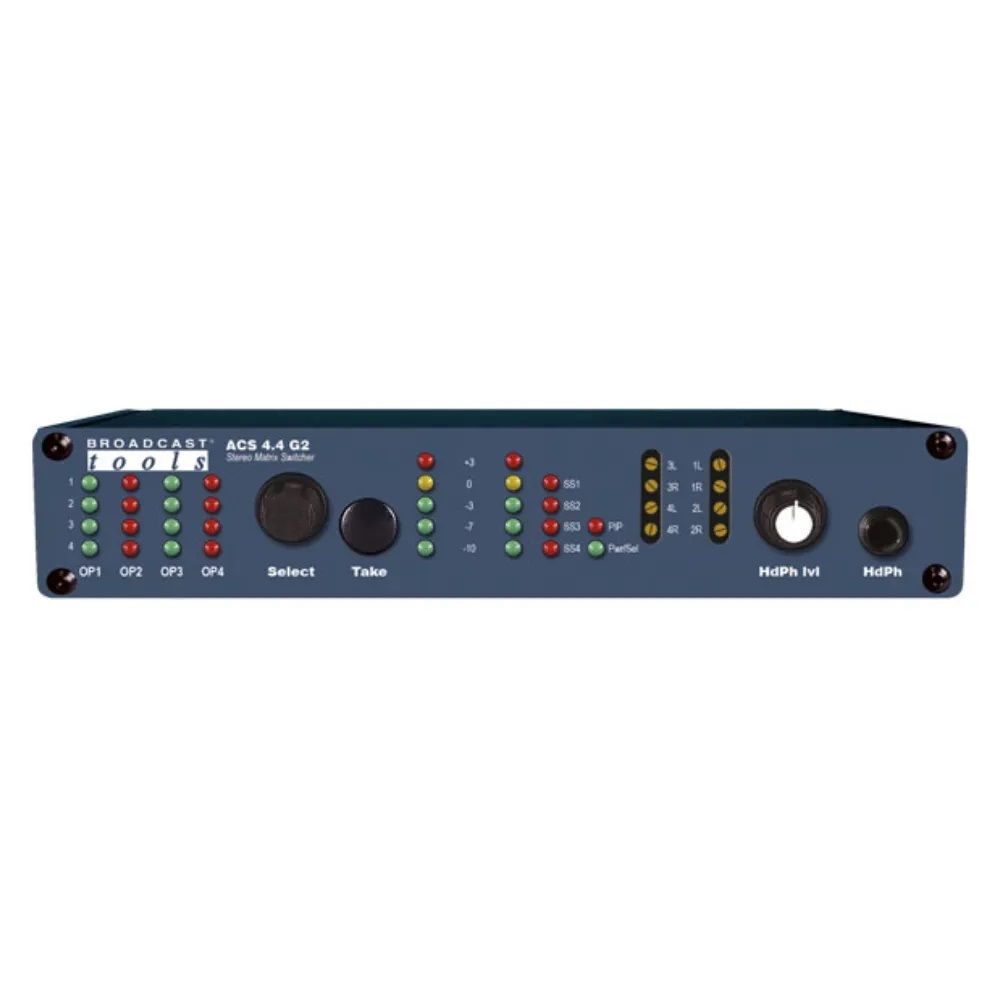

4X4 STEREO AUDIO MATRIX SWITCHER, 16 GPI’S, 4 OC’S, 2 RELAYS, AND SILENCE SENSE. FRONT PANEL, RS232 & GPIO CONTROL
4 Stereo Inputs/Outputs, Matrix Switching Capabilities Allows for Flexible Assignment to Any Input to Any Output, Multi-Drop RS-232 Serial Port Connectivity, USB or Ethernet Connection Options, 16 Input PIP Port, 3 Auto-Switching Modes, Internal Silence Sensors, Go-To Solution for Efficient and Reliable Audio Switching
Features
- Balanced Analog Stereo Matrix Audio Switcher 4x4
- Front Panel Rotary Encoder and "TAKE" Button for Channel Selection
- 16 Input PIP Port with Front Panel LED Indicator
- RS-232 Serial Port with USB and Ethernet Options
- Three Audio Switching Modes: Interlock, Overlap, Mix
- Internal Silence Sensors with LED Indicators and Alarm Outputs
- Stereo LED VU Meters and Headphone Output on Front Panel
- Configurable Power-Up Selection for Inputs and Outputs
- Four Open Collector Outputs for Status or Control
- Two SPDT Relay Outputs with Selectable Functions
- Input Level Trimmers and Output Level Controls
- Electronically Balanced Stereo Inputs and Outputs
- Configuration via Internal Dip-Switches
- Cascading Capability for Audio Input Expansion
- RJ45 Audio Jacks and Euro-Block Screw Terminals for Connections
- RFI Proofed Design
- Includes PS-1515 +/-15VDC Universal Desktop Power Supply
- RA-1 Rack Shelf Compatibility for Mounting Options
