Need to feed a stack of stuff from a single source? You could try the daisy-chain, but you may end up with a ground loop, signal degradation or worse. What you really need to get a signal to multiple destinations is a broadcast-grade distribution amplifier.

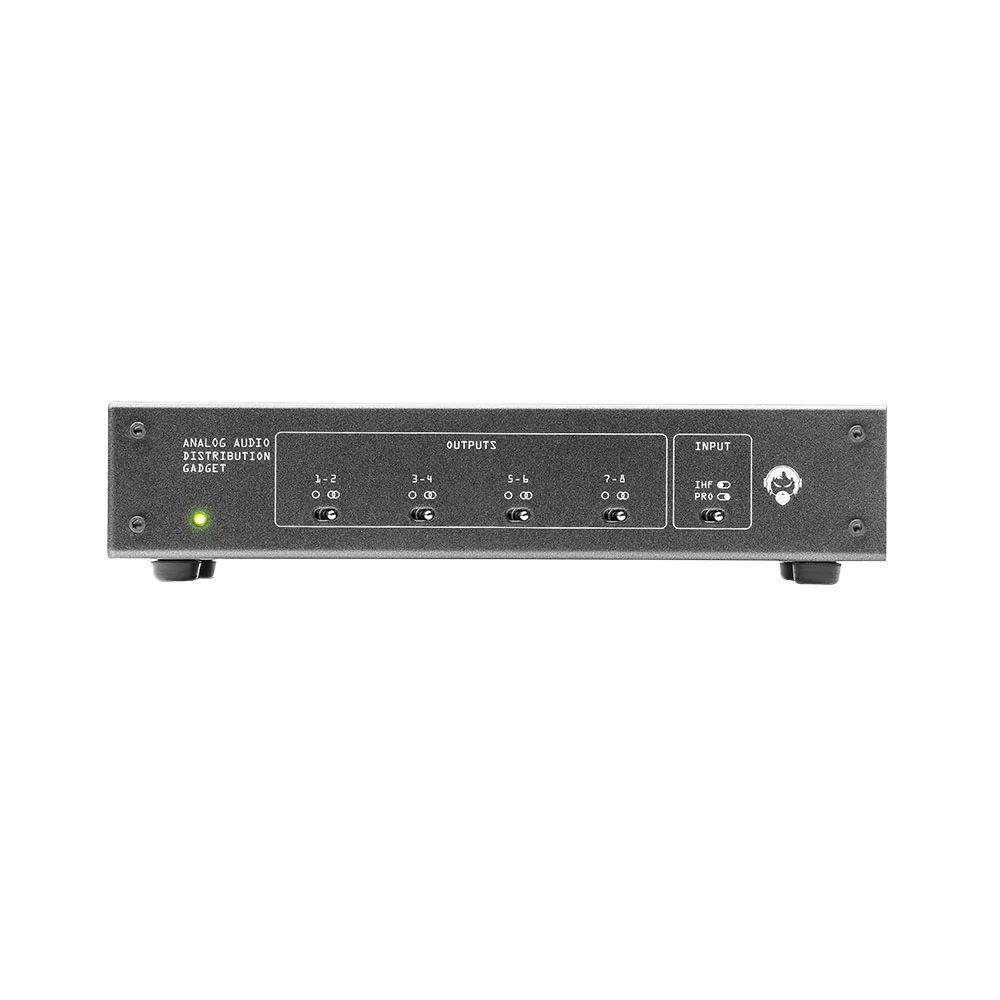

The Distribution Gadget allows a single source to drive multiple destinations. This is especially useful in broadcasting for connecting the studio output to an air chain, internet encoder, recording device, etc. The Distribution Gadget eliminates the ground loops and signal loss that often occur when directly attaching multiple loads to a source.
Specs
Nominal Output Level | +4dBu (balanced) |
Normal Output Level | -10dBV v(unbalanced) |
Frequency Response | ±0.2dB, 20 Hz - 20kHz |
THD+N | ≤0.004%, 20 Hz - 20kHz |
Noise | ≤90dBu, 20Hz - 20kHz (locked) |
Headroom | ≥20dBu |
Maximum Output Level | +26dBu (+24dBm @ 600Ω load) |
Input Impedance | 20kΩ (pro inputs) |
Output Impedance | 100Ω balanced |
Crosstalk | ≤-75dB (10kHz) |
CMRR | ≥70dB (20Hz to 20 kHz) |
Power | 115VAC 60 Hz, NEMA 5-15P power plug |
Power Consumption | 8VA |
Operating Temperature | 0° to 40° C (32° to 104° F) |
Storage Temperature | -20° to 45° C (-4° to 113° F) |
Relative Humidity | 0% to 90% non-condensing |
Cooling | Venting Chassis (fanless) |
Width x depth x height | 8.5 x 6.25 x 1.70 in., 21.6 x 16 x 4.32 cm. |
Weight | 3.5 pounds, 1.6 kilograms |
