ARRAKIS DARC-SURFACE 8 CONSOLE. DARC VIRTUL SOFTWARE & DANTE AUDIO SOURCES REQUIRED
SKU
ARR-DARC-SURFACE-8
MFR#
DARC-SURFACE 8
$1,999.00
Availability:
Out of stock
ARRAKIS DARC-SURFACE 8 CONSOLE. DARC VIRTUL SOFTWARE & DANTE AUDIO SOURCES REQUIRED

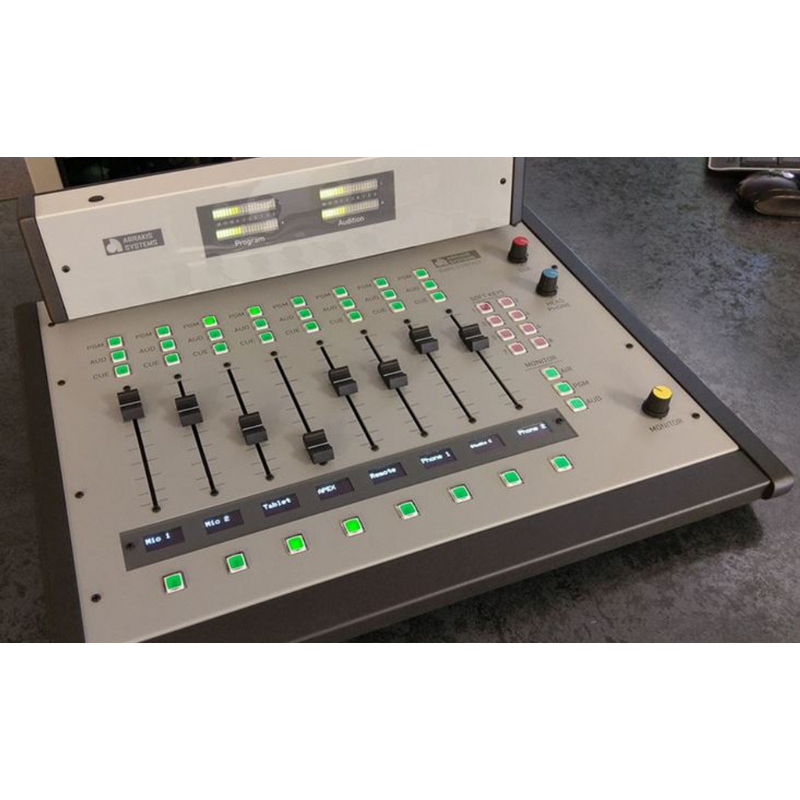

The DARC Surface is a Digital AoIP console. Being digital means that your audio is handled digitally, and there is no signal degradation within the board. It is protected from RF, and is very flexible. Being AoIP means that the DARC Surface has access to any audio input or output on your Dante local network. Quickly select your inputs and outputs via the DARC Virtual Console software. OR swap assignments via the 4 programmable buttons on the DARC Surface. Being Windows based, you can also use any remote control app to control your board anywhere in the world with an internet connection. The DARC Surface is the ultimate in power, flexibility and value.
Features:
- Microphone: (Simple IP Required)
- 1 to 16 Mic channels. Your choice, your configuration. Simply connect your mics to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 mic channels. Channels are software assignable.
- Mic Pre Needed. Simple IP are all high level stereo inputs. Mic channels require an external mic preamp with mono to stereo
- Mic Monitor Mute. Mic channels will automatically mute the monitor output when activated.
- 1 to 16 Inputs. Software assignable line inputs. Simply connect your audio source outputs to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 Stereo Line inputs.
- nalog or Digital. Choose to use either analog RJ45 inputs with the Simple-IP-8A or Digital XLR AES3 inputs with the SImple-IP-8D.
- +4dBu or -10dBu analog inputs. Simple-IP-8A is jumper selectable between balanced +4dBu and unbalanced -10dBu inputs.
- LED illuminated switches.
- Phone channel. Within the DARC software, choose to assign one of your I/O on the Simple IP to a phone mix-minus to connect to your phone hybrid.
- Mix-Minus. Once a channel has been assigned as a Phone channel in the software, it will configure to audio to work with your phone hybrid.
- Talkback. With the Phone channel setup, the first mic channel will have a Talkback function that allows you to talk to the caller off line.
- 2 Logic Output. As an optional add-on, add logic outputs to the DARC family. This USB logic output connects to your PC, and is controlled via the DARC Virtual Console software. This is programmable to turn on On-Air Lights, trigger phone hybrids, etc... This option gives you 2 relay outputs.
- 8 Logic Output. 2 outputs not enough? Get the 8 logic output USB control instead.
- 2 Output Buses: Program - Audition - Monitor - Cue - Headphone
- PGM, AUD. DARC can assign output control to any output on your Dante network. This may be one of our Simple IP units, which has 4 stereo outputs per box.
- Monitor, Cue & Headphone outputs. Utilize the Cue function built in to the DARC software to play audio off-air through your monitor, cue or headphones. Monitor, Cue and Headphones all connect to your Simple IP unit.
