AUDIOSCIENCE ASI1432 8 ANALOG IN MODULE
SKU
ASI1432
MFR#
ASI1432
$714.00
Availability:
Out of stock

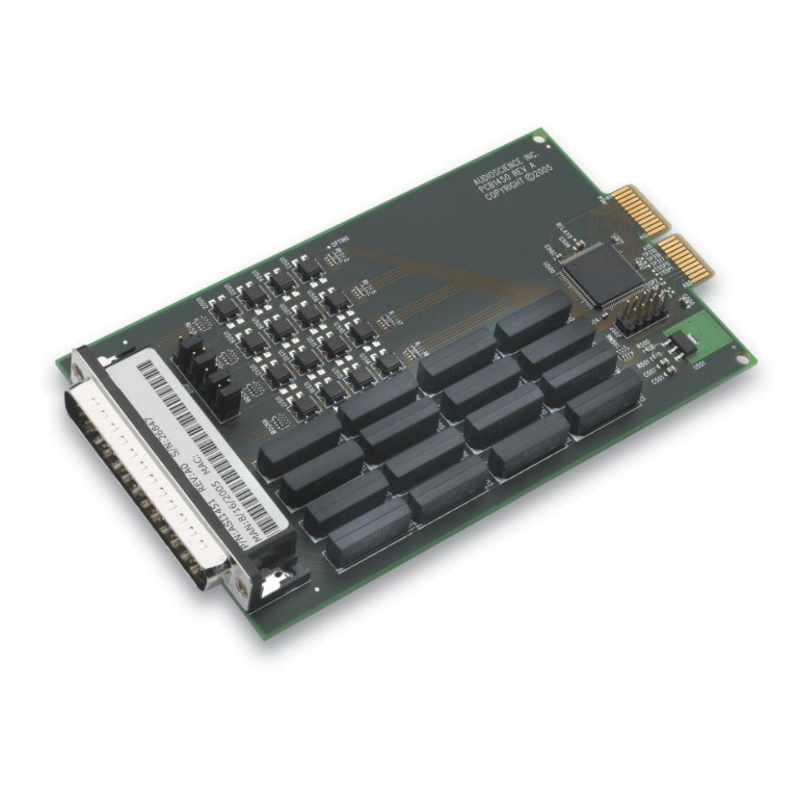

AUDIOSCIENCE ASI1432 8 ANALOG IN MODULE
The ASI1432 is an analog input module intended for use in the Hono AVB/Cobranet Custom Interfaces. It contains eight inputs and outputs that operate at 48kHz (CobraNet) and 48/96kHz (AVB) sample rates. Up to four ASI1432 modules may be used in one unit. AudioScience’s CobraNet implementation, based on the CobraNet chip used, allows for up to 16 inputs and outputs, out of a possible 32, to be used at any given time. AVB units may use all 32 possible channels.
Features
- Eight inputs
- 24bit analog-to-digital converters:105dB SNR and 0.0015% THD+N
- -10 to +24dBu software controlled input level
- Interchangeable Module Connectors with choice of Terminal Block, StudioHub+TM RJ-45, 50pin Centronics connector (compatible with AudioScience sound cards) or ¼ “ TRS
- Up to four modules can be used in one Hono Custom
