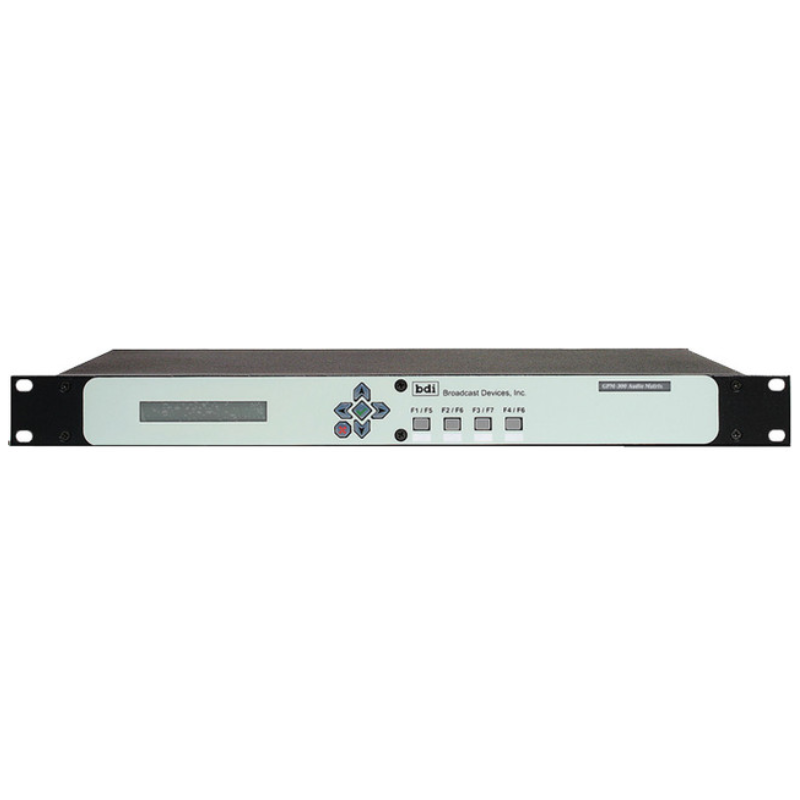

BROADCAST DEVICES ATB-300-9 AUDIO TOOLBOX AES SYNCHRONOUS AUDIO SWITCHER WITH INTEGRATED SILENCE SENSOR 4 COMPOSITE I/O
SKU
BDI-ATB-300-9
MFR#
ATB-300-9
$3,295.00
Availability:
Out of stock
BROADCAST DEVICES ATB-300-9 AUDIO TOOLBOX AES SYNCHRONOUS AUDIO SWITCHER WITH INTEGRATED SILENCE SENSOR 4 COMPOSITE I/O
The ATB-300 Audio Toolbox from BDI is a rack mounted solution to switching and routing in the digital or analog domain. The ATB-300 can be ordered in eight different configurations. The basic configuration is the ATB-300-1 that accepts four AES3 inputs, that can be switched and routed to four AES3 outputs. If analog input is required in addition to AES3, the ATB-300-2 has four analog balanced stereo inputs in addition to the four AES3 inputs. The ATB-300-3 has AES3 I/O and analog output, if AES3 and analog I/0 are required. The ATB-300-4 is analog only L/R I/O and the ATB-300-5 provides four AES3 I/O and four balanced stereo I/O.
Features:
- Supports up to 8 inputs and outputs, configurable as all analog, all AES3, or a mix of both
- Composite FM stereo I/O module with 4 composite outputs and AES3 conversion
- Programmable silence detection with customizable threshold, delay, and auto-revert settings
- Priority-based silence switching with user-defined channel sequencing
- Sample rate conversion on all AES3 inputs for seamless digital compatibility
- Synchronous AES3 switching for silent, artifact-free transitions
- 24-bit resolution throughout for high-fidelity audio quality
- Tascam™ Standard Interface for expanded connectivity
- Ethernet control with SNMPv2 and BDI Stack GUI for Windows and Android
- RS232/485 compatible for integration with automation systems
