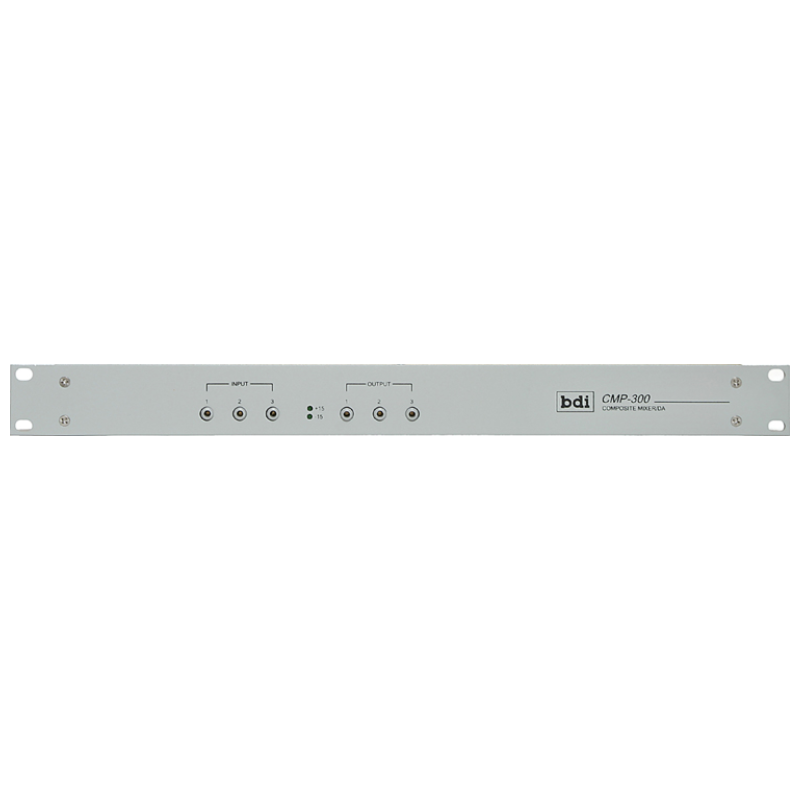

BROADCAST DEVICES CMP-300 COMPOSITE MIXER/ DISTRIBUTION
The CMP-300 mixes up to three inputs and distributes them to up to three exciters. The unit is perfect for combining FM stereo base band, SCA and RBDS signals together. The combined output is fed to a DA for application to up to three exciters. Combine and save as only one stereo, SCA and RBDS generator can feed multiple exciters. Wide band and DC coupled throughout means excellent stereo SCA and RBDS performance. Combines up to three sources and distributes the mixed output to up to three outputs for cost-effective distribution of FM stereo composite, SCA and RBDS data signals.
Features:
- Inputs: 3-Balanced or unbalanced 10K input impedance
- Outputs: 3- Unbalanced 50 ohm
- Maximum Output Level: 10 V Peak to Peak into 50 Ohm load all outputs
- Frequency Response: +/- 0.1 dB from 20 Hz. to 100 KHz.
- Total Harmonic Distortion: Less than 0.02 % @ 400 Hz.
- Signal to Noise Ratio: 80 dB or greater referenced to 3.5 V P to P Output
- Power Requirements: 120/240 VAC @0.25A. 50-60 Hertz.
- Physical Dimensions: 19” W X 10” D X 1.75”H Standard EIA 1 R.U.
- Environmental: 0 - 60 degrees C. non condensing atmosphere
