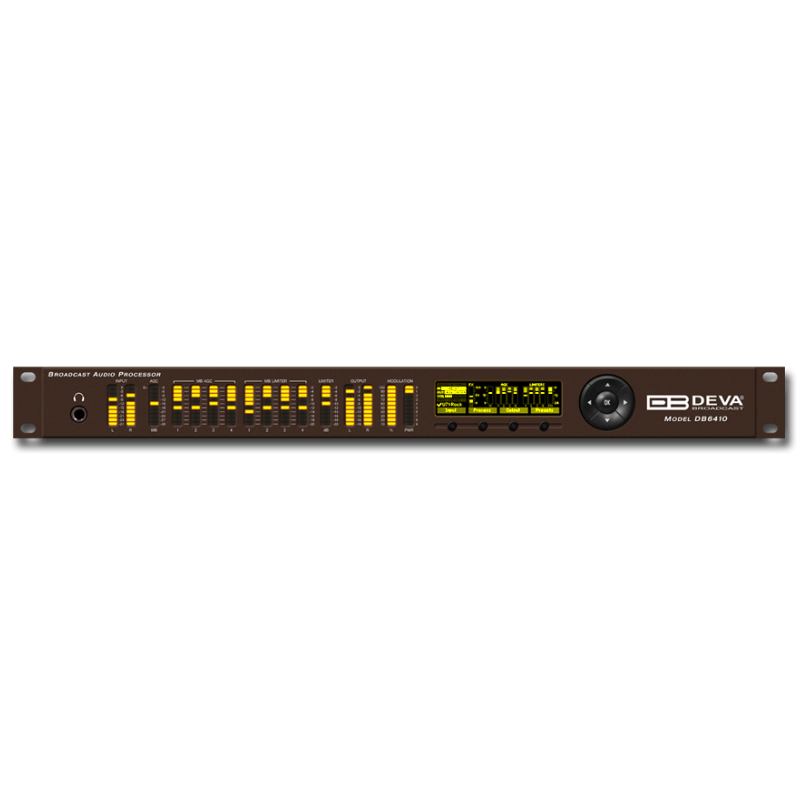

DEVA DB6410 - ADVANCED FM & DIGITAL RADIO, AES67 COMPATIBLE 4-BAND AUDIO PROCESSOR 0526
SKU
DEVDB6410
MFR#
DB6410
was
$3,135.00
Special Price
$2,979.00
Availability:
Out of stock
DB6410 - ADVANCED FM & DIGITAL RADIO, AES67 COMPATIBLE 4-BAND AUDIO PROCESSOR
Leveraging years of top-level broadcasting experience and the undeniable expertise of our engineering team, we proudly introduce the DB6410 FM and Digital Radio 4-Band Audio Processor. Support for AES67 Audio Sources: The DB6410 fully supports AES67 audio sources, making it highly versatile and capable of seamless integration into modern audio environments.
This DSP-based Stereo Encoder ensures precise MPX signals with advanced peak control and two independently configurable composite MPX outputs. The DB6410 delivers impeccable audio clarity regardless of the source material. Its comprehensive processing architecture includes Wideband AGC with “Intelligent Gating,” 4-band Parametric EQ, Advanced Bass and Treble Controls, 4-Band High-Quality Sound Processor with Fidelity Control and Sound Impact, 4-Band Limiter, FM Limiter with advanced distortion and pre-emphasis control, and HD Lookahead Limiter.
Features:
- AES67 and Dante Audio Interfaces
- Ultra low latency, all-digital DSP based design
- Advanced Wide Band AGC
- 4-Band Parametric EQ
- Advanced Bass & Treble Controls
- 4-Band Limiter
- FM Controlled distortion Limiter
- 4-Band Dynamic Processor with Fidelity and Sound Impact System
- HD Lookahead Limiter
- Extensive set of factory presets and several customizable user presets
- L/R Analog inputs and outputs and two independent Composite MPX outputs.
- Integrated digital stereo generator with advanced peak control
- Built-in web server for remote control access via TCP/IP connection
- Software Control (over local network or the Internet using any Windows® PC)
- Built in DSP-based RDS/RBDS encoder
- Bright, wide view angle OLED and full-time LED meters
- Easy setup and control via the front panel
- Remotely upgradable firmware to ensure improved operation
- Headphone output with front panel level control
- Intelligent Silence Detector
- Variety of Audio Sources
- Multi-format IP Audio Player
- Built-in MP3 Player
- SD Card for Audio Backup Storage
- Externally synchronized output sample rate
- Tight peak control at all outputs
- Fallback function in case of Audio Loss
- EMI-suppressed XLR connectors
- Bypass and Test tone Mode
- Embedded SNMP agent permitting full device management
- Easy to use WEB interface
- Apple and Android devices support
- SNTP for automatic synchronization of the built-in clock
- Notifications on input/preset change via E-mail and SNMP
- Protected access to the device settings
- Professional AES/EBU Digital audio inputs
- Level Adjustable, Balanced Analog and Digital Audio Outputs
- LAN port for full TCP/IP remote control and monitoring
- USB communication interface for local connectivity
- Easy Installation and Setup
- Wide operating voltage range: 100-240V AC
- 19” Professional Case for high RF immunity
DEV-DB6410:
| Connectors | Main - Two XLR, EMI suppressed, electronically balanced; Auxiliary - DB9, EMI suppressed, electronically balanced |
| Configuration | Stereo |
| Input level (0 dBFS) | Software selectable -8 dBu to +24 dBu peak |
| Impedance | Jumper selectable 600Ω / >10kΩ |
| A/D Conversion | 24 bit; 48 kHz sample rate; Differential inputs |
| Connectors | Two XLR, EMI suppressed, electronically balanced |
| Configuration | Stereo. Software selectable flat, pre-emphasized or de-emphasized |
| Output Level( 0 dBFS) | Software selectable -12 dBu to +24 dBu peak into >= 600Ω load |
| Source Impedance | 20Ω |
| Load Impedance | >= 600Ω, balanced/unbalanced |
| Signal-to-Noise | >= 110 dB unweighted (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to +12 dBu output level) |
| Distortion | <= 0.01 THDN (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to +12 dBu output level) |
| D/A Conversion | 24 bit; 192 kHz sample rate; Differential outputs |
| Connectors | Main - XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance; Auxiliary - DB9, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, up to 24 bit resolution |
| Sampling Rate | 22 kHz to 192 kHz |
| Input Gain | -20 dB to 20 dB, referenced to 0 dBFS, software selectable |
| Connector | XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, 24 bit resolution. Software selectable flat, pre-emphasized or de-emphasized |
| Sample Rate | Internal - 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz. Externally synced to Main AES3 digital input at 32 to 192 kHz. Software selectable. |
| Word Length | 24 bit |
| Output Reference Level | -20 to 0 dBFS software selectable |
| Live Protocol (AES67) | Ethernet 100Mbps; Compatible AES67, Ravenna, Livewire; 48kHz, 24 bits, stereo, >= 12 samples/packet (250µs), delay 1ms |
| Transport protocol (IP) | Ethernet 100Mbps; High quality stereo codec (32 to 200kbps) or linear; 2.5s compensation buffer |
| Connectors | BNC unbalanced, chasis floating, EMI suppressed |
| Configuration | Two outputs. Independent level control. MPX+MPX, MPX+PILOT or BYPASS mode |
| Source impedance | 75Ω |
| Load impedance | 50Ω or greater |
| Output level | -18dBu to +18dBu |
| Pilot level | 0% to 15% |
| D/A conversion | 24 bit, differential |
| SNR | >80 dB (Bypass mode, flat, 20Hz - 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| THD | < 0.01% (Bypass mode, flat, 20Hz - 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| Stereo Separation | >60dB |
| Crosstalk | >70dB |
| Pilot protection | >90dB relative to 9% pilot injection, ±250 Hz |
| 38 kHz suppression | >80dB (referenced to 100% modulation) |
| Configuration | TCP/IP via USB or Ethernet interface |
| USB Connector | USB type B connector |
| Ethernet Connector | Female RJ45 shielded connector for 10/100 Mbps CAT5 ethernet networks |
| Connector | DB-9 male |
| Configuration | Eight LED optocoupler, current limited cathode inputs. Anodes are connected to VCC internally. |
| Control | Selects corresponding user preset if connected to GND |
| Voltage | 100-240 VAC, 50-60 Hz |
| Power Consumption | 12VA |
| Connector | IEC320, Fused and EMI-suppressed |
| Operating Temperature | 0° to 50°C / 32° to 122°F |
| Humidity | 0–95% RH, non-condensing |
| Dimensions (W;H;D) | 483 x 44 x 180 mm |
| Shipping Weight | 540 x 115 x 300 mm / 2.465 kg |
| HS Code | 8517620000 |
