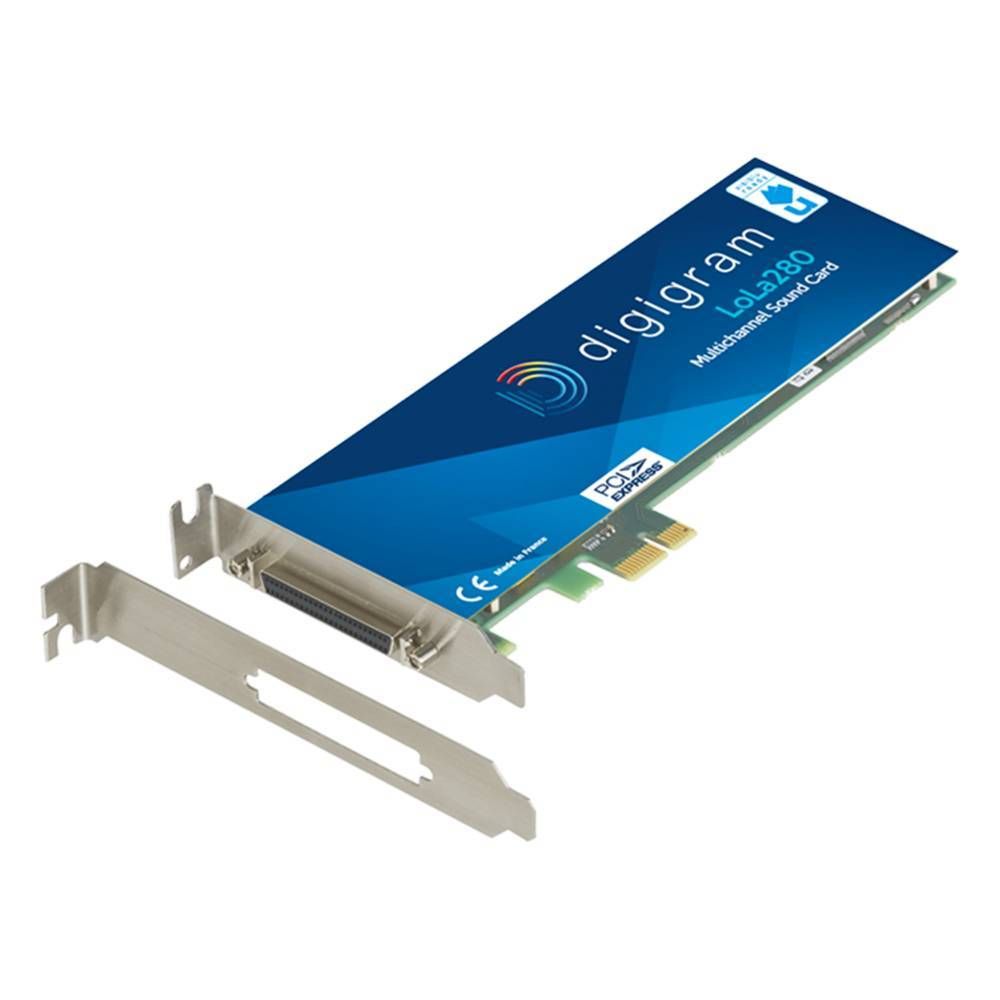

DIGIGRAM LOLA280. 8 BALANCED ANALOG INPUTS / 2 BALANCED ANALOG OUTPUTS / HEADPHONES OUTPUT / WORD CL

Features

• Developed for professional audio recording and logging applications
• Low profile PCI Express
• Very low latency sound card
• Eight balanced analog audio inputs
• Hardware digital mixer
• Supported under under Windows and Linux
• Multichannel linear PCM sound card
• Low profile PCI Express
• Eight balanced analog inputs and two balanced analog outputs; +24 dBu max level
• 8 recording channels with pre-mixing of the input signals
• 8 playback channels mixed to the two outputs
• Mixing and monitoring of the inputs to the two outputs
• AGC on all the input
• Adjustable input and output analog and digital gains
• Support for Linux (Alsa driver) and Windows 32-bit and 64-bit (WDM Kernel streaming, DirectSound, Wasapi, ASIO)
• Breakout cable for audio connectivity

Specifications

SUPPORTED OS / ENVIRONMENTS

Windows 10 (32-bit and 64 bits)
Windows Server 2012 (32-bit and 64 bits)
Linux

Drivers for Windows : WDM KS, WASAPI, DirectSound, ASIO

Drivers for Linux: Alsa

CONFIGURATION

Bus/Format: PCI EXPRESS TM (PCIe ® ) x1 (compatible x2, x4, x8, x16, x32)

Size: 168 mm x 69 mm x 20 mm

Power requirements (+3.3 V / +12 V): 1,2 A / 0,22 A

Operating: temp / humidity (non-condensing): 0°C / +50°C • 5% / 90%

Storage: temp / humidity (non-condensing): -5°C / +70°C • 0% / 95%

CONNECTORS

External connector: 50 pin SCSI

Sampling frequencies available: Programmable from 22,05 to 192 kHz

A/D and D/A converter resolution: 24 bits

Supported audio formats: PCM (16, 24, 32 bits, and 32 bits Float)

AUDIO I/OS

INPUTS

Analog line inputs (mono): 8 balanced

Maximum input level/impedance: +24 dBu / > 10 kOhms

Adjustable input gain (manager):

– analog: from –90 dB to +18 dB (max sensitivity: 0dbfs for +6dBu input signal)

– digital: from +18 dB to +36 dB

Other inputs: 1 standard Word Clock input (up to 192 kHz)

OUTPUTS

Analog line outputs (mono): 2 balanced

Maximum output level / impedance: +24 dBu / >100 ohms

Adjustable output gain (manager) analog:

from –48 dB to 0 dB. digital: from -110 dB to +12 dB

Other outputs:

• 1 standard Word Clock output (up to 192 kHz).
• Stereo headphones (20 mW in 600 ohms) on mini jack (female TRS 3,5 mm)
