DIGIGRAM VX222e PCI EXPRESS 1 STEREO BALANCED ANALOG LINE INPUT / 1 STEREO BAL. ANALOG LINE OUTPUT /

DIGIGRAM VX222e PCI EXPRESS 1 STEREO BALANCED ANALOG LINE INPUT / 1 STEREO BAL. ANALOG LINE OUTPUT /

DIGIGRAM VX442E FEATURES: 2 STEREO BALANCED ANALOG INPUTS / 2 STEREO BALANCED ANALOG OUTPUTS WITH 24

DIGIGRAM VX442E FEATURES: 2 STEREO BALANCED ANALOG INPUTS / 2 STEREO BALANCED ANALOG OUTPUTS WITH 24

DIGIGRAM VX222e AUDIO BOARD PCI EXPRESS PLUS THE FOLLOWING FEATURES:

Digigram
SKU
DIGVX222e-MIC
MFR#
VB1915A0201
$820.00
Availability: Out of stock
DIGIGRAM VX222e AUDIO BOARD PCI EXPRESS PLUS THE FOLLOWING FEATURES:
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

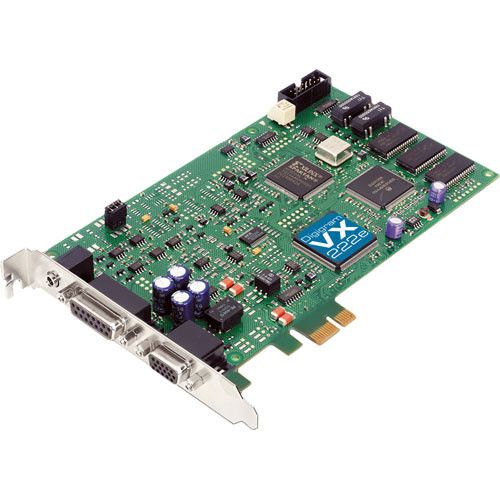

The VX222e from Digigram is a PCIe (Express) card that provides 2 channels of analog or digital audio input, while simultaneously outputting a stereo digital output or 2 mono channels of analog audio. Useful for broadcast, music postproduction, or for the theater, the card provides excellent audio performance with pristine sound quality and the ability to perform 24/7 in any demanding environment.

Synchronization options include AES/EBU input and LTC input. The card is visiblu ready (a technology based on Digigram's Network Audio Operating System) and provides low-latency, wide-area-network (WAN) encoding and processing, whether the assets are located next door or hundreds of miles away. The VX222e is the perfect solution for professional users working with software based on standard WDM DirectSound, ASIO, WAVE, or Digigram np interfaces.

Your Rating

Features:

  • 2 Inputs / 2 Outputs
  • Analog I/O
  • Digital I/O
  • 24-Bit / 192 kHz Converters
  • Windows 10, Windows Server 2016, Linux

Digigram VX222eSpecs:

Channels of I/O 2 Inputs / 2 Outputs
Built-In DSP Yes
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs No
Built-In Microphone No
High-Pass Filter No
Solo/Mute No
Analog Audio I/O 2x XLR 3-Pin Line Input (on Included Breakout Cable)
2x XLR 3-Pin Line Output (on Included Breakout Cable)
1x 1/8" / 3.5 mm TRS Headphone Output
Digital Audio I/O 1x XLR 3-Pin AES3 / S/PDIF Input
1x XLR 3-Pin AES3 / S/PDIF Output
Host Connection PCIe
Host Connection Protocol No
USB (Non-Host) No
Sync I/O 1x RCA Coaxial LTC/SMPTE Input
Network I/O No
MIDI I/O No
Expansion Slots No
Other I/O 1x DE-15/DB-15 Breakout Cable Input
2x DE-9/DB-9 GPIO In/Out
Wireless No
Frequency Response 20 Hz to 20 kHz +0/-0.3 dB (at 48 kHz)
20 Hz to 40 kHz +0/-0.4 dB (at 96 kHz)
20 Hz to 80 kHz +0/-1.1 dB (at 192 kHz)
Dynamic Range Inputs: 104 dBA
Outputs: 106 dBA
THD+N System: < -97 dB
Outputs: < -95 dB
Sample Rates Up to 192 kHz
Sample Rate Conversion No
Bit Depths 24-Bit
Sync Sources AES3, SMPTE/LTC
Clocking Internal
Media/Memory Card Slot No
OS Compatibility Windows 10 or Later
Windows Server 2016
Linux
Mobile App Compatible No
Required Hardware Available PCIe Card Slot
Power Requirements PCIe
