EVENTIDE BD600E+ BROADCAST DELAY 80 SEC. PROFANITY DELAY W PANIC MODE OR HD SYNCHRONIZATION W MICROPRECISION MODE : 20 SEC DELAY ADJUSTABLE IN 1 MS INCREMENTS, W AES I/O AND EXTENDED REMOTE CAPABILITI
SKU
EVE-BD600E+
MFR#
1189-002
$4,299.00
Availability:
Out of stock

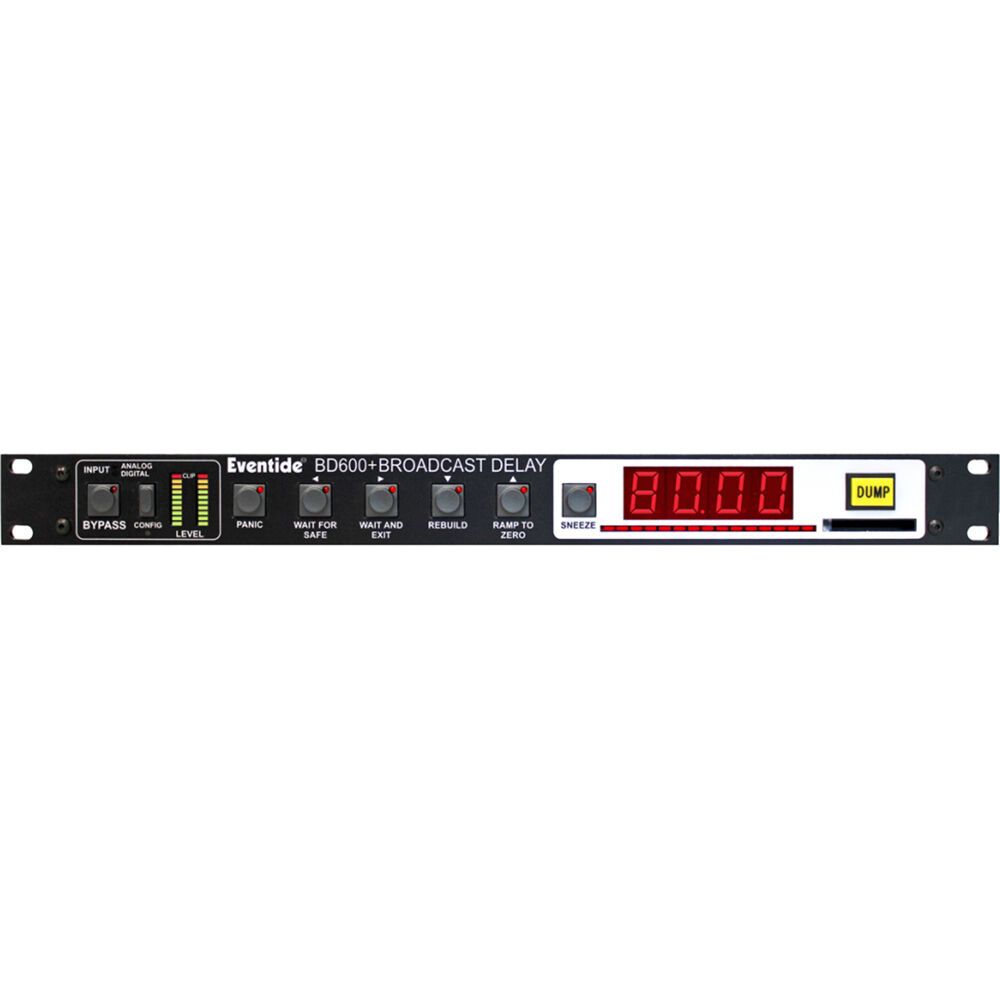

EVENTIDE BD600E+ BROADCAST DELAY 80 SEC. PROFANITY DELAY W PANIC MODE OR HD SYNCHRONIZATION W MICROPRECISION MODE : 20 SEC DELAY ADJUSTABLE IN 1 MS INCREMENTS, W AES I/O AND EXTENDED REMOTE CAPABILITI
Protect your broadcast from careless trash-talk with the BD600E+ from Eventide, an easy-to-use digital profanity delay with expanded remote capabilities that offers an exceptional 80 seconds of high-quality revenue and license-protecting delay designed to provide a seamless experience for listeners.
Key Features
- Revenue and License-Protecting Delay
- Customizable 4- to 80-Second Delay
- Half- to 10-Second Customizable Dump
- 16 Bipolar Opto-Isolated Inputs
- 16 Open-Collector Outputs
- Panic Mode and Sneeze Button
- USB Remote Control, RS-232 I/O
- Network Remote Capabilities
- 24-Bit AES/EBU Digital I/O
- 24-Bit Analog XLR I/O
Eventide BD600E+ Specs
| Compatibility |
Not Specified by Manufacturer
|
| Panel Type |
Single-Color LED
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
| USB I/O |
1 x USB-B Female Input/Output
|
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Line Input
2x XLR 3-Pin Line Output 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output |
| Media/Memory Card Slot |
Yes
|
| Impedance |
Input/Output: 20 Kilohms (Bridging)
|
| Input Level |
Full Scale Input Level: +26 dBu
|
| Output Level |
Full Scale Output Level: +65 dBu
|
| Dynamic Range |
Input: >104 dB
Output: >108 dB |
| THD+N |
<0.003 at 1 kHz, -3 dBFS
|
| Crosstalk |
< -100 dB at 20 Hz to 20 kHz, -1 dBFS
|
| Frequency Response |
Live or Bypass: 20 Hz to 20 kHz ±0.1 dB
HD Micro-Precision Delay Mode: 10 Hz to 19 kHz ±0.25 dB Broadcast Profanity Delay Mode: 10 Hz to 20 kHz ±0.1 dB (While Delay is Chaining: 10 Hz to 19 kHz ±1.5 dB) |
| Delay |
Profanity Delay Maximum Length: Set to 4, 6, 8, 12, 16, 20, 30, 40, 60, or 80 seconds
Micro Precision Fixed Delay: Set from .010 seconds to 9.999,999 seconds in Microsecond Steps |
| Remote Control |
Remote Control Inputs: RS-232 Control Input and Output, USB Remote Control
General Remote Inputs: DB-25 with 16 Bipolar Opto-isolated Inputs General Remote Outputs: DB-25 with 16 Open Collector Outputs Delayed RS-232 Input: DB-9 Delayed RS-232 Output: DB-9 |
| Flash Media Slot |
Supports Type I and Type II Compact Flash Cards for .WAV Sample Playback and Software Update
|
| Sample Rate |
48 kHz, 44.1 kHz, Wordclock, AES/EBU
2 Channels of 24-bit AES/EBU |
| Wordclock |
BNC Wordclock Input
BNC Wordclock Output |
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
40 W
|
| Mounting |
Side: 2x Rack Ears
|
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
19 x 10.5 x 1.8" / 48.3 x 26.7 x 4.5 cm
|
| Weight |
9 lb / 4.1 kg
|
