EVENTIDE H9000 EXPANDABLE 16 CHANNELS EFFECTS PROCESSOR
SKU
EVE-H9000
MFR#
1172-000
$7,999.00
Availability:
Out of stock

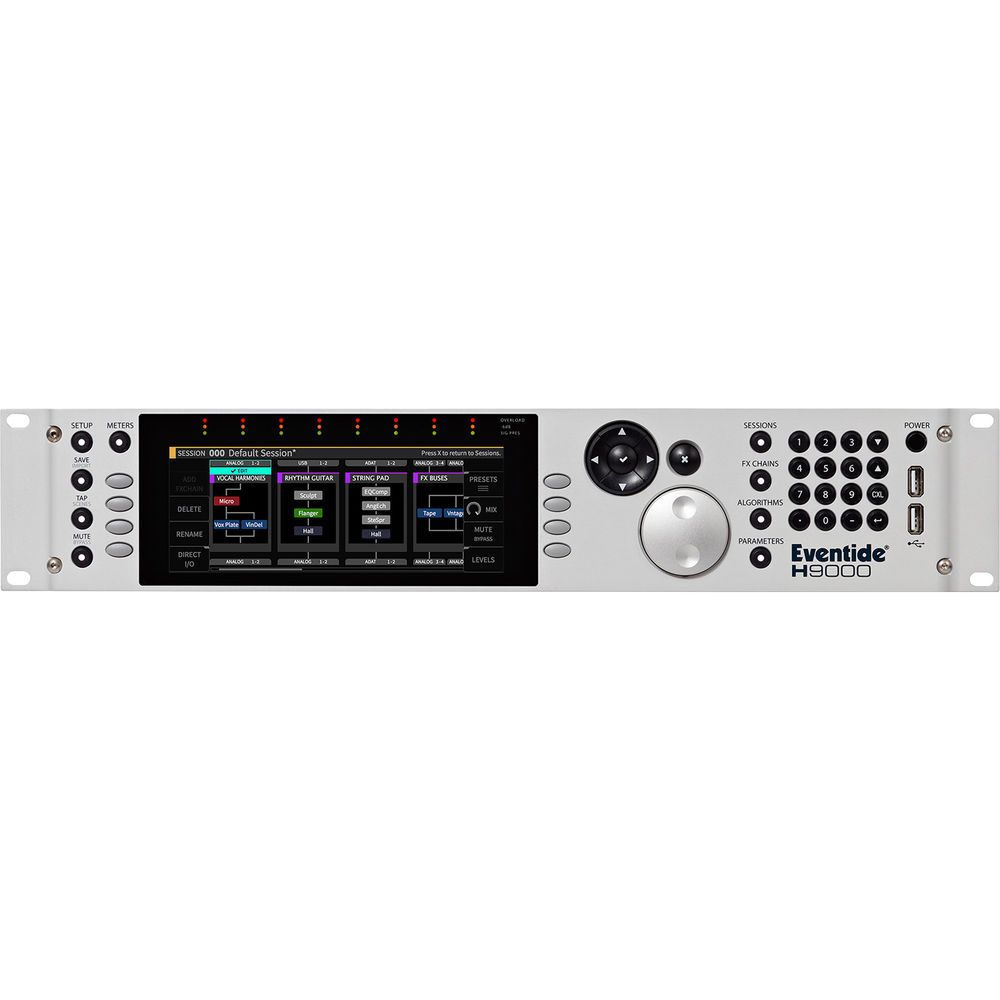

EVENTIDE H9000 EXPANDABLE 16 CHANNELS EFFECTS PROCESSOR
The Eventide H9000 is an expandable 16-channel effects processor designed to deliver efficient, versatile, and customizable audio processing for recording and mixing engineers in broadcast, film and music production, and live stage applications. Its four quad-core ARM DSP processors provide power for up to 16 simultaneous effects instantiated on individual channels or configured as chains with up to four effects per chain. Route 16 channels of audio I/O via USB or up to eight channels via analog, AES/EBU, or ADAT connections.
Key Features
- 4 x Quad-Core ARM Processors
- Run up to 16 Simultaneous Effects
- Utilize up to 4 Multi-Effect Chains
- 50 Effects, Over 9000 Presets
- Up to 96 kHz Sample Rate
- Analog, Digital, and USB Audio I/O
- Use Stand-Alone or as a Plug-In
- Supports Local and Network Control
- Mac OS X Compatible
- AAX Native, Audio Units, VST
Eventide H9000 Specs
| System Requirements |
For Optional Software Control:
Mac OS X 10.9 or Later Mac Computer Equipped with a USB Type-A Port Core-Audio-Compatible application Host Software That Supports AAX Native, Audio Units, or VST Plug-In Formats (for Plug-In Use) |
| Rack Height |
2 RU
|
| Effects Type |
Multi-Effects
|
| Channels |
16
|
| Effect Variations |
50 Effect Types
|
| Presets |
Types: Algorithm, FX Chain, and Session
Total: Over 9000 |
| User Memory |
Internal Memory
External Storage Via USB Flash Drive |
| Inputs |
2 x XLR 3-Pin (Analog)
1 x DB25 (8 Channels, Analog) 1 x XLR 3-pin (2 Channels, AES/EBU) 1 x DB25 (8 Channels I/O, AES/EBU) 1 x RCA coaxial (2 Channels, S/PDIF) 1 x TOSLINK optical (2 Channels in S/PDIF Mode, 8 Channels in ADAT Mode) |
| Output |
2 x XLR 3-Pin (Analog)
1 x DB25 (8 Channels, Analog) 1 x XLR 3-Pin (2 Channels, AES/EBU) 1 x DB25 (8 Channels I/O, AES/EBU) 1 x RCA Coaxial (2 Channels, S/PDIF) 1 x TOSLINK Optical (2 Channels in S/PDIF Mode, 8 Channels in ADAT Mode) |
| AD/DA Conversion |
Up to 96 kHz
|
| Sample Rates |
Up to 96 kHz Using Analog, USB, AES/EBU, or S/PDIF via RCA
Up to 48 kHz Using ADAT or S/PDIF via Optical |
| USB |
4 x USB 2.0 Type-A for External Storage, Wi-Fi Dongle, and USB MIDI Controller
1 x USB 2.0 Type-B for 16-Channel Audio Interface Functionality |
| MIDI |
1 x MIDI 5-Pin Input
1 x MIDI 5-Pin Output 1 x MIDI 5-Pin Thru |
| Word Clock |
1 x BNC Input (50 Ohms)
1 x BNC Output (50 Ohms) |
| Ethernet |
1 x RJ45
|
| Pedal Control |
2 x 1/4" TRS Inputs
|
| Relay Input |
2 x 1/4" TRS
|
| External Storage |
USB Hard Drives or Flash Drives
|
| Expansion |
3 x Expansion Slot
|
| Display |
Front-Panel Color Screen
|
| Signal to Noise Ratio |
120 dBA at 44.1 kHz
114 dBA at 48 kHz or Greater Sample Rates |
| Total Harmonic Distortion |
0.002%
|
| Power Requirement |
100 to 240 VAC, 50/60 Hz, 80 W
|
| Dimensions |
19 x 3.5 x 12.5" / 48.3 x 8.9 x 31.8 cm
|
| Weight |
14 lb / 6.4 kg
|
