HENRY ENGINEERING LOGICONVERTER UTILITY CONTROL INTERFACE

HENRY ENGINEERING
SKU
HEN-LOGICONVERTER
MFR#
LC
$325.00
Availability: Out of stock

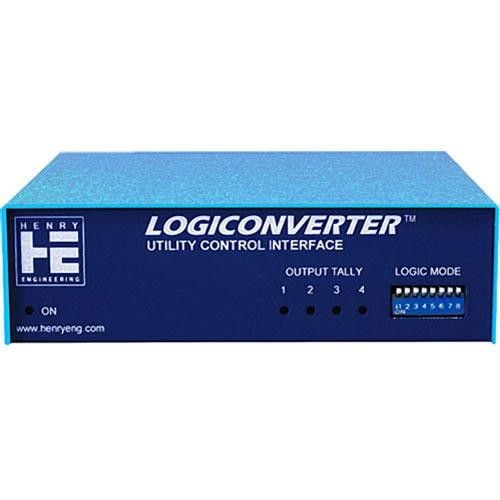

HENRY ENGINEERING LOGICONVERTER UTILITY CONTROL INTERFACE
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The Henry Engineering LogiConverter Utility Control Logic Interface is a general purpose control interface that eliminates the incompatibility between various audio and video equipment remote control circuits. There are 4 opto-isolated inputs that control 4 isolated relay outputs that can be programmed to provide either latched or momentary outputs from either continuous or momentary inputs. Up to 24 combinations are possible. A single input can provide single or dual "flip-flop" outputs; two inputs can latch and reset an output.

Your Rating
Key Features:
  • 4 Opto-Isolated Inputs
  • 4 Isolated Relay Outputs
  • Continuous or Momentary Inputs
  • 24 Combinations Possible

Specifications:

Inputs
Opto-isolated 5-24VDC or Ground Closure
Outputs
4 Form-C (SPDT) Relays
Control Input Resistance
1.5K ohms Per Input
Load Capacity
1A/28VDC, .5A/120VDC Res Max
Power
115/230VAC, 50/60Hz, 3W
Construction
Steel enclosure
Dimensions
5.7 x 1.7 x 6.0"
Weight
3 lbs
