HENRY ENGINEERING MINIPOD MAXX STEREO HEADPHONE AMPLIFIER

MiniPod Maxx is a compact stereo headphone amplifier for broadcast studios and other commercial sound installations. MiniPod Maxx is a new and improved version of the original MiniPod. It produces 400% more output level than the original unit, providing extended headroom and audiophile-grade performance. The new design eliminates all electrolytic capacitors in the audio path for exceptional transient response, rock-solid bass, and ultra-low distortion.

MiniPod Maxx is ideal for applications where multiple listening stations are required. For multi-listener installations, several MiniPod Maxx units can easily be “daisy-chained” using cat5 cabling. Power and audio will distributed to the entire system, eliminating the need for duplicate power supplies and audio DAs. Another option is to selectively isolate some MiniPods from the cat5 audio bus, and feed a different audio source(s) to select units in the chain.

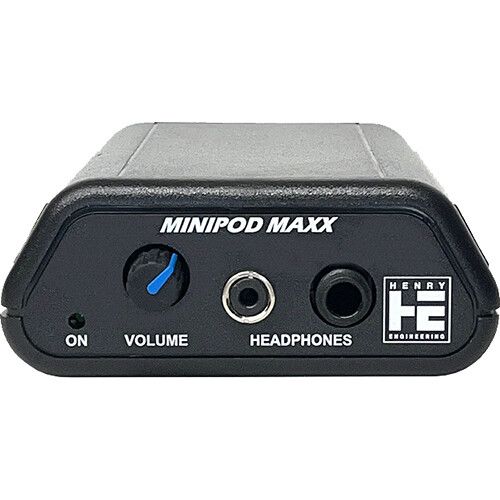

The front panel of the MiniPod Maxx features a volume control and headphone jacks. Both ¼” and 1/8” (3.5mm) jacks are provided. On the back panel there are two ¼” TRS audio input jacks, two RJ45 (cat5) connectors, and the power input jack.
