HENRY ENGINEERING USDA 2X4 UTILITY SUMMING & DISTRIBUTION AMPLIFIER TWO INPUTS 4 OUTPUTS 1214

HENRY ENGINEERING
SKU
HEN-USDA-2X4
MFR#
US
was $325.00 Special Price $250.00
Availability: Out of stock
HENRY ENGINEERING USDA 2X4 UTILITY SUMMING & DISTRIBUTION AMPLIFIER TWO INPUTS 4 OUTPUTS 1214
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

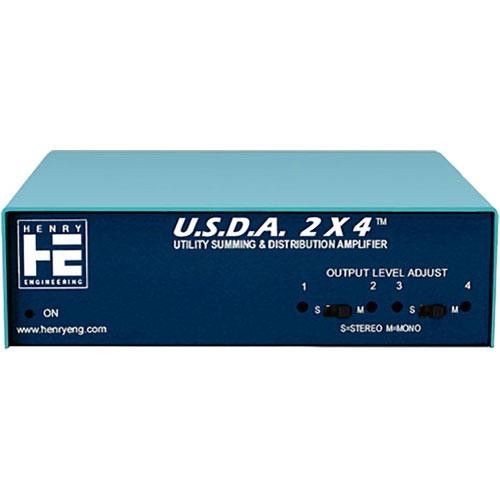

The U.S.D.A. 2x4 from Henry Engineering is a mini distribution amplifier for combining or splitting audio signals. In stereo mode, it acts as a one-input, two-output distribution amplifier. In mono mode, it is a two-input, four-output distributor. Front-panel switches let you select stereo or mono operation. The U.S.D.A. 2x4 also produces simultaneous mono and stereo outputs from a stereo source.

All I/Os have plug-in Euroblock connectors and support balanced or unbalanced connections. Each output has an adjustable level with a 26 dB range. The unit has transformerless circuitry and is direct-coupled for accurate sound. The 1/3 rack-space size makes it easy to rack or wallmount the unit. It is built with an internal AC power supply.

Your Rating

Key Features:

  • 2 x Inputs, 1 Stereo Pair
  • 4 x Outputs, 2 x Stereo Pairs
  • Connections via Euroblock Connectors
  • Balanced and Unbalanced
  • Front-Panel Switches for Mono or Stereo
  • 26 dB Adjustable Level Output
  • Transformerless Circuitry
  • 1/3 Rack-Space Unit
  • Table Top Mounting
  • Internal AC Power Supply

Specifications:

Input Level
-14 to +8 dBm (Nominal)
Input Impedance
20 kOhms Balanced, 10 kOhms Unbalanced
Output Level
0 to +8 dBm Nominal, +26 dBm Max
Output Load
600 Ohms or Higher per Output (Balanced)
Controls
1 x Output Level Control for Each Channel
Mode Selector Switches
Gain
-12 to +14 dB
Frequency Response
20 Hz to 20 kHz
Total Harmonic Distortion (THD)
< 0.01%
Noise
> 80 dB Below Nominal Output, Typical
Material of Construction
Steel
Power Requirements
115/230 VAC, 50/60 Hz, 3 W
Dimensions
5.70 x 1.75 x 6.00" / 14.48 x 4.45 x 15.24 cm
Weight
3.0 lb / 1.4 kg
