JK AUDIO CELLTAP 4CWIRELESS PHONE TAP
SKU
JKA-CELLTAP4C
MFR#
CELLTAP4C
was
$105.00
Special Price
$94.50
Availability:
Out of stock

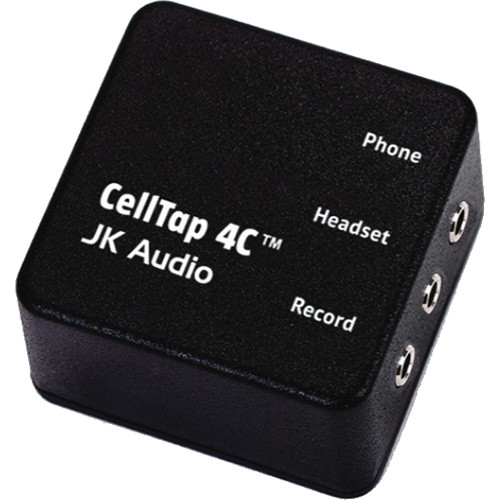

JK AUDIO CELLTAP 4CWIRELESS PHONE TAP
The CellTap 4C Wireless Phone Audio Tap Adapter from JK Audio is a passive device designed to allow you to record phone calls for interview and archival purposes. It's intended to be used in conjunction with a recording device or mixer.
Using a 3.5mm TRRS cable, you can route your phone's headset output into the Phone jack of the CellTap 4C. Then plug your TRRS-compatible headset into the jack marked, "Headset." Finally, connect the Record jack to a mic-level input on your recording interface or mixer to capture a stereo recording. The transformer coupled stereo output provides your microphone's audio on the left channel and the caller on the right channel, allowing you to split the signal and mix accordingly in a host DAW if you so choose.
Key Features
- Adapter for Recording Phone-Call Audio
- For Phones with 3.5mm Headphone Jacks
- Provides Stereo Recording to Recorders
- Passive; No Batteries Required
- Internal TRRS Configuration Switch
- 3.5mm Inputs for Phone & Headset
- 3.5mm Stereo Output for Recording
- Screwdriver Caller-Level Adjustment
- Made in the USA
Specs
| Connectors |
3.5 mm TRRS phone jack, headset input
3.5 mm TRRS phone jack, cable to device input 3.5 mm TRS phone jack, stereo microphone level output |
| Control |
Internal switch, TRRS configuration setting
|
| Output Impedance |
600 Ohms
|
| Voltage |
2.4 mV RMS
|
| Level |
-50 dBu nominal
|
| Dimensions |
2 x 2 x 1.3" / 5.1 x 5.1 x 3.3 cm
|
| Weight |
3.5 oz / 99.2 g
|
