JK AUDIO INNKEEPER LTD DIGITAL HYBRID - DESKTOP 0325

SKU
JKA-INNLTD
MFR#
INNLTD
was $688.00 Special Price $619.20
Availability: Out of stock
JK AUDIO INNKEEPER LTD DIGITAL HYBRID - DESKTOP

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The innkeeper LTD from JK Audio is an audio interface that enables you to cleanly separate the caller's voice from a telephone conversation on a standard telephone line for use in broadcasting, live sound, podcasting, and more. In addition to separating the caller's voice on a balanced XLR, the innkeeper LTD allows you to send a line-level signal into the phone line. The benefit of using the innkeeper LTD is that it automatically applies complex digital signal processing to keep out echoes and crosstalk to truly separate the audio signals.

Because the innkeeper LTD accepts a line-level signal as its input, it's intended to be used with a mixing board, or a microphone preamplifier of some kind. Dialing outgoing calls can be made with a telephone connected to its auxiliary phone input, or with the separately available Guest Module 1. The innkeeper LTD can be set up to answer calls automatically, or with the Call button. Calls can be hung up with the Drop button, and 3-segment LED meters are provided to visually monitor its output levels.

Your Rating
Key Features
  • Separates Caller's Voice on XLR Output
  • Send a Line-Level Signal into the Phone
  • Automatic DSP Keeps the Audio Clean
  • 3-Segment LED Output Meters

Specs

Inputs
1 x Balanced Female XLR, 20k ohms, 500 mV RMS (-4 dBu nom) +12 dBu max
Outputs
1 x Balanced Male XLR, 200 ohms, 500 mV RMS (-4 dBu nom) +14 dBu max
Phone Line
Phone Line: RJ11C

Aux Phone: RJ11C

Isolation
1500 VAC
Signal
Ringer: 0.8B REN
Frequency Response
Telephone Side: 200 Hz - 3600 Hz
Power
120-240 VAC power supply (included)
Dimensions
7.6 x 5.3 x 1.5" (20 x 14 x 4 cm)
Weight
2.7 lbs (1.2 kg)

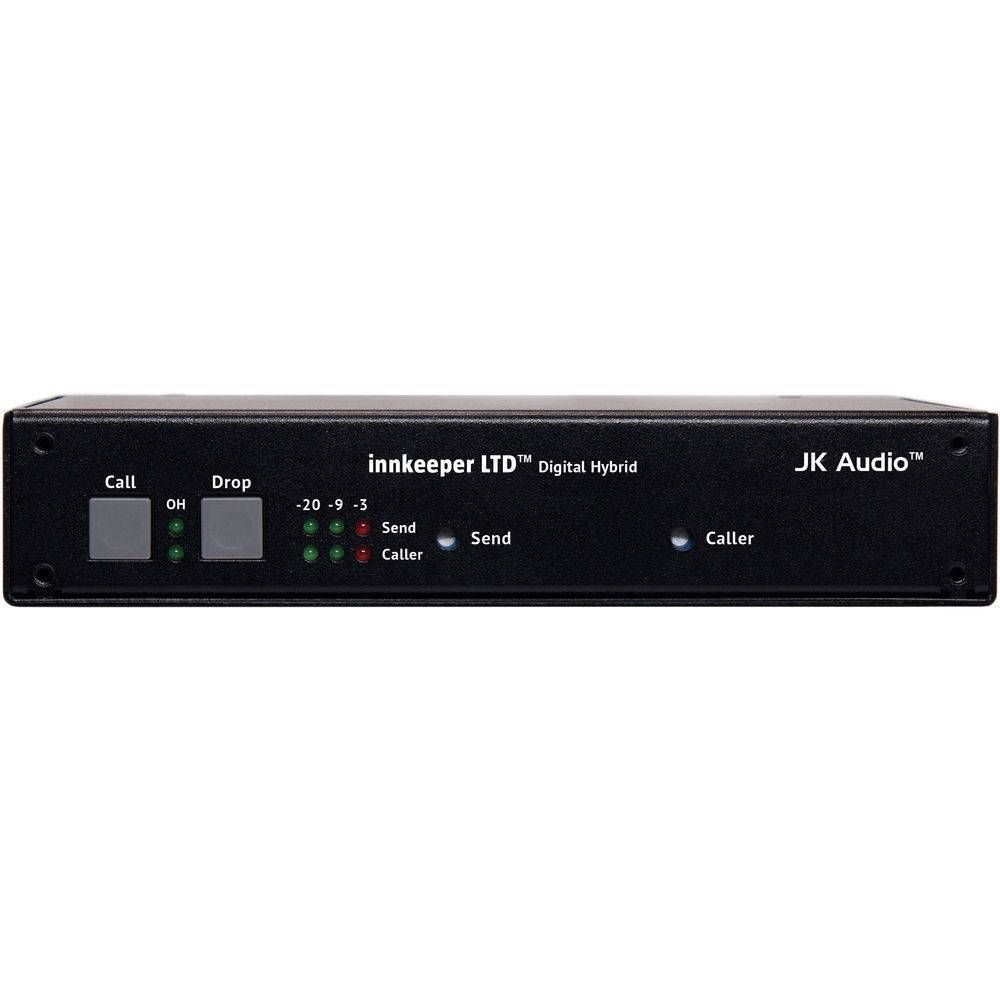

main product photo
