JK AUDIO INTERCHANGE NTERCOM PHONE BRIDGE

SKU
JKA-INTCHG
MFR#
INTCHG
was $760.00 Special Price $684.00
Availability: Out of stock
JK AUDIO INTERCHANGE NTERCOM PHONE BRIDGE

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The Interchange Intercom Phone Bridge from JK Audio is a professional half-rack interface designed to provide remote access to your party-line intercom through the JK Audio Innkeeper Series Digital Hybrids (sold separately). This unit provides a 4-wire audio interface and remote control connection to the JK Audio innkeeper LTD, innkeeper 1x/1rx, or innkeeper 2 Digital Hybrid (all sold separately). The front panel headset interface jack allows easy connection of your cell phone, tablet, or computer, thereby enabling remote access through a wireless phone or a conferencing app.

Your Rating

Features:

  • Male and female 3-pin XLR intercom loop jacks
  • Male and female 3-pin XLR 4-wire jacks
  • Male XLR mix line out for monitoring
  • Send and receive LED metering
  • Front panel screwdriver level controls
  • Front panel channel select
  • Front panel cell phone interface
  • Listen always, talk when talk-enabled
  • Intercom and phone hybrid-powered

Specs

Connection
Male & female 3-pin XLR
Output Level
0 dBu (775 mV) nominal
Impedance
Terminating: 200 Ω
Bridging: >15 kΩ
Pin Configuration
Pin 1: Common
Pin 2: Audio + 30 VDC (+12 VDC minimum) 50 mA
Pin 3: Audio
Input
Balanced Female XLR: 20 kΩ / 500 mV RMS (-4 dBu, nominal) +12 dBu maximum
Output
Balanced Male XLR: 200 Ω / 500 mV RMS (-4 dBu, nominal) +12 dBu maximum
Dimensions
7.6 x 5.3 x 1.5" (19.3 x 13.5 x 3.8 cm)
Weight
1.2 lb (0.5 kg)

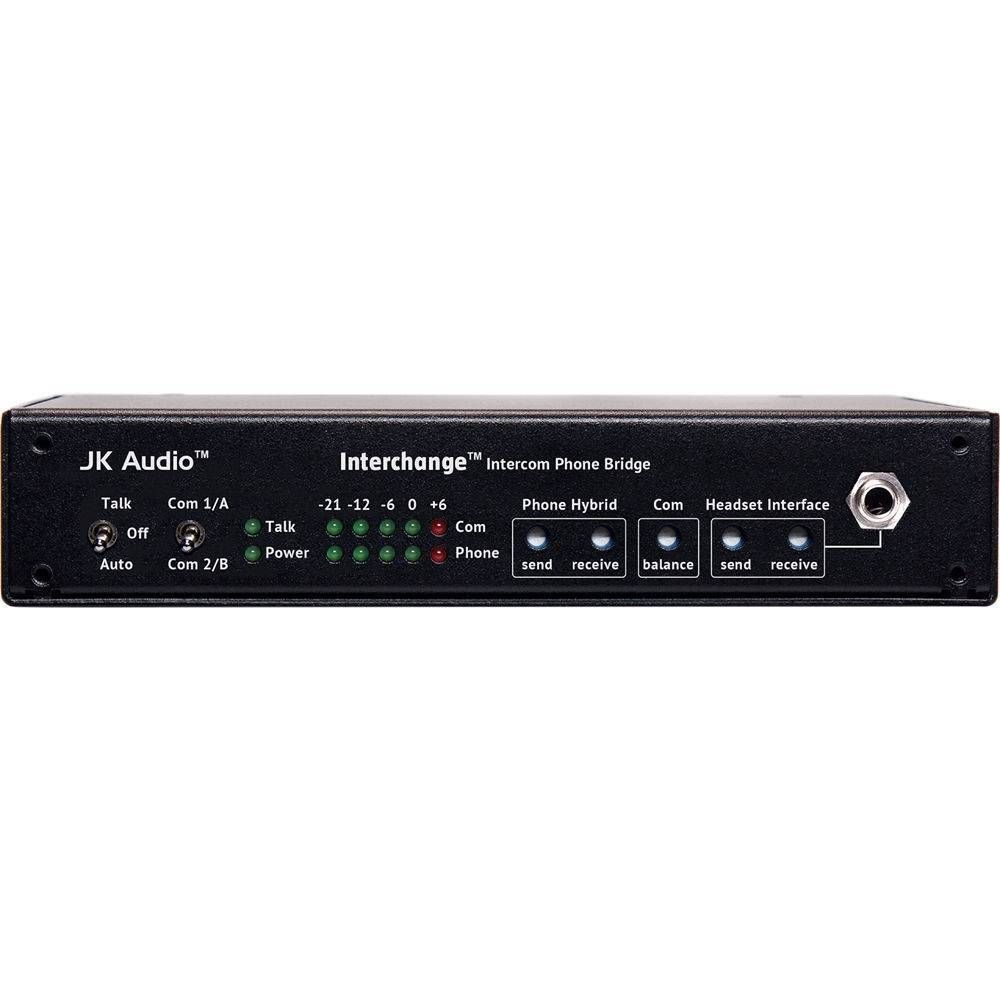

main product photo
