MACKIE DL32S 32-CHANNEL WIRELESS DIGITAL LIVE SOUND MIXER
SKU
MAC-DL32S
MFR#
2049000-00
$1,499.99
Availability:
Out of stock

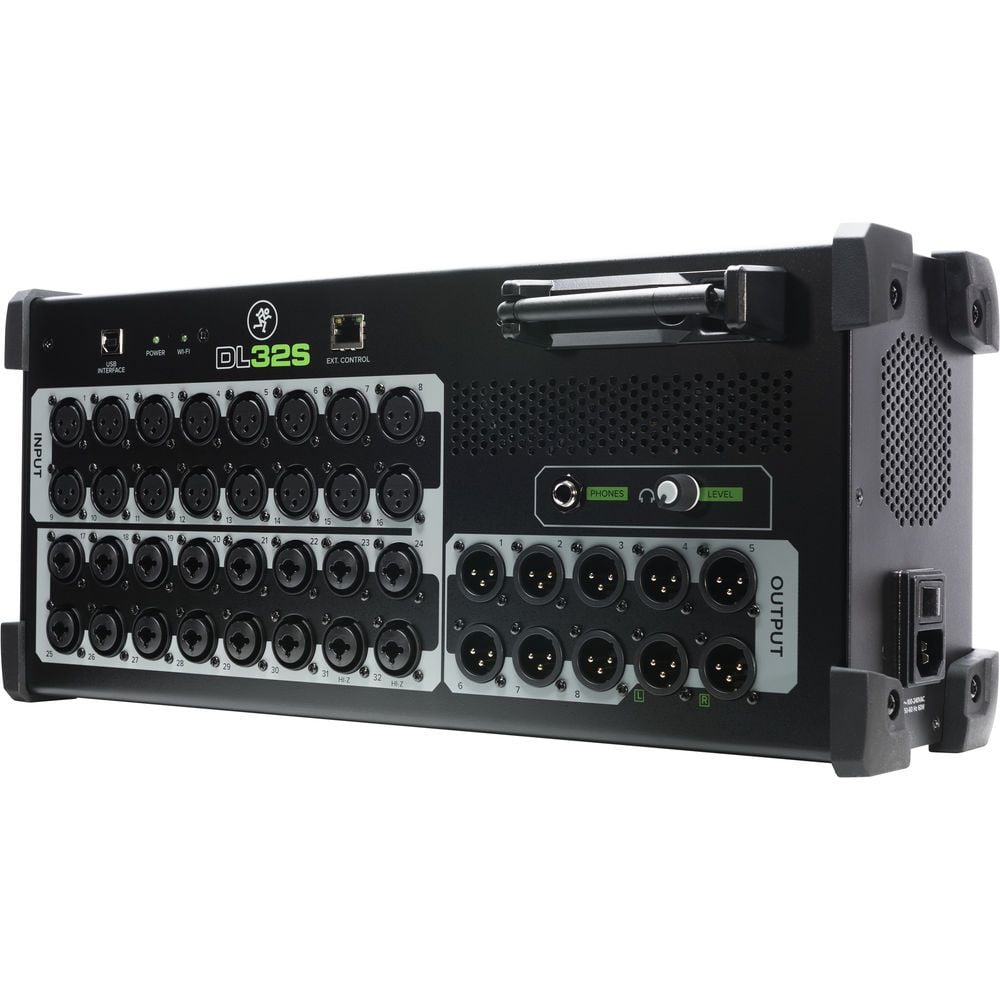

MACKIE DL32S 32-CHANNEL WIRELESS DIGITAL LIVE SOUND MIXER
The Mackie DL32S is a 32-channel wireless digital live sound mixer with integrated Wi-Fi, well suited for musicians, engineers, clubs, bars, coffee shops, and more. The mixer features 32 Onyx+ recallable preamps available on 16 XLR inputs and 16 combo XLR-1/4" inputs, while 10 fully assignable outputs are available on XLR connectors, plus, there is a dedicated 1/4" headphone output.
The DL32S offers sophisticated signal processing with a 4-band PEQ, HPF, gate, compressor, and an RTA/spectrograph for each of the 32 input channels. Each of the 15 output buses offers a 4-band PEQ, HPF/LPF, a 31-band GEQ, compressor/limiter, alignment delay, and RTA/spectrograph. Additionally, there are six VCAs, six mute groups, and four stereo FX processors with professional-quality reverb, delay, chorus, flange, and more.
Key Features
- Complete Wireless Control, Built-In Wi-Fi
- 32 Mic Inputs with Onyx+ Recallable Pres
- 10 Fully Assignable XLR Outputs
- 4-Band EQ, HPF & Dynamics on Each Input
- 15 Output Buses w/ EQ & Alignment Delay
- 31-Band Graphic EQ on Output Busses
- 6 VCAs and 6 Mute Groups
- 4 FX Processors with Reverbs & Delays
- 32x32 USB 2.0 Interface
Mackie DL32SSpecs
| Max I/O Capacity |
32x Input / 12x Output
|
| Number of Analog Input Channels |
32 (32 Mono / 0 Stereo)
|
| Number of Mic Preamps |
32
|
| Number of Analog Output Channels |
10
|
| Mix Routing |
8x Stereo Aux Send
6x Subgroup |
| Groups |
6x VCA Group
6x Mute Group |
| Faders & Level Adjustment |
No
|
| Gain/Trim Range |
Mic:
0 dB to 60 dB (in 3 dB Steps) Line: -20 dB to 40 dB (in 3 dB Steps) |
| Dynamic Processing |
Input Channels:
Compressor, Gate Buses, Master: Compressor, Limiter |
| EQ |
Input Channels:
4-Band Parametric Output Buses: 4-Band Parametric 31-Band Graphic |
| Graphic EQ |
31-Band
|
| Filters |
High-Pass
Outputs: High-Pass Low-Pass |
| Solo/Mute |
No
|
| Built-In Effects |
4x Stereo Preset (Factory)
|
| Sample Rates |
48 kHz
Multitrack Record: 48 kHz Audio Streaming: 48 kHz |
| Bit Depth |
AD/DA Conversion:
24-Bit Record: 16 / 24-Bit Audio Streaming: 16 / 24-Bit |
| Frequency Response |
20 Hz to 20 kHz -1 dB
|
| Max Input Level |
XLR Input:
+21 dBu 1/4" Input: +30 dBu |
| Analog Dynamic Range |
Input to Output:
109 dBA at Unity Gain Output: 111 dBA |
| I/O Impedance |
XLR Mic Input:
3 Kilohms Combo XLR-1/4" Line Input: 30 Kilohms 1/4" Hi-Z Input: 1 Megohms XLR Line Output: 600,300 Ohms (Balanced) |
| Noise Floor |
< -90 dBu A-Weighted
|
| SNR |
92 dB at Unity Gain (+4 dBu Reference)
|
| THD |
Mic Input to Main Output:
< 0.005% (-1 dBFS) |
| Analog Inputs |
8x XLR 3-Pin Balanced Input
8x Combo XLR-1/4" TRS Balanced Input |
| Analog Outputs |
8x XLR Balanced Output
1x 1/4" TRS Headphone Output |
| Phantom Power |
+48 V
|
| Digital I/O |
1x RJ45 (Wi-Fi Router, 100 Mb/s)
1x XLR AES3 Output |
| MIDI I/O |
No
|
| USB I/O |
1x USB-B 2.0 (Host Connection)
|
| Wireless |
Wi-Fi
*Built-In |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Mackie Master Fader Functionality: Remote Control |
| External Display I/O |
No
|
| Max Multitrack Recording |
16 Tracks
|
| Media Support |
HDD
|
| File Format Support |
WAV
|
| OS Compatibility |
Computer: Windows 7 or Later / macOS 10.8 or Later
Mobile: Android/iOS |
| OS Compatibility |
Windows 7
Windows 8 macOS 10.8.4 macOS 10.9 |
| Mobile Device Compatibility |
iPad 3rd Gen., 4th Gen., 2
iPad Mini with Retina iPad Air iPhone |
