MACKIE DLM12 2000W 12" POWERED LOUDSPEAKER
SKU
MAC-DLM12
MFR#
2037875-00
$999.99
Availability:
Out of stock

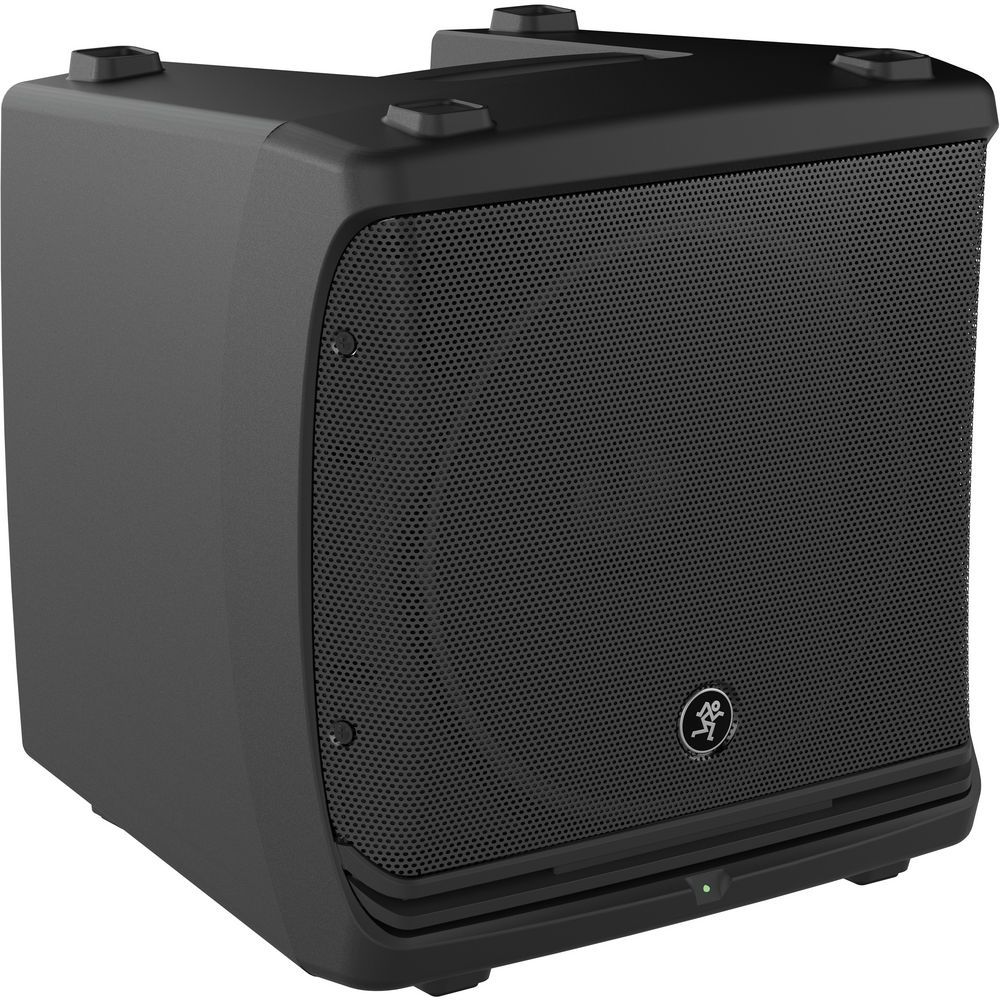

MACKIE DLM12 2000W 12" POWERED LOUDSPEAKER
The Mackie DLM12 Full-Range 12" Powered Loudspeaker delivers 1,000 watts of program power and 2,000 watts of peak power in a compact, portable design. It features TruSource driver technology, incorporating a 12" low-frequency driver and a 1.75" compression driver into a common-magnet design. The TruSource DSP delivers clarity, consistent dispersion and high fidelity sound.
The DLM12 features an integrated DL2 digital mixer, a 2-channel mixer with a versatile connection options. It also includes 3-band EQ, 16 effects presets, feedback destroyer, 6 speaker modes, and Smart Protect technology. The DLM12 can be pole or wall mounted. An integrated kickstand allows use as a wedge-style monitor. M10 mounting points allow it to be used in fly installs as well.
Key Features
- Class D 1,000W RMS Powered Speaker
- 2,000W Peak Power
- Generates up to 128dB SPL
- Integrated DL2 Digital Mixer
- Two Flexible Input Channels
- DSP Effects, EQ and Audio Tools
- Common-Magnet Design
- Unpowered Audio Thru Output
- Mounting Options
Mackie DLM12Specs
| Configuration |
Active 2-Way
|
| Total Power Capacity |
1000 W RMS
2000 W Peak |
| Amplifier Power Rating |
LF:
500 W RMS 1000 W Peak HF: 500 W RMS 1000 W Peak |
| Amplifier Class |
Class-D
|
| HF Driver |
1 x 1.75" / 44 mm Polyimide Compression Driver with 1" / 25 mm Throat
|
| LF Driver |
1x 12" / 305 mm Woofer
|
| LF Voice Coil |
2.5" / 64 mm
|
| Magnet |
HF:
Ferrite LF: Ferrite |
| Frequency Response |
38 Hz to 20 kHz -10 dB
|
| Maximum SPL |
128 dB
|
| Coverage Angle |
90° H x 90° V
|
| I/O Impedance |
Mic Input:
3.3 Kilohms (Balanced) Line Input: 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) 1/4" Input: 16 Kilohms (Balanced) 8 Kilohms (Unbalanced) XLR Line Input: 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) Hi-Z Input: 1 Megohms (Unbalanced) RCA Input: 25 Kilohms (Unbalanced) |
| Total Harmonic Distortion/Noise |
< 1%
|
| Audio I/O |
1x Combo XLR-1/4" TRS Mic/Line Input
1x Combo XLR-1/4" TRS Mic Input 1x Stereo RCA Input 1x XLR 3-Pin Thru/Output |
| Crossover |
1.6 kHz
|
| EQ |
LF Shelf:
±15 dB at 80 Hz MF Notch/Peak: ±15 dB at 2.5 kHz HF Shelf: ±15 dB at 12 kHz |
| Alignment Delay |
0 to 300 ms
|
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz |
| AC Power I/O |
1x IEC
|
| Power Consumption |
250 W
|
| Mounting |
1 x Pole Socket
3 x M10 |
| Handles |
1x Top
|
| Cooling |
Fan (Variable Speed)
|
| Construction Material |
ABS, Metal Grille
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
15.9 x 15.3 x 14.3" / 403 x 389 x 363 mm
|
| Weight |
31 lb / 14.1 kg
|
