MACKIE DRM12A-P 12" ARRAYABLE PASSIVE LOUDSPEAKER
SKU
MAC-DRM12A-P
MFR#
2050840-00
$1,349.99
Availability:
Out of stock

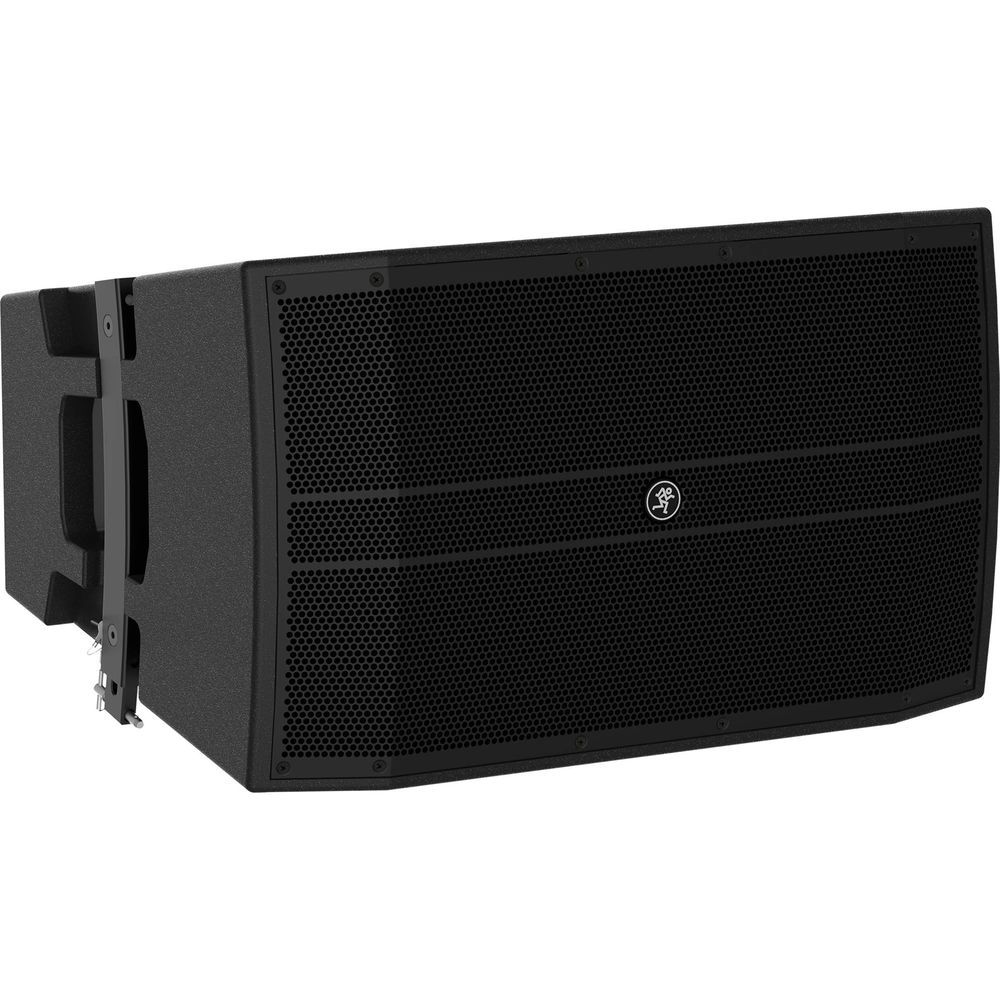

MACKIE DRM12A-P 12" ARRAYABLE PASSIVE LOUDSPEAKER
The Mackie DRM12A-P is a 2000W 12" arrayable passive loudspeaker designed for scalable sound reinforcement in large theaters, music venues, and outdoor festivals as well as clubs, houses of worship, and rental systems. A professional-grade 12” woofer and three 1” compression drivers are housed in the texture coated 15mm plywood cabinet and when combined, offer a frequency range of 47 Hz to 20 kHz (-10 dB) with a speak SPL of 132 dB. The rear panel features parallel speakON inputs for connection up to four DRM12A-P loudspeakers and two DRM18S-P subwoofers, which all can be flown via the optional FB100 fly bar.
Key Features
- Large Music Venues & Outdoor Festivals
- 12" Woofer
- 3 x 1" Compression Drivers
- Frequency Response: 47 Hz to 20 kHz
- Max SPL: 132 dB
- 110° × 20° Dispersion
- Parallel speakON Connectors
- 7 x M10 Flypoints
- Dual-Angle Pole Mount
- Tour-Grade Enclosure with Steel Grille
Mackie DRM12A-PSpecs
| Configuration |
Passive 2-Way
|
| Total Power Capacity |
500 W RMS
1000 W Program 2000 W Peak |
| HF Driver |
3 x 1" / 25.4 mm
|
| LF Driver |
1x 12" / 30.5 cm Woofer
|
| Frequency Response |
47 Hz to 20 kHz -10 dB
|
| Maximum SPL |
132 dB
|
| Coverage Angle |
110° H x 20° V
|
| Audio I/O |
1x speakON NL4 Input
1x speakON NL4 Thru |
| Mounting |
7 x M10
Pole Socket (Dual Angle) |
| Construction Material |
Metal Grille, Plywood
|
| Dimensions |
15.2 x 24.7 x 18" / 386.1 x 627.4 x 457.2 mm
|
| Weight |
55 lb / 24.9 kg
|
