MACKIE HM-800 8-CHANNEL HEADPHONE AMPLIFIER
SKU
MAC-HM-800
MFR#
2049179-00
$249.99
Availability:
Out of stock
MACKIE HM-800 8-CHANNEL HEADPHONE AMPLIFIER

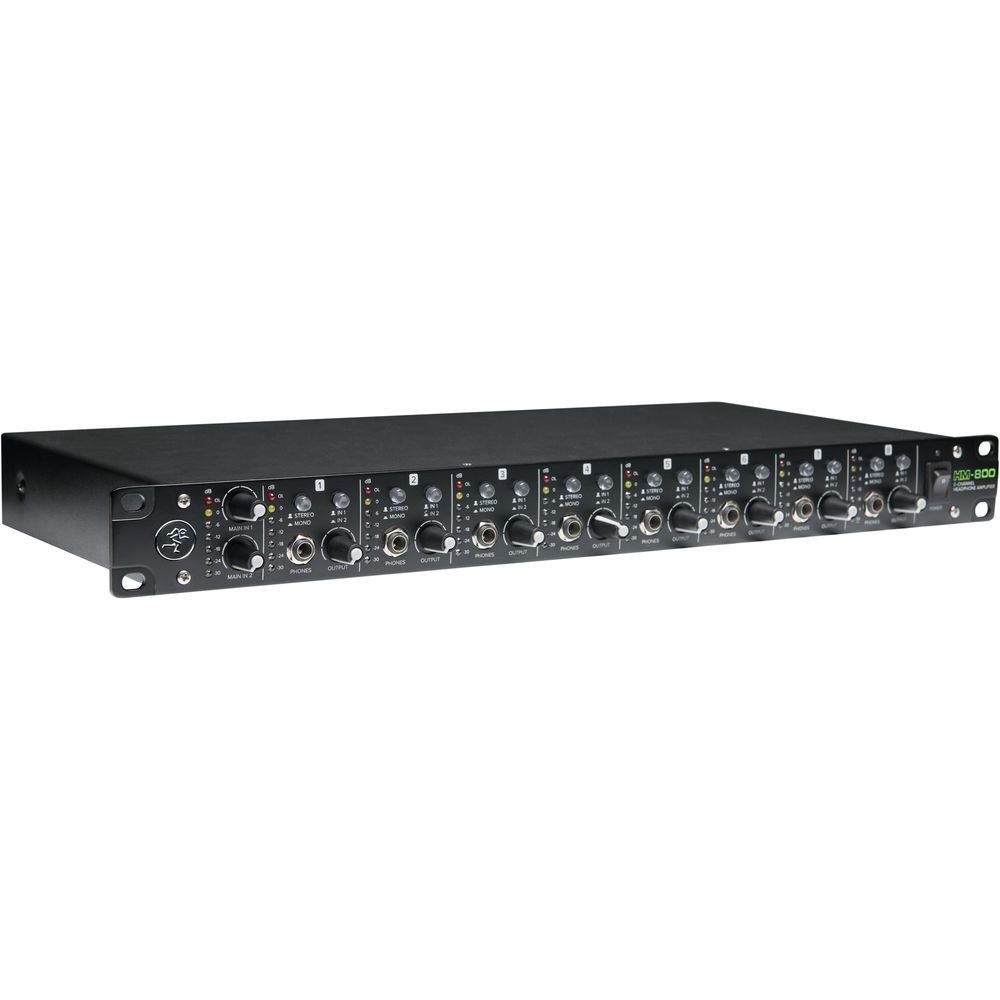

The Mackie HM-800 is a rack-mountable, 8-channel headphone amplifier designed to provide versatile headphone amplification for artists, musicians, and engineers monitoring through headphones in live stage applications and home, project, commercial, and mobile-recording studios. It features two stereo main outputs via four 1/4" jacks and sixteen 1/4" TRS stereo headphone outputs—two per channel—fed by a customizable blend of inputs.
Two stereo main inputs via four 1/4" jacks can be combined with a per-channel 1/4" stereo aux input. Each channel offers stereo/mono mode switching, input selection, and output level adjustments. 7-segment LED meters display main input and per-channel output levels.
Key Features
- Distribute Signal to 16 Headphones
- Two Stereo Main Inputs via 1/4" Jacks
- Two Stereo Main Outputs via 1/4" Jacks
- Two 1/4" Headphone Outputs per Channel
- Per-Channel 1/4" Stereo Aux Input
- Input Selectors and Stereo/Mono Switches
- Output Controls
- 7-Segment LED Metering
- Includes Power Cable
Mackie HM-800Specs
| Number of Headphone Channels |
8-Channel
|
| Headphone Output Power |
550 mW per Side into 47 Ohms (Max)
|
| Display |
9x Multi-Segment LED Meter
|
| Analog Audio I/O |
4x 1/4" TRS Balanced Output (2 Stereo Pair)
16x 1/4" TRS Unbalanced Headphone Output 4x 1/4" TRS Balanced Input (2 Stereo Pair) 8x 1/4" TRS Unbalanced Aux Input |
| Frequency Response |
20 Hz to 20 kHz ±1 dB
|
| Gain/Trim Range |
Inputs:
-67 to +19 dBu |
| Maximum Input Level |
Line Inputs:
+19 dBu Aux Inputs: +20 dBu |
| Maximum Output Level |
Headphone Outputs:
+21 dBu |
| Impedance |
Inputs:
40 Kilohms (Balanced) 20 Kilohms (Unbalanced) Aux Inputs: 13 Kilohms (Unbalanced) Headphone Outputs: 3 Ohms (Unbalanced) |
| THD |
< 0.005% (at +4 dBu, 1 kHz, Unity Gain)
|
| Noise |
-70 dB
|
| CMRR |
Line Inputs:
> 52 dB (1 kHz) |
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
24 W
|
