MACKIE HR824MK2 8" 2-WAY HIGH RESOLUTION STUDIO MONITOR
SKU
MAC-HR824MK2
MFR#
2034159-00
$799.99
Availability:
Out of stock

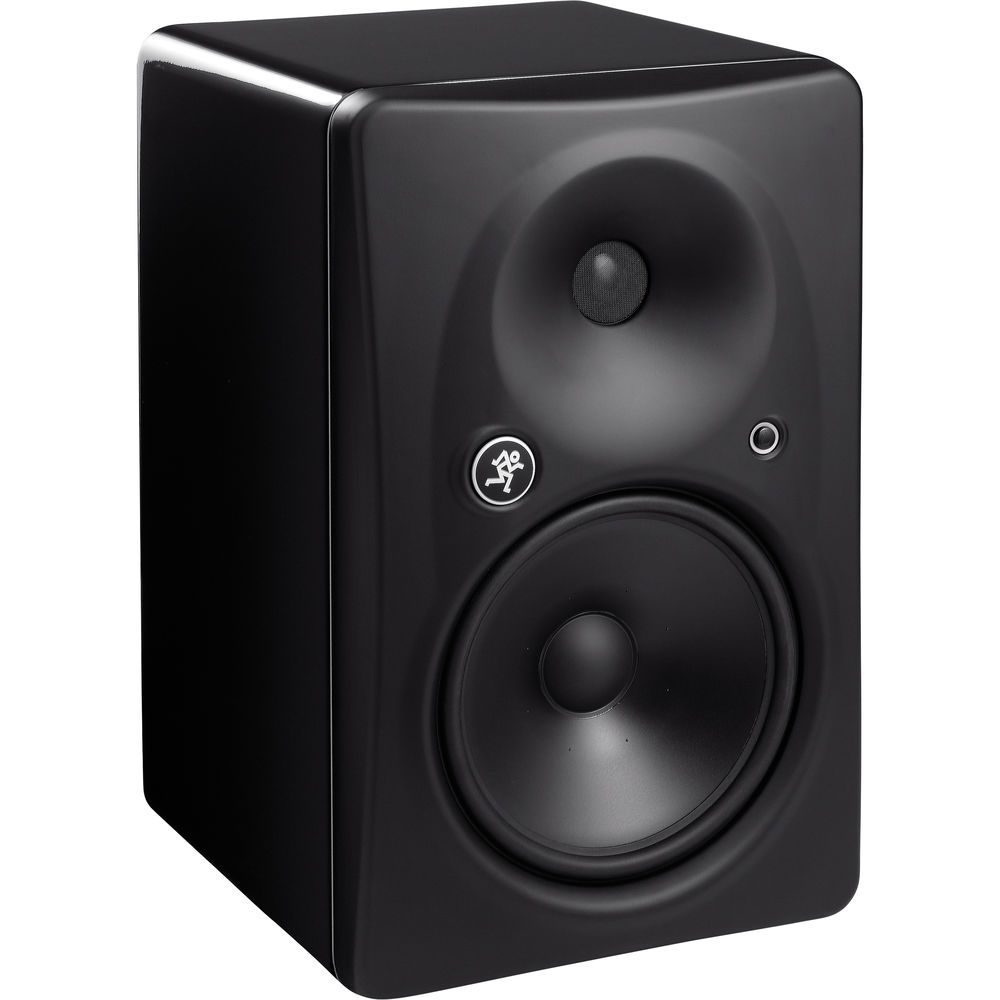

MACKIE HR824MK2 8" 2-WAY HIGH RESOLUTION STUDIO MONITOR
The Mackie HR824mk2 is an active two-way studio monitor, perfect for stereo or surround mixing applications. The monitor is THX pm3 certified, great for creating high-definition audio for video, film, and video game projects. The monitor has an 8.75" low-distortion woofer, a 1" titanium dome tweeter, and an elliptical passive radiator to provide clear, lifelike sound across a full frequency spectrum. Internal amplifiers provide 250W RMS of total power for strong performance.
The cast-aluminum Zero Edge Baffle keeps diffraction to a minimum for excellent imaging; the optimized waveguide provides a wide sweet spot; and the integral cabinet damping eliminates midrange artifacts. The internally braced wood cabinet is OmniMount ready, allowing it to be mounted easily on a wall or ceiling.
The rear panel of the cabinet has XLR, TRS, and RCA input connectors for compatibility with virtually any audio gear you can throw at it. Controls for LF and HF filters, along with acoustic space matching allow you to customize the monitor to your specific workspace for optimum performance.
Key Features
- THX PM3 Certified
- 8.75" Low-Distortion Woofer
- 1" Titanium Dome Tweeter
- 250W of Class-AB Amplification
- Elliptical Passive Radiator
- Low- and High-Frequency Adjustments
- Sensitivity and Acoustic Space Controls
- Internally Braced Wood Cabinet
- Pro Tools | First & Musician Collection
Mackie HR824mk2Specs
| Number of Included Monitors |
Single Monitor
|
| Enclosure |
Passive Radiator, Shielded
|
| Total Power Output |
250 W RMS
|
| Tweeter |
1x 1" / 25.4 mm Dome
|
| Woofer |
1x 8.75" / 22.23 cm Cone
Voice Coil: 1.6" / 4.06 cm |
| Amplifiers |
LF: 150 W RMS / 350 W Peak Class-AB
HF: 100 W RMS / 210 W Peak Class-AB |
| Frequency Range |
35 Hz to 22 kHz (-3 dB)
|
| Frequency Response |
37 Hz to 20 kHz ± 1.5 dB
|
| Maximum Sound Pressure Level (SPL) |
120 dB
|
| Total Harmonic Distortion (THD) |
0.1%
|
| Maximum Input Level |
+20 dBu
|
| Protections and Limiting |
Driver Protection, Thermal Limiting
|
| EQ |
1x HF Shelf: -2 to +2 dB at 10 kHz
1x LF Shelf: -2 to -4 dB at 50 Hz (2 dB Increments) |
| Filters |
1 x High-Pass at 37 Hz, 12 dB/Octave Slope
1 x High-Pass at 47 Hz, 24 dB/Octave Slope 1 x High-Pass at 80 Hz, 24 dB/Octave Slope |
| Parametric EQ |
No
|
| Crossover Frequency |
1.9 kHz, 24 dB/Octave Slope
|
| Crossover Type |
Linkwitz-Riley
|
| Phase Adjustment |
No
|
| Audio I/O |
1x XLR 3-Pin Balanced Input (20 Kilohms)
1x 1/4" TRS Balanced/Unbalanced Input (20 Kilohms) 1x RCA Unbalanced Input (10 Kilohms) |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Wireless |
No
|
| AC Input Power |
120 VAC, 60 Hz
|
| Power Consumption |
8 W (Standby)
18 W (Idle) 135 W (Typical) |
| Color |
Black
|
| Monitor Orientation |
Vertical
|
| Enclosure Material |
MDF
|
| Dimensions (W x H x D) |
10.8 x 16.8 x 13.8" / 27.4 x 42.7 x 35.1 cm
|
| Weight |
34.6 lb / 15.7 kg
|
