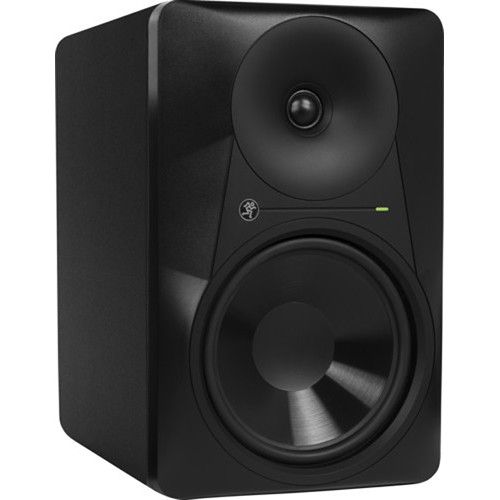

MACKIE MR824 8" POWER STUDIO MONITOR
The Mackie MR824 Studio Monitor is a powered 8" 2-way reference speaker that is designed for mixing and monitoring in your home or project studio. It features a logarithmic waveguide system that aims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.
The MR824 is equipped with matched amps and drivers for an optimized 85W Class-AB bi-amplified system. The speaker can also be optimized to your mixing environment with the adjustable acoustic space filters designed to maintain a flat response in typical placement configurations. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright or dull sounding rooms. The MR824 has been designed with flexibility in mind, featuring XLR, TRS, and RCA monitor inputs. The speaker has been housed in an all-wood cabinet that has been treated with acoustic absorption material for a tighter response. Additionally, the optional MRS10 studio subwoofer can be added for a more powerful, extended low end.
Mackie 824Specs
| Frequency Response |
38 Hz to 20 kHz, (-3 dB)
35 Hz to 20 kHz, (-10 dB) |
| SPL |
107 dB SPL @ 3.3' / 1.0 m (+4 dBu into balanced input)
|
| Maximum SPL |
113 dB SPL @ 3.3' / 1.0 m (per pair)
|
| Transducer |
Low Frequency: 8.0" / 203 mm (polypropylene-coated woofer)
High Frequency: 1.0" / 25 mm (silk dome tweeter) |
| Power |
85 W
|
| Crossover |
Crossover Frequency: 1.9 kHz
|
| Controls and Processing |
Power
Level HF-boost/cut Acoustic space control |
| AC Power |
100 to 120 VAC
|
| Enclosure |
Rugged all-wood design, internal acoustic absorption material, minimum-diffraction molded baffle, custom-tuned zero-turbulence rear port, logarithmic waveguide, and textured finish
|
| Dimensions |
15.7 x 10.9 x 13.2" / 401 x 277 x 335 mm
|
| Weight |
33.1 lb / 15.0 kg
|
