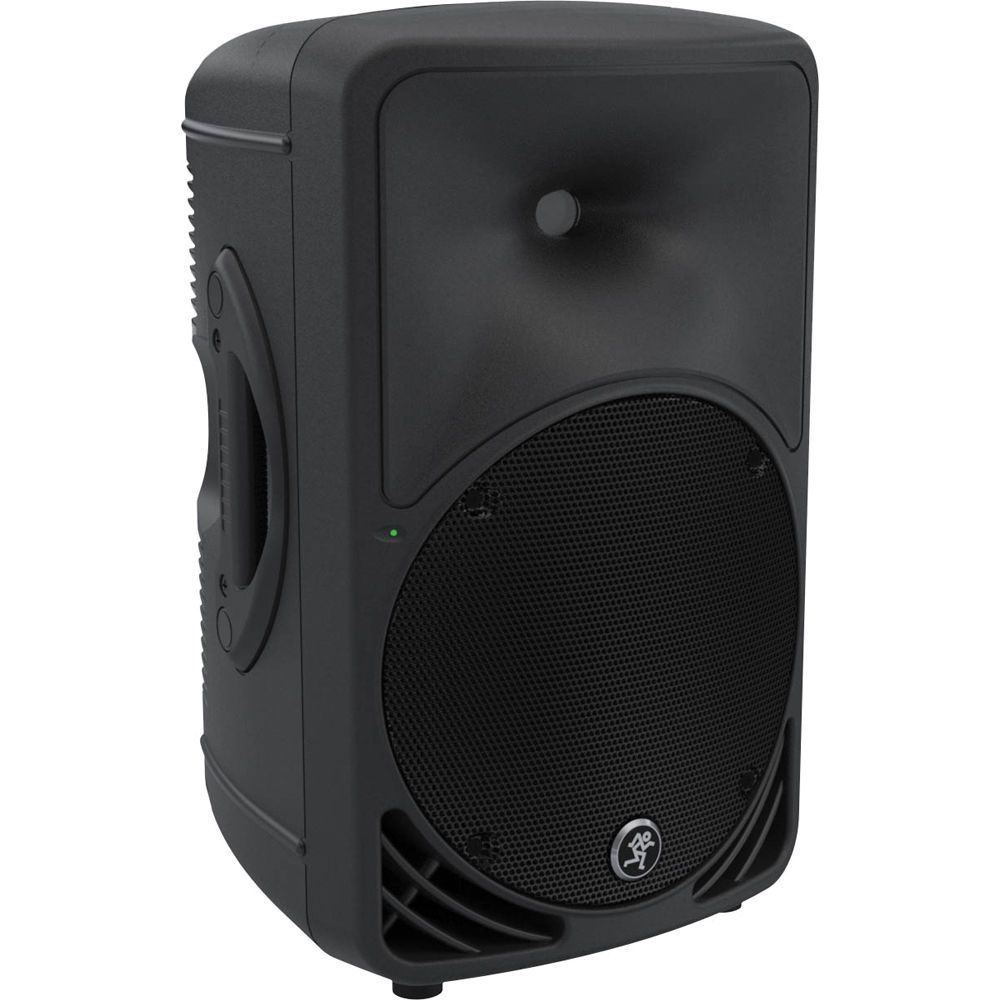

MACKIE SRM350V3 1000W HIGH-DEFINITION PORTABLE POWERED LOUDSPEAKER
Looking for a portable and versatile active speaker for live sound applications? Then look no further than the Mackie SRM350v3 10" Powered PA Loudspeaker System, a powerful PA speaker that includes a 2-channel mixer and integrated DSP, great for small club/band PA systems, singer/songwriters, boardrooms, A/V presentations, classrooms, or as a personal monitor for practice or performance.
The SRM350v3's mixer features two combo XLR-1/4" mic/line/Hi-Z channels with dedicated gain controls. Channel 2 also provides stereo RCA inputs for line-level sources, such as MP3 players, CDs, and other portable devices. An XLR output is provided for daisy-chaining additional speakers. For quick and easy setup, the integrated DSP provides four speaker mode presets (PA Speaker, DJ Speaker, Monitor Speaker, and Solo Speaker). Simply select your application for the best sound. Additionally, the SRM350v3 features a multiband feedback destroyer, that hunts down offending feedback frequencies and applies up to four notch filters to automatically prevent feedback, allowing you to raise the output for your best performance.
Mackie SRM350V3Specs
| Enclosure Type |
Bass-Reflex Loudspeaker
|
| Total Power Capacity |
500 W RMS
1000 W Peak |
| Amplifier Power Rating |
LF:
400 W RMS 800 W Peak HF: 100 W RMS 200 W Peak |
| Amplifier Class |
LF:
Class-D HF: Class-AB |
| HF Driver |
1 x 1.4" / 36 mm Titanium Dome Tweeter
|
| MF Driver |
No
|
| LF Driver |
1x 10" / 254 mm Woofer
|
| Magnet |
HF:
Ferrite LF: Ferrite |
| Frequency Response |
55 Hz to 20 kHz -3 dB
50 Hz to 23 kHz -10 dB |
| Maximum SPL |
126 dB SPL
|
| Coverage Angle |
90° H x 80° V
|
| I/O Impedance |
Input:
8 Kilohms (Balanced) 1 Megohms (Unbalanced) 25 Kilohms (Unbalanced) |
| Total Harmonic Distortion/Noise |
< 1%
|
| Protections |
Excursion, Output Limiter, Thermal
|
| Audio I/O |
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1x Stereo RCA Unbalanced Input 1x XLR 3-Pin Male Balanced Thru |
| Network I/O |
No
|
| USB I/O |
No
|
| Wireless Connectivity |
No
|
| Crossover |
3 kHz
|
| EQ |
No
|
| Parametric EQ |
No
|
| Semi-Parametric EQ |
No
|
| Dynamic Processing |
Peak Limiter
|
| Alignment Delay |
No
|
| Phase Adjustment |
No
|
| Digital Signal Processing |
Venue Settings, Voicing Modes
|
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
|
| AC Power I/O |
1x IEC
|
| Power Consumption |
160 W
|
