MIDAS-MR18 18-INPUT DIGITAL MIXER FOR IPAD/ANDROID TABLETS
SKU
MIDAS-MR18
MFR#
MIDAS-MR18
$839.00
Availability:
Out of stock

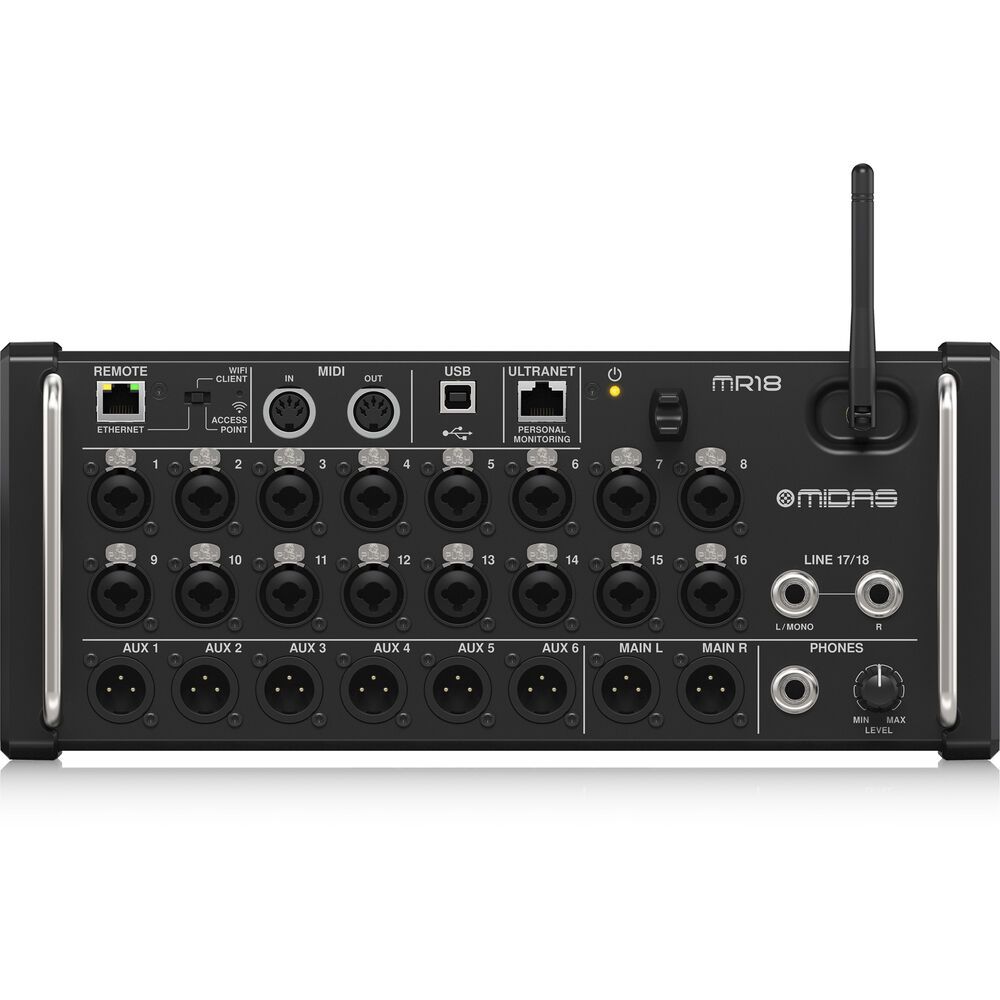

MIDAS-MR18 18-INPUT DIGITAL MIXER FOR IPAD/ANDROID TABLETS
Designed for live and studio applications the Midas MR18 is an 18-input/8-bus portable digital mixer housed in a sturdy stage box design for use with iPad and Android tablets. It features 16 award-winning Midas Pro mic preamps, integrated Wi-Fi module for wireless control, MIDI I/O, and a multichannel, bidirectional USB Audio Interface.
The MR18 harnesses the power of the M32 digital mixer and features four onboard effects engines that drive several innovative, high-end simulations of legendary studio effects. What's more, the mix engine includes all the standard components found in most digital mixers, such as a 4-band EQ on each channel input, full dynamics with compression and gate, and a 100-band RTA for visual feedback of your audio. Each output includes inserts, dynamics, and either a 6-band parametric EQ or 31-band graphic EQ. Take control of your mix from anywhere in the room using the free iOS, Android, and PC apps. Manipulate all the parameters of your mix, while performers have the same freedom to dial-in their personal monitor mixes. The MR18 includes a pair of rack ears (3 RU) and a power cord.
Features:
- Integrated Wi-Fi Module
- iOS, Android, Mac, Windows, Linux
- 16 Midas PRO Microphone Preamps
- 8 XLR Outputs
- M32 FX Rack with 4 Stereo FX Slots
- 18x18 Bidirectional USB 2.0 Interface
- MIDI In/Out + Dugan-Style Automixing
- Includes Rack Ears & Protection Bumpers
Midas MR18 Specs
| Max I/O Capacity |
18x Input / 8x Output
|
| Number of Analog Input Channels |
18 (16 Mono / 1 Stereo)
|
| Number of Mic Preamps |
16
|
| Number of Analog Output Channels |
8
|
| Mix Routing |
2x Main LRC
4x Stereo FX Return 6x Bus |
| Presets |
Yes
|
| Faders & Level Adjustment |
No
|
| Input Polarity |
Normal/Reverse
|
| Dynamic Processing |
Compressor, Gate
|
| EQ |
Input Channels:
4-Band Parametric Outputs: 6-Band Parametric 31-Band Graphic |
| Graphic EQ |
31-Band 1/3 Octave, ±15 dB 20 Hz to 20 kHz
|
| Filters |
Input Channels:
1x High-Pass |
| Solo/Mute |
Solo, Mute per Input Channel, Bus, FX Bus, Master
|
| Built-In Effects |
4x Stereo
|
| Audio Delay |
No
|
| Automatic Mic Mixing |
Yes
|
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depth |
AD/DA Conversion:
24-Bit |
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB
|
| Max Input Level |
Combo XLR-1/4" Mic Input:
+23.5 dBu 1/4" TRS Input: +21 dBu |
| Analog Dynamic Range |
Input to Output:
107 dB |
| I/O Impedance |
Combo XLR-1/4" Line/Mic Input:
10 Kilohms (Balanced/Unbalanced) 1/4" Line Input: 20 Kilohms (Unbalanced) 40 Kilohms (Balanced) XLR Main Output: 50 Ohms 1/4" TRS Headphone Output: 50 Ohms |
| Noise Floor |
All Outputs:
-86 dBu Unweighted (at Unity Gain, 22 Hz to 22 kHz Unweighted) All Outputs: -90 dBu Unweighted (with Inputs Muted, 22 Hz to 22 kHz, Unweighted) |
| THD+N |
Mic/Line Input:
0.005% at Unity Gain (1 kHz, Unweighted) |
| Signal Generator |
No
|
| Analog Inputs |
16x Combo XLR-1/4" TRS Balanced Input
2x 1/4" TRS Balanced Line Input |
| Analog Outputs |
2x XLR 3-Pin Balanced Main Output
6x XLR 3-Pin Balanced Aux Output 1x 1/4" TRS Balanced Headphone Output |
| Phantom Power |
+48 V (Selectable on Individual Inputs)
|
| Digital I/O |
1x RJ45
|
| MIDI I/O |
1x MIDI 5-Pin In
1x MIDI 5-Pin Out |
| USB I/O |
1x USB-B 2.0 (Audio Playback, MIDI)
|
| Expansion Ports |
No
|
| Wireless |
Wi-Fi
*Built-In |
| Mobile App Compatible |
Yes, Required: Android & iPadOS
App Name: M AIR MIX Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| External Display I/O |
No
|
