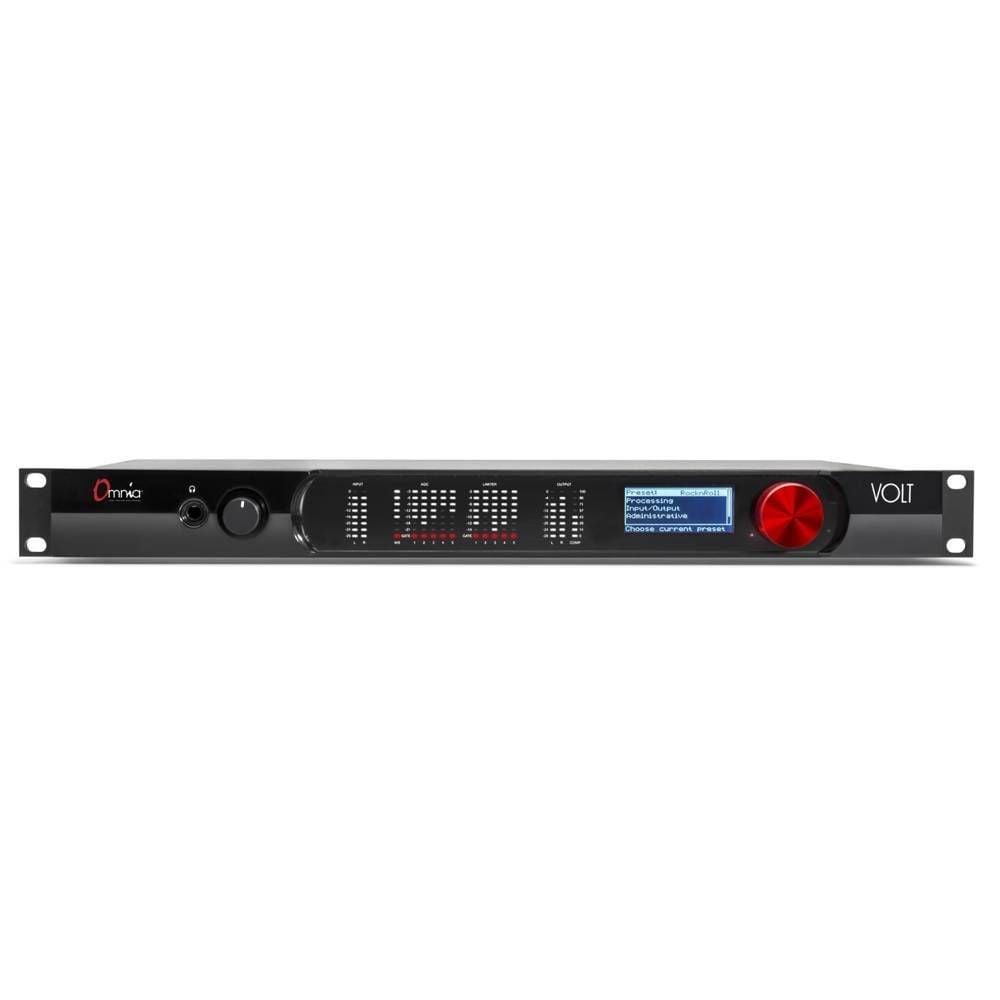

OMNIA VOLT SG STEREO GENERATOR PN 2001-00497-000

Features

VOLT SG

• SSBSC support lets you select Single Sideband suppressed carrier for more multipath immunity, less noise, and more robust HD radio.
• “One Louder” technology embeds the stereo pilot directly into the composite signal. This frees up power, giving you a full decibel more loudness—effectively, 10% additional modulation—without exceeding legal limits.
• Flexible Composite Limiter can be calibrated to control overshoots from nonlinearities in your STL.
• Pilot Phase adjustment of ±32°, compared to the 38 kHz suppressed carrier, to compensate for timing errors elsewhere in your system.
• Advanced single sideband suppressed carrier processing [SSBSC] - for reduced multipath and more robust HD transmission.

Specifications

• Frequency Response: User selection of flat, 50 µs, or 75 µs pre-emphasis curve within ± 0.50 dB, 30 Hz to 15 kHz.
  Signal-to-Noise Ratio: Audio >95 dB analog, >120 dB digital I/O.
  System Distortion: Less than 0.01% THD, 20 Hz – 7.5 kHz (second harmonic distortion above 7.5 kHz is not audible in the FM system).
  Latency: 16ms nominal, +-0.5ms depending on IO selection. Low Latency FM version 10ms
• Input / Output:
  Composite: Output impedance 75Ω, single-ended and floating over chassis ground. BNC connectors with EMI suppression. Maximum cable 100’ / 30M RG-58U.
  Output level: Separately adjustable for each of two outputs, 0V – 10V in 0.05V steps.
  Pilot Level: Adjustable from 4.0% to 12.0% in 0.1% steps and OFF. Pilot Stability: 19 kHz, ± 0.5 Hz. S/N: -85 dB typical, 75 μS de-emphasized across 15 kHz, at 100% modulation Distortion: 65 dB, 30 Hz – 15 kHz. Linear Crosstalk: > -80 dB, main to sub or sub to main channel @ 100%. Non-linear Crosstalk: > -80 dB, main to sub or sub to main @ 100%. 38 kHz Suppression: > 70 dB @ 100%. 76 kHz Suppression: > 80 dB @ 100%. Pilot Protection: > -65 dB relative to 9% pilot injection, ± 1 kHz. 57 kHz (RDS/RBDS) Protection: > -50 dB.
• Analog:
  Left and Right Stereo on EMI-suppressed XLR-3, balanced with “pin 2 hot.”
  Input: Electronic balanced, impedance 10kΩ, nominal +4 dBu, max +22 dBu.
  Output: Impedance 20Ω for >600Ω load, +4 dBu nominal, +22 dBu peak. Converters: 24 bit, 128x oversampled with linear-phase anti-aliasing filter.
  Crystal Semiconductor CS5361, 24-bit 128x over-sampled delta sigma converter with linear-phase anti-aliasing filter.
  Pre-ADC anti-alias filter, with high-pass filter at <10 Hz.
  Delta sigma converter with linear-phase and anti-aliasing filter.
• Digital: Stereo per AES/EBU standard, 24-bit resolution. Input locks to any rate 32 kHz – 108 kHz. Output locks to input, internal 48 kHz, or separate external AES/EBU “digital black” reference 32 kHz – 96 kHz.
  Audio over IP: LiveWire Audio and control over IP, on the same RJ-45 used for Ethernet control.
• Remote Control:
  GPI: EMI suppressed DB-9 at logic levels, +5 V and ground supplied. Ethernet: 10/100BaseTX.
  Ethernet on EMI-suppressed RJ-45. TCP/IP control via HTML-5 internal web server, password protected. Manual addressing and port selection.
• SNMP: MIB 2 compliant SNMP support for remote monitoring and control
• Electrical/Physical:
  Power: 100 – 250 VAC, 47-63 Hz. < 40 VA. Typical draw 12W RMS, maximum 15W RMS. Internal supply with overvoltage and short circuit protection. Meets EN55022, EN55011 Level B Conducted Emissions. EN61000-4-2, -3, -4, -5, -6 level 3 immunity compliant. Full international safety approval. CE marked. EMI suppressed IEC male connector. Detachable 3-wire power cords supplied for US and European use. Temperature: 32° to 122° F / 0° to 50° C for all operating voltage ranges.
  Humidity: 0-95% RH, non-condensing.
  Dimensions: 19” wide x 1.75” high x 16” deep (48.26cm x 13.335 cm x 40.64 cm) including connectors. Unit requires one EIA rack space for mounting.
  Shipping Weight: 12 lbs. / 5.5 kg
• Regulatory:
  North America: FCC and CE tested and compliant, power supply is UL approved.
  Europe: Complies with the European Union Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/ EC, 2005/747/EC (RoHS Directive), and WEEE.
