RAM CLK-16R DIGITAL CLOCK DISPLAY USING 0.56" RED LED DIGITS
SKU
RAM-CLK-16R
MFR#
CLK-16R
$385.00
Availability:
Out of stock

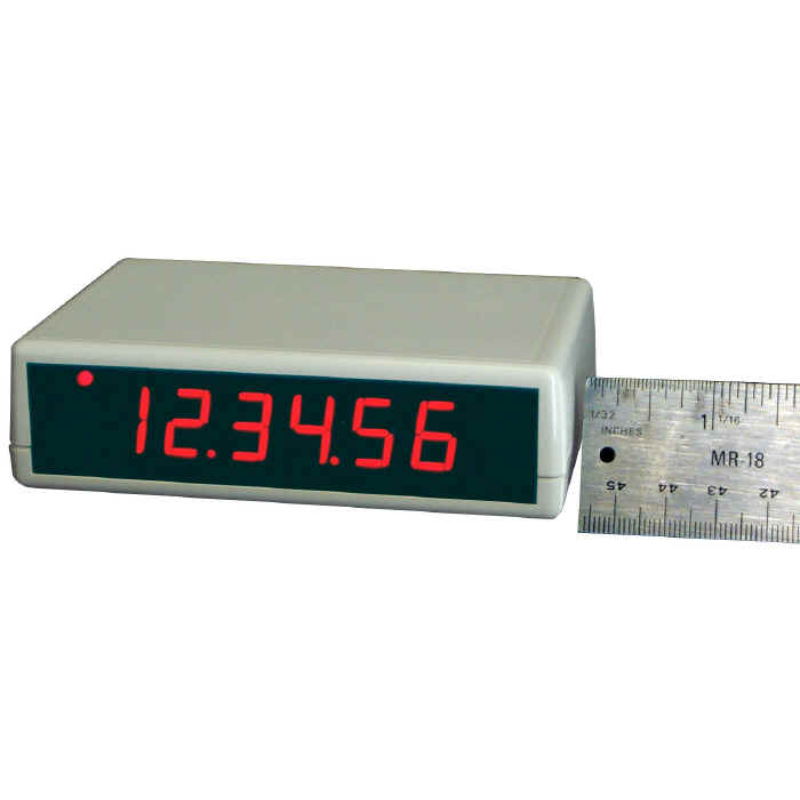

RAM CLK-16R DIGITAL CLOCK DISPLAY USING 0.56" RED LED DIGITS
This Display is particularly suitable for displaying time above video monitors and teleprompters, or for mounting in areas where space is limited, while maintaining large, clear, bright digits.
Features:
- Display: 0.56" (14.2mm)
- Case: 4.5"W x 1.25" H x 3"D (114.3 x 31.8 x 76.2mm)
- Bright, Flicker-free LED Display
- Ability to decode a variety of industry standard time codes through jumper settings
- User programmable
- User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
- User selectable leading zero blanking
- RS-422 time code input
- Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
- The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
- Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
- Input Level: 2.6V p-p min.
- Impedance: 10KW min. differential input (balanced)
- Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
