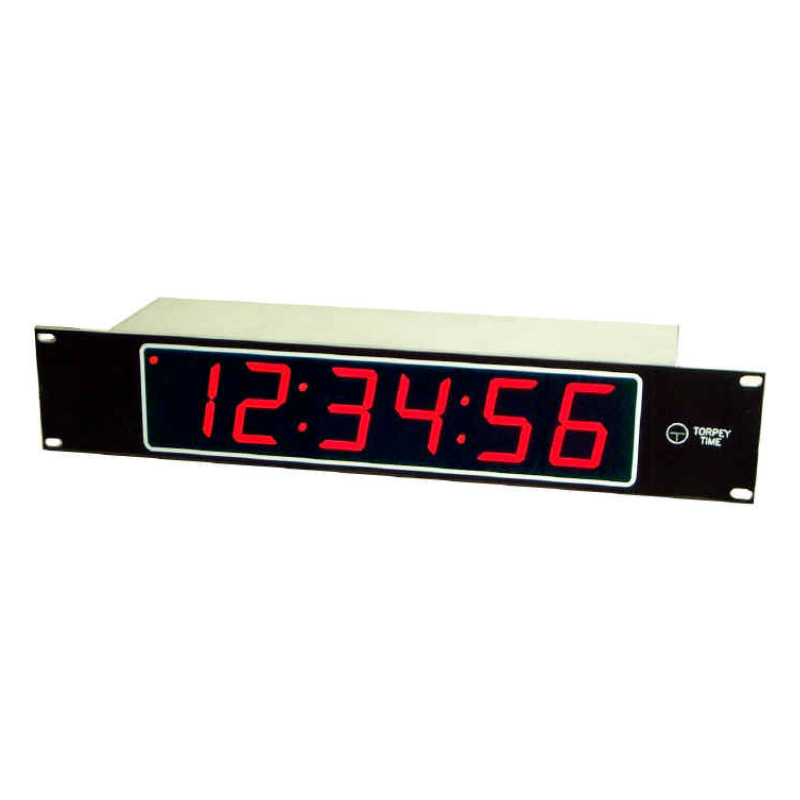

RAM CLK-20AR 2 RU DIGITAL CLOCK DISPLAY, 2.3" RED LED DIGITS

Features:

• Display: 2.25" (57.2mm)
• Case: 2 Rack-Units --- 19"W x 3.5"H x 4.25"D (483 x 89 x 108 mm)
• Bright, Flicker-free LED Display
• Ability to decode a variety of industry standard time codes through jumper settings
• User programmable time zone offset
• User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
• User selectable leading zero blanking
• RS-422 time code input
• Requires only a simple 2-conductor shielded cable to interface to a master clock.  For desk mount units, 6 ft. of cable is built in.
• The CLK-20x and CLK-40x series displays are non multiplexed.  This means that you can use these displays on video and film without producing flicker.

Specifications:

• Code Input:  SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
• Input Level:  2.6V p-p min.
• Impedance:  10KW min. differential input (balanced)
• Power Requirements:  In North America, all units are supplied with plug-in power adapter.  In other countires: 12VAC, 50/60 Hz power required.
