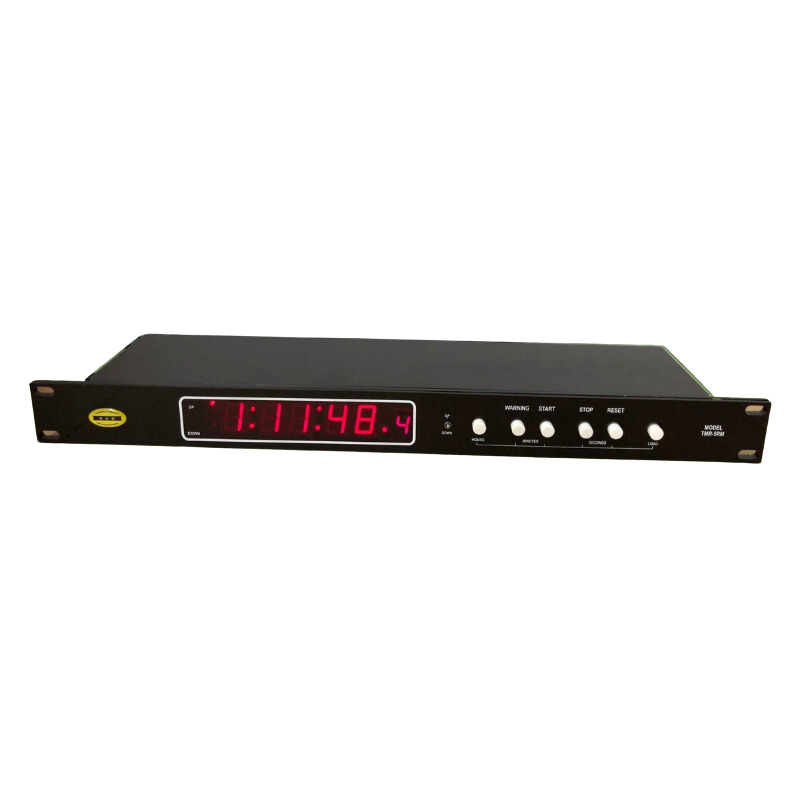

RAM TMR-5R RACK MOUNT MASTER TIMER WITH 0.8" RED LED'S, SERIAL CODE OUTPUT FOR REMOTE DISPLAYS AND A RANGE OF -59:59 TO 9:59:59.9

Features:

• Bright, flicker free LED display
• 10 hour range
• Timing resolution of 1/10th of a second
• Counts up or down
• Can be loaded with any time value including negative time
• Can be preset while running to shorten load time.
• Can be set to stop at zero or continue counting in either direction.
• Wide variety of remote timer displays.
• Output drive capacity: 50 remote timer displays, up to 4,000 ft.
• Displays are 0.8" (20.32 mm) bright red LED
• Dimensions are: 19"W x 1.75"H x 4"D (482.6 x 44.45 x 101.6 mm)
• Time code output is a varient of DQS time code transmitted using RS-422 signal levels.  Balanced, low z
• Input power: 9VDC

The local controls are as follow:

• HOURS - With the LOAD pressed, changes the hours
• STORE - Stores current time while running.  With LOAD pressed, changes tens of minutes.
• START - Starts the timer.  With LOAD pressed changes units of minutes.
• STOP - Stops the timer.  With LOAD pressed, changes tens of seconds.
• RESET - Reset timer to zero when stopped. With LOAD pressed, changes units of seconds.
• LOAD - Loads or preloads time into timer.
• UP/DOWN - Switches between counting up or down.  Works only when timer is stopped.
