RODE AI1 SINGLE CHANNEL AUDIO INTERFACE WITH COMBO XLR/INSTRUMENT INPUT, HIGH QUALITY HEADPHONE AMP AND BALANCED 1/4" OUTPUTS
SKU
ROD-AI1
MFR#
Ai1
was
$225.00
Special Price
$129.00
Availability:
Out of stock

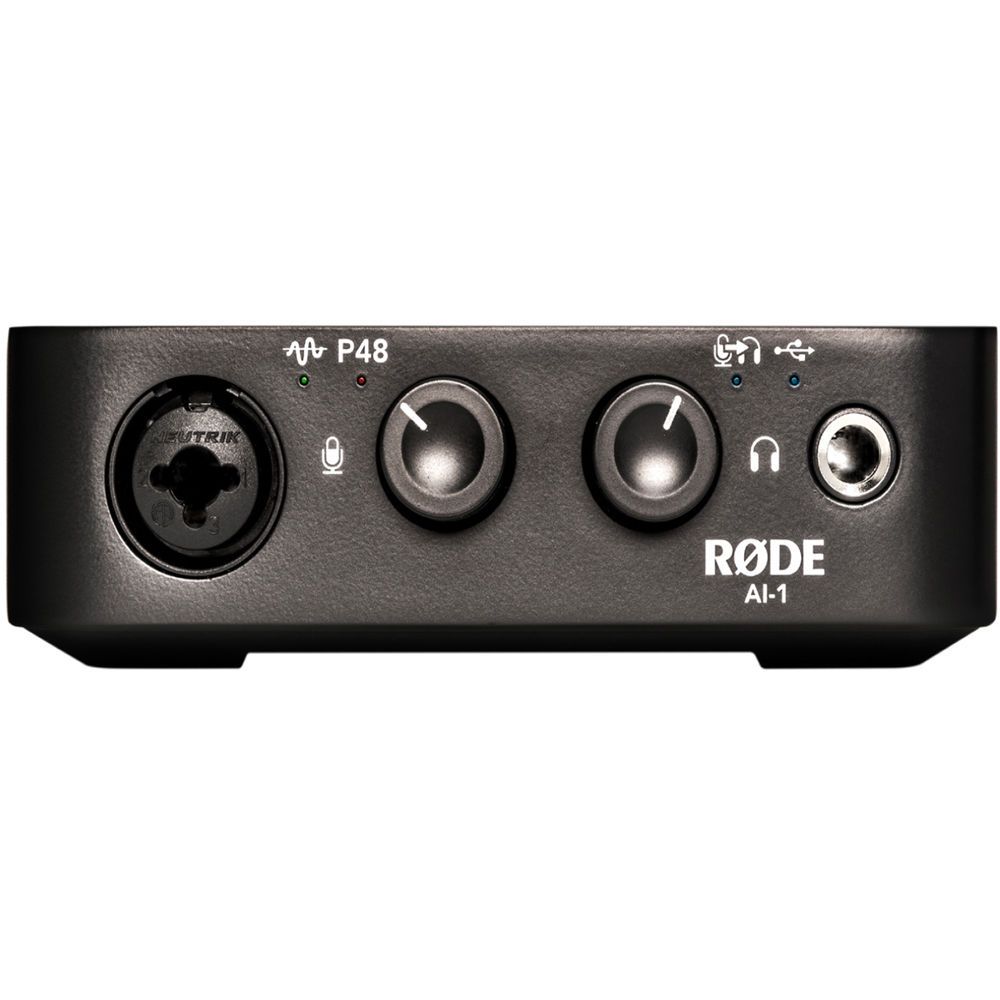

RODE AI1 SINGLE CHANNEL AUDIO INTERFACE WITH COMBO XLR/INSTRUMENT INPUT, HIGH QUALITY HEADPHONE AMP AND BALANCED 1/4" OUTPUTS
The Rode AI-1 is a studio-quality audio interface well suited for recording vocals, instruments, and voiceovers into your Mac or Windows computer. The interface features a single, combo XLR-1/4" input with phantom power, two balanced 1/4" monitor outputs, and a single, discrete, studio-quality headphone output and level control. The device can operate in zero-latency monitoring mode, which connects the preamp directly to the headphone output for delay-free performance while recording. With the headphone input engaged, the two monitor outputs are bypassed. To engage the monitor outputs, simply remove the headphone plug from the jack.
Key Features
- Musicians, Podcasters
- Bus Powered / Mac, Windows
- 1 Mic / Hi-Z Preamp
- 1 Headphone Out, 2 Line Out
- 24-Bit / 96 kHz AD/DA Conversion
- 48V, Zero-Latency Direct Monitoring
- Includes Ableton Live Lite
RODE Ai1 Specs
| Channels of I/O |
1 Input / 2 Output
|
| Built-In DSP |
No
|
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Number of Microphone Inputs |
1
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
2x Knob
|
| Expansion Slots |
No
|
| Gain/Trim Range |
Inputs:
0 to 45 dB |
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
| Analog Audio I/O |
1x Combo XLR-1/4" TRS Mic/Line Input
2x 1/4" TRS Balanced Line Output 1x 1/4" TRS Headphone Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
No
|
| Host Connection |
USB-C
|
| Host Connection Protocol |
Not Specified by Manufacturer
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Frequency Response |
20 Hz to 20 kHz ±1 dB
|
| Maximum Output Level |
Monitor Outputs:
-6 dBu |
| Headphone Output Power |
24 mW into 32 Ohms
245 mW into 300 Ohms |
| Impedance |
Hi-Z Inputs:
0.9 Megohm Mic Inputs: 1.3 Kilohms |
| Dynamic Range |
104 dBu
|
| EIN |
-128 dBA
|
| Sample Rates |
44.1 / 48 / 88.2 / 96 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Latency |
Zero-Latency Direct Monitoring
|
| Clocking |
Internal:
|
