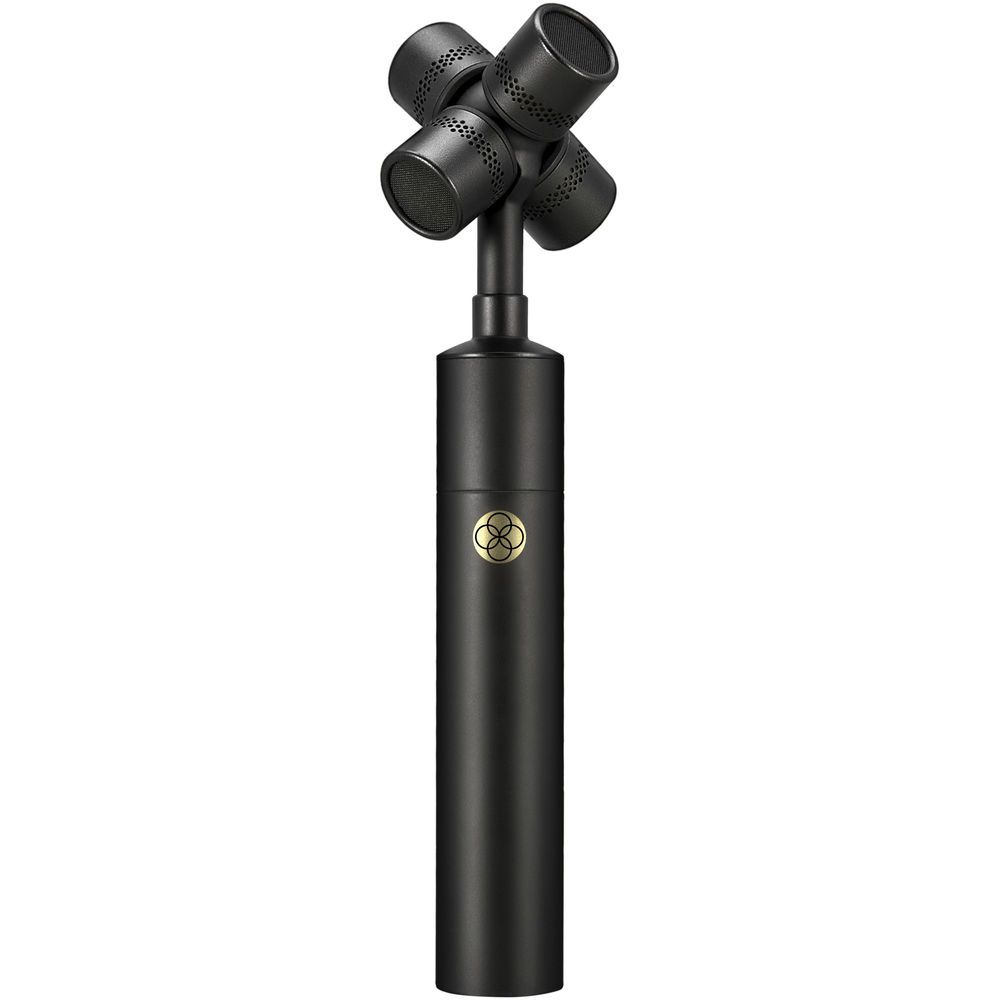

RODE NT-SF1 TRUE CONDENSER AMBISONIC MICROPHONE KIT WITH WINDSHIELD, FURRY, SHOCKMOUNT AND CUSTOM MOGAMI CABLE
The Rode SoundField NT-SF1 is an ambisonic microphone designed to provide clear and accurate reproduction of 360° sound for recordists in VR, film production, and audio for video games. It features four 1/2" TF45C cardioid condenser capsules arranged in a tetrahedral array, wired to an XLR 10-pin connector for four-channel, A-format output. Each capsule is powered via 48 VDC phantom power and delivers a frequency response of 20 Hz to 20 kHz. Flexible B-format manipulation of polar patterns and output format is supported through the downloadable SoundField by Rode ambisonic processor plug-in. The NT-SF1 includes a custom shockmount, a spherical windscreen, a furry wind cover, and a breakout cable that converts the XLR 10-pin output to four standard XLR 3-pin connectors.
RODE NT-SF1 Specs
| Sound Field |
Tetrahedral
|
| Element Type |
4x Condenser
|
| Polar Pattern |
Cardioid
|
| Circuitry |
Solid-State
|
| Pad |
No
|
| High-Pass Filter |
No
|
| Frequency Range |
20 Hz to 20 kHz
|
| Maximum SPL |
129 dB SPL
|
| Impedance |
63 Ohms
|
| Sensitivity |
-30.4 dBV/Pa
|
| Equivalent Noise Level |
15 dB A-Weighted
|
| Analog Output |
1x XLR 10-Pin (on Mic)
4x XLR 3-Pin (on Included Cable) |
| Power Sources |
Phantom Power
|
| Operating Voltage |
48 V
|
| Dimensions |
ø: 1.8 x L: 7.57" / ø: 45.72 x L: 192.3 mm
|
| Weight |
10.09 oz / 286 g
|
