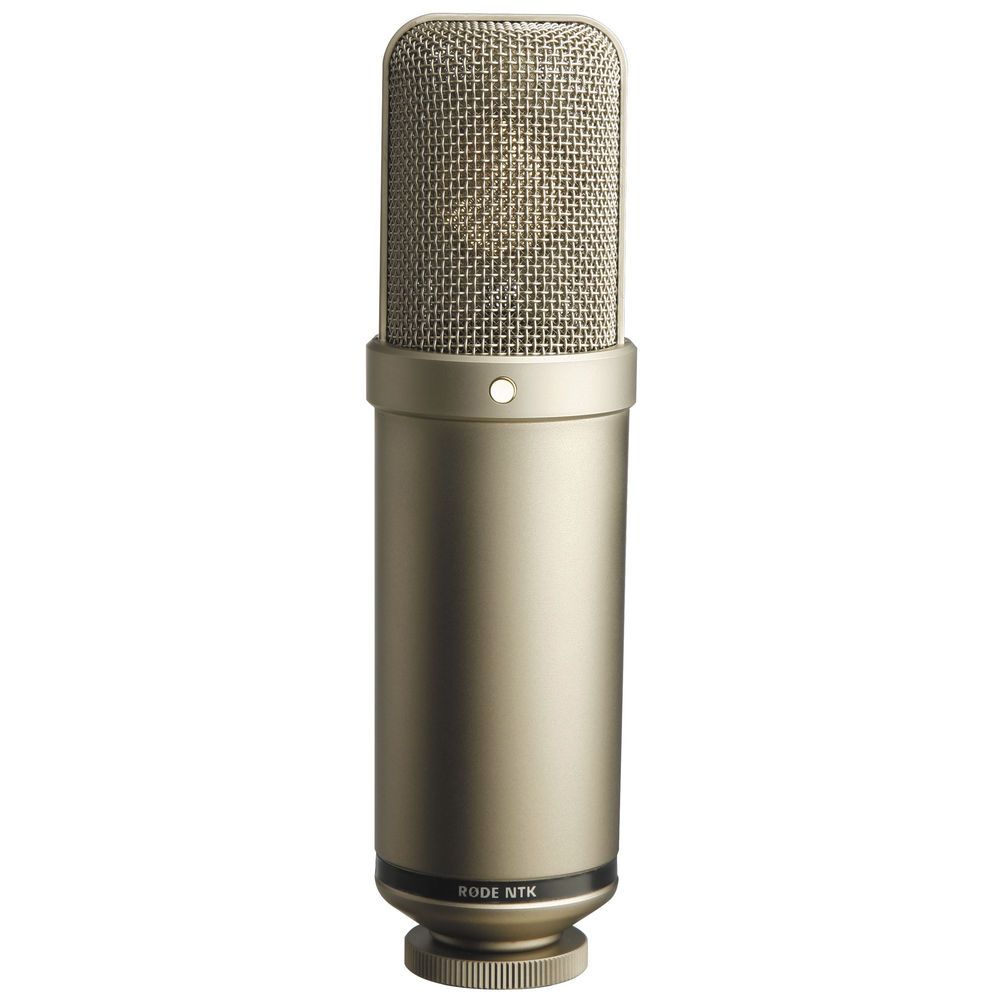

RODE NTK VERSATILE CLASS A VALVE 1" CARDIOID CONDENSER MICROPHONE
The Rode NTK Valve 1" Condenser Microphone is a large-diaphragm condenser microphone, which employs Class-A valve circuitry resulting in a warm sonic character. Sporting a cardioid polar pattern, the NTK is designed for vocal and general instrument recording, while providing the sonic character found in higher-priced tube microphones. The capsule features a mylar dual-diaphragm, sputtered in gold to provide transparent signal reproduction and wide frequency response.
The hand-selected and graded 6922 twin-triode valve comprises the core of the NTK's circuitry, providing an analog "warmth" and presence that meets the standards of the most demanding engineers. The microphone features a custom-built, Mu-metal transformer developed by Jensen Transformers. The end result is quiet, noise-free output at high-gain levels. The NTK includes a separate power supply.
RODE NTK Specs
| Primary Applications |
Studio Recording
|
| Form Factor |
Stand/Boom Mount
|
| Sound Field |
Mono
|
| Element Type |
Condenser
|
| Diaphragm |
1.0" / 25.40 mm
|
| Polar Pattern |
Cardioid
|
| Orientation |
Side Address
|
| Circuitry |
Tube
|
| High-Pass Filter |
Yes
|
| Gain Adjustment |
No
|
| Frequency Range |
20 Hz to 20 kHz
|
| Maximum SPL |
158 dB SPL
|
| Impedance |
200 Ohms
|
| Sensitivity |
-38 dB at 1 kHz
|
| Equivalent Noise Level |
12 dB A-Weighted
|
| THD |
1%
|
| Analog Output |
1x XLR 7-Pin Male (on Mic)
1x XLR 3-Pin Male (on Power Supply) |
| Inputs |
1x XLR 7-Pin Female (on Power Supply)
|
| Power Sources |
External PSU
|
| Color |
Silver
|
| Dimensions |
ø: 2.17 x L: 8.19" / ø: 55 x L: 208 mm
|
| Weight |
26.81 oz / 760 g
|
