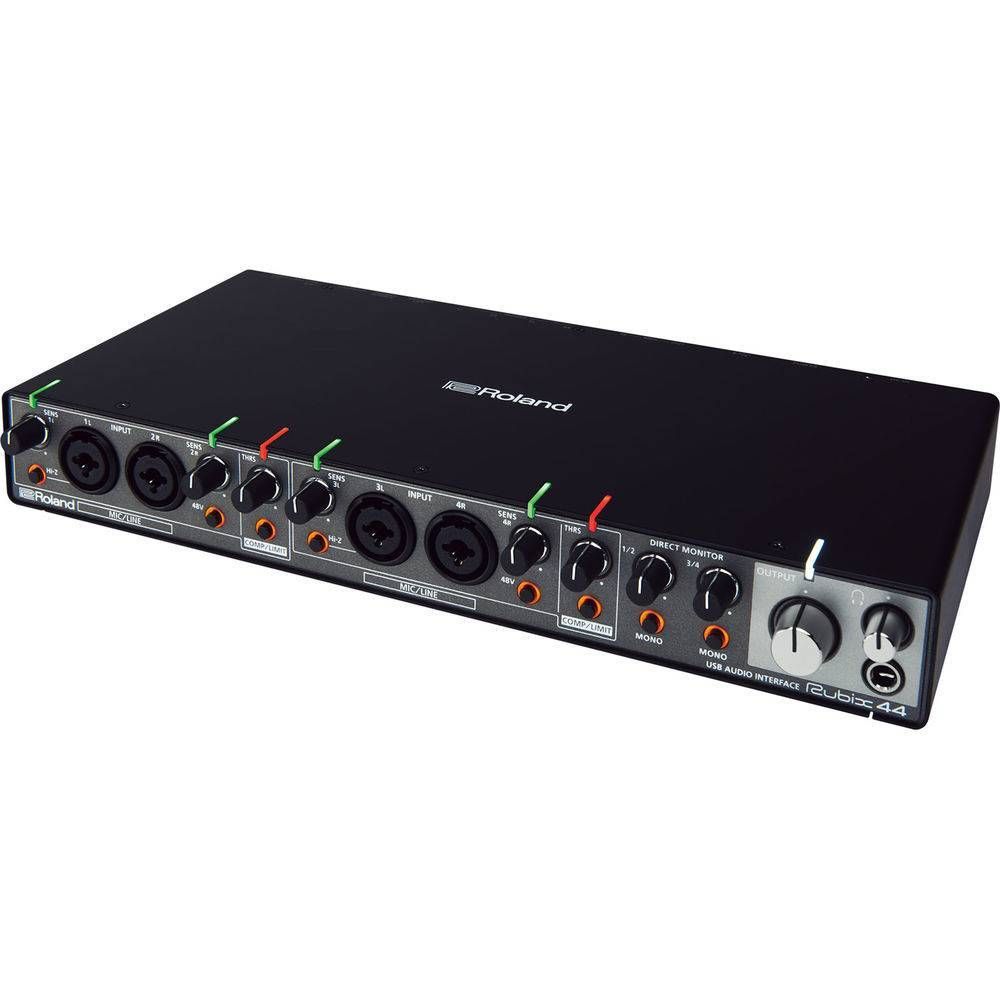

The 4-in/4-out Rubix44 USB audio interface from Roland offers a balance of high-fidelity sound, solid build quality, compact size, and powerful features, which give you studio-grade performance just about anywhere you choose to record. The Rubix44 is equipped with four low-noise mic preamps and two Hi-Z jack inputs for guitars or other high-impedance sources. It supports audio resolution up to 24-bit/192 kHz and features class-compliant Mac and Windows drivers for low latency. Four individual balanced outputs give you additional options for routing audio to external gear or setting up a stage monitor.
Specs
Display |
None
|
Channels of I/O |
4 Input / 4 Output
|
Built-In DSP |
Yes
|
Maximum Sampling Rate |
192 kHz / 24-Bit
|
Number of Microphone Preamps |
4 Preamps
|
Built-In Microphone |
None
|
Gain/Trim Range |
Line Inputs:
-44 to +4 dBu Mic Inputs: -60 to -12 dBu |
Analog Audio I/O |
2 x Combo XLR-1/4" TRS Mic Input
2 x Combo XLR-1/4" TRS Mic/Line Input 1 x 1/4" TRS Headphone Output 4 x 1/4" TRS Balanced Line Output |
Digital Audio I/O |
None
|
Host Connection |
1 x USB-B
|
Host Connection Protocol |
USB 2.0
|
USB (Non-Host) |
None
|
Sync I/O |
None
|
Network I/O |
None
|
MIDI I/O |
1 x DIN 5-Pin Input
1 x DIN 5-Pin Output |
Maximum Input Level |
Line Inputs:
+18 dBu Mic Inputs: +2 dBu |
Headphone Output Power |
20 mW per Channel into 47 Ohms
|
Impedance |
Headphone Outputs:
47 Ohms Hi-Z Inputs: 500 Kilohms Line Inputs: 15 Kilohms Mic Inputs: > 4 Kilohms (Balanced) Outputs: 2 Kilohms (Unbalanced) |
Dynamic Range |
A/D Converters:
104 dB D/A Converters: 109 dB |
THD+N |
-94 dBu
|
Sample Rates |
44.1 / 48 / 96 / 192 kHz (AD/DA Conversion)
|
Bit Depths |
24-Bit
|
OS Compatibility |
Windows 7
Windows 8 Windows 8.1 Windows 10 macOS 10.10 or Later iOS 9 or Later *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Included Software |
None
|
Mobile App Compatible |
No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Mobile Device Compatibility |
iPad
iPhone |
