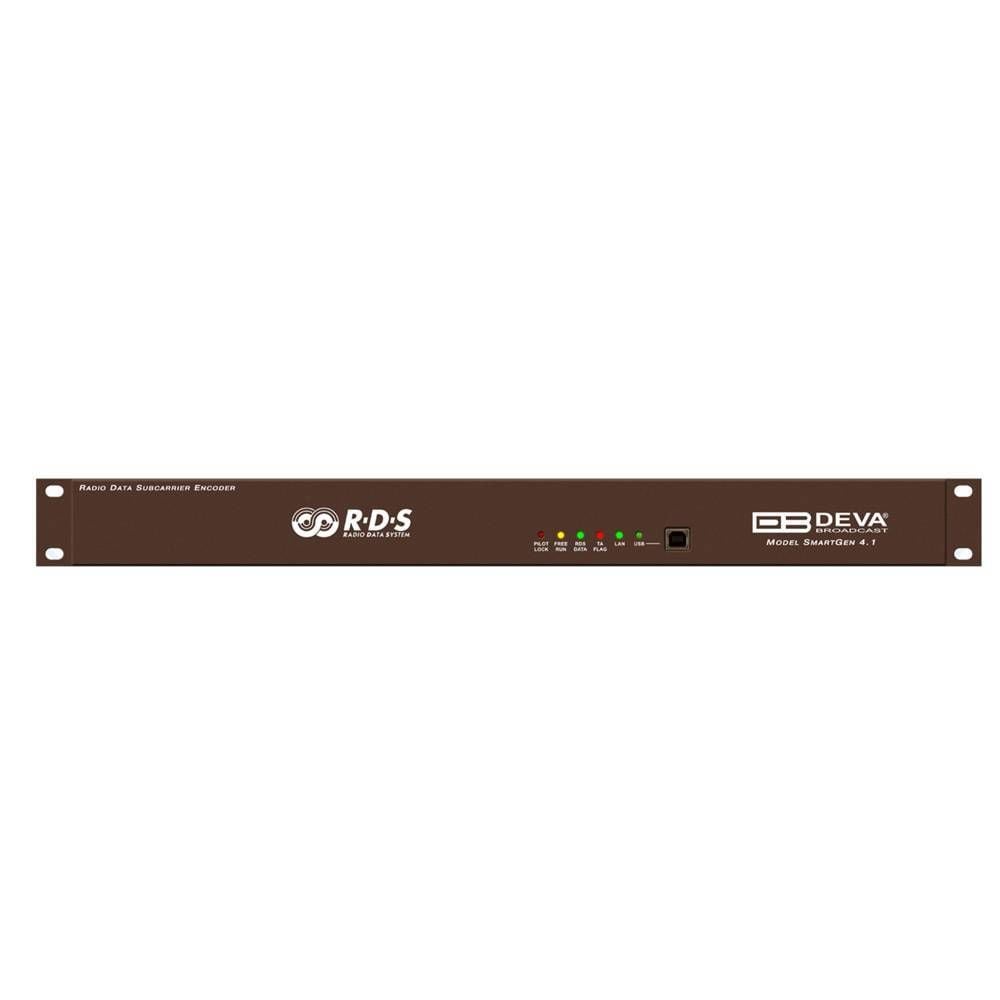

DEVA RDS-SG41 SMARTGEN 4.1 - UECP COMPATIBLE RDS/RBDS ENCODER WITH LAN & USB CONNECTIVITY
SKU
DEVSMARTGEN4.1
MFR#
RDS-SG41
was
$1,295.00
Special Price
$1,165.50
Availability:
In stock
The SmartGen 4.1 is a fully-functional RDS/RBDS encoder that supports all service IDs and offers simultaneous scrolling-PS, RadioText messaging and the interactive function RT+ for song tagging. SmartGen 4.1 is the most efficient solution for sending TMC and EWS Services. It supports both the European CENELEC and United States NRSC standards.
The SmartGen 4.1 is a full-fledged RDS/RBDS encoder that supports both European CENELEC and United States NRSC standards. It supports all service IDs and offers simultaneous scrolling-PS and RadioText messaging. SmartGen 4.1 is fully compatible with the latest UECP EBU SPB490 Version 7.05. The interactive function RT+ for song tagging is fully supported without a compromise. Based on the latest RDS technology, the SmartGen 4.1 is fully digitally designed for 24/7/365 operation. The SmartGen 4.1 is the most cost-effective solution for sending of TMC and EWS Services.
SmartGen 4.1 gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the station’s other networked functions, including message streaming for digital radio and Webcasting. The SmartGen 4.1 encoder provides a full loopt-hrough interface for connection to your existing broadcast chain. The SmartGen 4.1 can 'parse' scrolling text, automatically breaking the phrases into word groups.
Programming software:
Based on our more than 15 years of experience in the RDS field, the SmartGen RDS/RBDS Encoders Manager was developed as a dedicated software for full management of our high-end RDS Encoders range as regards to the latest updates of the UECP EBU SPB490 Version 7.05
It supports a wide range of interfaces as RS-232, USB and LAN. The SmartGen Manager has “Basic RDS” and “Advanced RDS” programming interfaces. Using its “Basic” Mode, all main RDS parameters can be easily programmed into the non-volatile memory of the RDS Encoder. The interactive simulator shows the outgoing scrolling messages exactly as they are displayed to the listeners.
The SmartGen RDS/RBDS Encoders Manager has all the functionalities required to drive any parameter by the latest version of the UECP EBU SPB490 Version 7.05. Its visual and self-guided user interface makes the UECP advanced programming of the SmartGen Encoders easy and user-friendly.
Features:
- Supports European CENELEC and United States NRSC standards
- Attractive price and very good price-performance ratio
- Supports RT+ for songs and content tagging
- PS & Radio Text Scrolling Options
- Supports TMC (Traffic Message Channel)
- Compatible with EWS (Emergency Warning System)
- Embedded WEB server for interactive supervision
- Fully Digital Synthesis of RDS signal
- Fully compatible with UECP EBU SPB490 Version 7.05
- MPX Loopthrough & Sidechain Modes
- Internal or external Pilot / MPX synchronisation
- Very Intuitive UECP Configuration Software
- Remote RDS viewer to visualize broadcasted data
- Proved and reliable hardware for 24/7/365 operating
- Easy Installation and Setup
- LAN & USB Programming Interfaces
- Remote configuration via ASCII or UECP through LAN or USB
- Interfaces with all popular radio automation systems
- Built-in dedicated 19kHz source for internal sync
- Built-in failsafe bypass relay
- Includes the TA function for traffic message priority override
- Works with any FM exciter and stereo generator
- SNTP for automatic synchronization of the built-in clock
- Internal data diagnostics and transmission safeguards
- Real time clock Schedules for Scrolling Text and text lists
- 19" Professional Case for high RF immunity
Specifications:
| Technical Specifications | |
| Pilot/MPX Input | Yes |
| MPX/RDS Output | 0 to 4095 mV |
| Inputs/Outputs | No |
| Communication Port | USB, LAN |
| Synchronization | External (Pilot or MPX) / Internal / Auto |
| Synchronization Monitoring | Yes |
| RDS Level adjustment | Digitally controlled |
| Phase adjustment | Yes, 0 ÷ 359.9° |
| Separate outputs for RDS+MPX and for RDS only | No |
| Command to activate the RDS SCA | Yes |
| Side Chain Mode, Loop through mode, Bypass feature | Yes |
| RDS Subcarrier | 100% Digitally Generated Shape / Bypass: 0 dB |
| Pilot synchronization | Input Level: -50dBu to +12dBu / Frequency: 19kHz, ±3Hz |
| EN50067 compliant | Yes |
| Accurate Clock Time (CT) Sync with Internet Connection | Yes |
| Remote TA actuation for Traffic Announcements | Yes |
| GPS module for automatic synchronization of the built-in clock | No |
| Fully independent RDS decoder for self-monitoring purposes | No |
| Firmware can be upgraded in the field | Yes |
| Front-panel LCD displays all programmed data | No |
| Data may be entered on-site with Front-panel Buttons | No |
| Operating Temperature | 0°C ÷ 55°C |
| RDS Features | |
| Group supported | All |
| Group Sequence | Configurable |
| PS | 4 DSN x 4 PSN |
| PI | 4 DSN x 4 PSN |
| PTY | RDS/RBDS |
| AF Method A | 25 |
| AF Method B | up to 50 |
| RT | Yes, 5 messages |
| RT rate adjustment | Group Sequence |
| RT+ for songs and content tagging | Yes |
| TP | Yes |
| TA Control | Command, Software |
| PTYN | Yes |
| EON | 4 PSN |
| CT | Yes |
| TMC, EWS, IH, TDC | Yes |
| Free Format Groups (FFG) | Yes |
| Open Data Application (ODA) | Yes |
| 64-character Dynamic PS shown on all RDS/RBDS Radios | Yes |
| Auto "parses" long messages for best text display | Yes |
| Scrolling by character | from 1 up to 8 |
| Scrolling by word, Auto centering, Truncate long words | Yes |
| Communication | |
| Communication Interfaces | USB, LAN |
| Connection with Automation Software | Yes |
| Network Connectivity | 2 TCP ports; 2 UDP ports |
| Scheduler | Yes |
| Configuration | Embeded Web Server, SmartGen Manager |
| Password Protection | Yes |
| ASCII Protocol | Yes |
| UDP, TCP, HTTP, SNTP | Yes |
| Alert notifications on user-defined events via SNMP traps or E-mails | No |
| Embedded SNMP agent permitting active management tasks | No |
| Custom HTML formatted E-mail templates with dynamic variables | No |
| Supported Network Protocols: | HTTP, SNTP, UDP, TCP, UPnP |
| UECP Protocol | Fully compliant with EBU SPB490 Ver.7.05 |
| PI <=> CALL Calculator | Yes |
| Remote Display | Yes |
| Supplied with Intuitive Software | Yes |
| Comes with 2-years Limited Warranty | Yes |
| Power | |
| Voltage | Internal 100 - 240V; 50 - 60Hz |
| Power Consumption | 5VA |
| Connector | IEC320, Fused and EMI-suppressed |
| Size and Weight | |
| Dimensions (W;H;D) | 485 x 44 x 180 mm |
| Shipping Weight | 540 x 115 x 300 mm / 2.050 kg |
| HS Code | 8527212000 |
