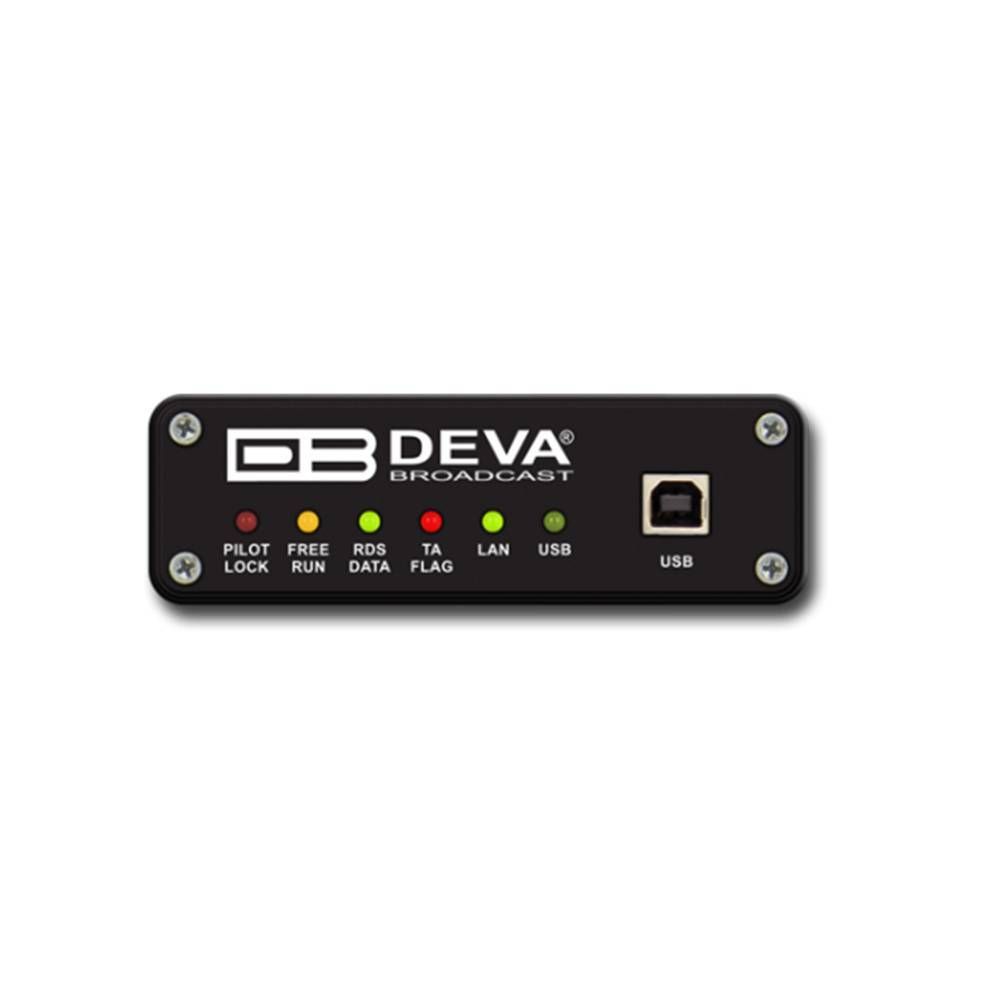

DEVA RDS-MINI SMARTGEN MINI - UECP COMPATIBLE, COMPACT RDS/RBDS ENCODER WITH LAN & USB CONNECTIVITY
SKU
DEVSMARTGENMINI
MFR#
RDS-MINI
was
$850.00
Special Price
$765.00
Availability:
In stock
The SmartGen Mini is the easiest and most inexpensive solution for your station for RDS/RBDS. The USB and LAN connectivity allows programming of the non-volatile memory, using any PC and the supplied Windows® software.
The built-in USB, TCP/IP, UDP/IP interfaces grants full integration of RDS/RBDS transmissions with the station’s other network functions. The interactive function RT+ for song tagging is fully supported. The SmartGen Mini also is an impressive, cost-effective solution for sending TMC and EWS Services. And the unit can be easily set up anywhere via the WEB Interface or the dedicated SmartGen RDS/RBDS Encoders Manager and then taken to the transmitter site for installation.
The SmartGen Mini will identify your station by format, display your station's "street name" and continuously transmit any station promo or, alternatively, an advertising message to your listeners. Overall the SmartGen Mini is an extremely useful and powerful RDS encoder in a small package.
The SmartGen Mini is the most cost-effective solution for sending of TMC and EWS Services. It supports both European CENELEC and United States NRSC standards and is fully compatible with the latest UECP EBU SPB490 Version 7.05
SmartGen Mini gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the station’s other networked functions, including message streamings for digital radio and Webcasting. The SmartGen Mini encoder provides a full loop-through interface for connection to your existing broadcast chain. The SmartGen Mini can 'parse' scrolling text, automatically breaking the phrases into word groups.
The SmartGen Mini has all the RDS features that you could possibly need and that at an incredible price.
PROGRAMMING SOFTWARE:
Based on our more than 15 years of experience in the RDS field, SmartGen RDS/RBDS Encoders Manager was developed as a dedicated software for full management of our high end RDS Encoders range as regards to the latest updates of the UECP EBU SPB490 Version 7.05
Features:
- Supports European CENELEC and United States NRSC standards
- Attractive price and very good price-performance ratio
- Supports RT+ for songs and content tagging
- PS & Radio Text Scrolling Options
- Supports TMC (Traffic Message Channel)
- Compatible with EWS (Emergency Warning System)
- Embedded WEB server for interactive supervision
- Fully Digital Synthesis of RDS signal
- Fully compatible with UECP EBU SPB490 Version 7.05
- MPX Loopthrough & Sidechain Modes
- Internal or external Pilot / MPX synchronisation
- Very Intuitive UECP Configuration Software
- Remote RDS viewer to visualize broadcasted data
- Proved and reliable hardware for 24/7/365 operating
- Easy Installation and Setup
- LAN & USB Programming Interfaces
- Remote configuration via ASCII or UECP through LAN or USB
- Interfaces with all popular radio automation systems
- Built-in dedicated 19kHz source for internal sync
- Built-in failsafe bypass relay
- Includes the TA function for traffic message priority override
- Works with any FM exciter and stereo generator
- SNTP for automatic synchronization of the built-in clock
- Internal data diagnostics and transmission safeguards
- Real time clock Schedules for Scrolling Text and text lists
- Compact and Robust Aluminum Case for high RF immunity
Specifications:
| Technical Specifications | |
| Pilot/MPX Input | Yes |
| MPX/RDS Output | 0 to 4095 mV |
| Inputs/Outputs | No |
| Communication Port | USB, LAN |
| Synchronization | External (Pilot or MPX) / Internal / Auto |
| Synchronization Monitoring | Yes |
| RDS Level adjustment | Digitally controlled |
| Phase adjustment | Yes, 0 ÷ 359.9° |
| Separate outputs for RDS+MPX and for RDS only | No |
| Command to activate the RDS SCA | Yes |
| Side Chain Mode, Loop through mode, Bypass feature | Yes |
| RDS Subcarrier | 100% Digitally Generated Shape / Bypass: 0 dB |
| Pilot synchronization | Input Level: -50dBu to +12dBu / Frequency: 19kHz, ±3Hz |
| EN50067 compliant | Yes |
| Accurate Clock Time (CT) Sync with Internet Connection | Yes |
| Remote TA actuation for Traffic Announcements | Yes |
| GPS module for automatic synchronization of the built-in clock | No |
| Fully independent RDS decoder for self-monitoring purposes | No |
| Firmware can be upgraded in the field | Yes |
| Front-panel LCD displays all programmed data | No |
| Data may be entered on-site with Front-panel Buttons | No |
| Operating Temperature | 0°C ÷ 55°C |
| RDS Features | |
| Group supported | All |
| Group Sequence | Configurable |
| PS | 4 DSN x 4 PSN |
| PI | 4 DSN x 4 PSN |
| PTY | RDS/RBDS |
| AF Method A | 25 |
| AF Method B | up to 50 |
| RT | Yes, 5 messages |
| RT rate adjustment | Group Sequence |
| RT+ for songs and content tagging | Yes |
| TP | Yes |
| TA Control | Command, Software |
| PTYN | Yes |
| EON | 4 PSN |
| CT | Yes |
| TMC, EWS, IH, TDC | Yes |
| Free Format Groups (FFG) | Yes |
| Open Data Application (ODA) | Yes |
| 64-character Dynamic PS shown on all RDS/RBDS Radios | Yes |
| Auto "parses" long messages for best text display | Yes |
| Scrolling by character | from 1 up to 8 |
| Scrolling by word, Auto centering, Truncate long words | Yes |
| Communication | |
| Communication Interfaces | USB, LAN |
| Connection with Automation Software | Yes |
| Network Connectivity | 2 TCP ports; 2 UDP ports |
| Scheduler | Yes |
| Configuration | Embeded Web Server, SmartGen Manager |
| Password Protection | Yes |
| ASCII Protocol | Yes |
| UDP, TCP, HTTP, SNTP | Yes |
| Alert notifications on user-defined events via SNMP traps or E-mails | No |
| Embedded SNMP agent permitting active management tasks | No |
| Custom HTML formatted E-mail templates with dynamic variables | No |
| Supported Network Protocols: | HTTP, SNTP, UDP, TCP, UPnP |
| UECP Protocol | Fully compliant with EBU SPB490 Ver.7.05 |
| PI <=> CALL Calculator | Yes |
| Remote Display | Yes |
| Supplied with Intuitive Software | Yes |
| Comes with 2-years Limited Warranty | Yes |
| Power | |
| Voltage | External, 12V / 0.5A |
| Power Consumption | 5VA |
| Connector | Power Jack 5.5mm |
| Size and Weight | |
| Dimensions (W;H;D) | 120 x 31 x 103 mm |
| Shipping Weight | 230 x 54 x 172 mm / 0.580 kg |
| HS Code | 8527212000 |
