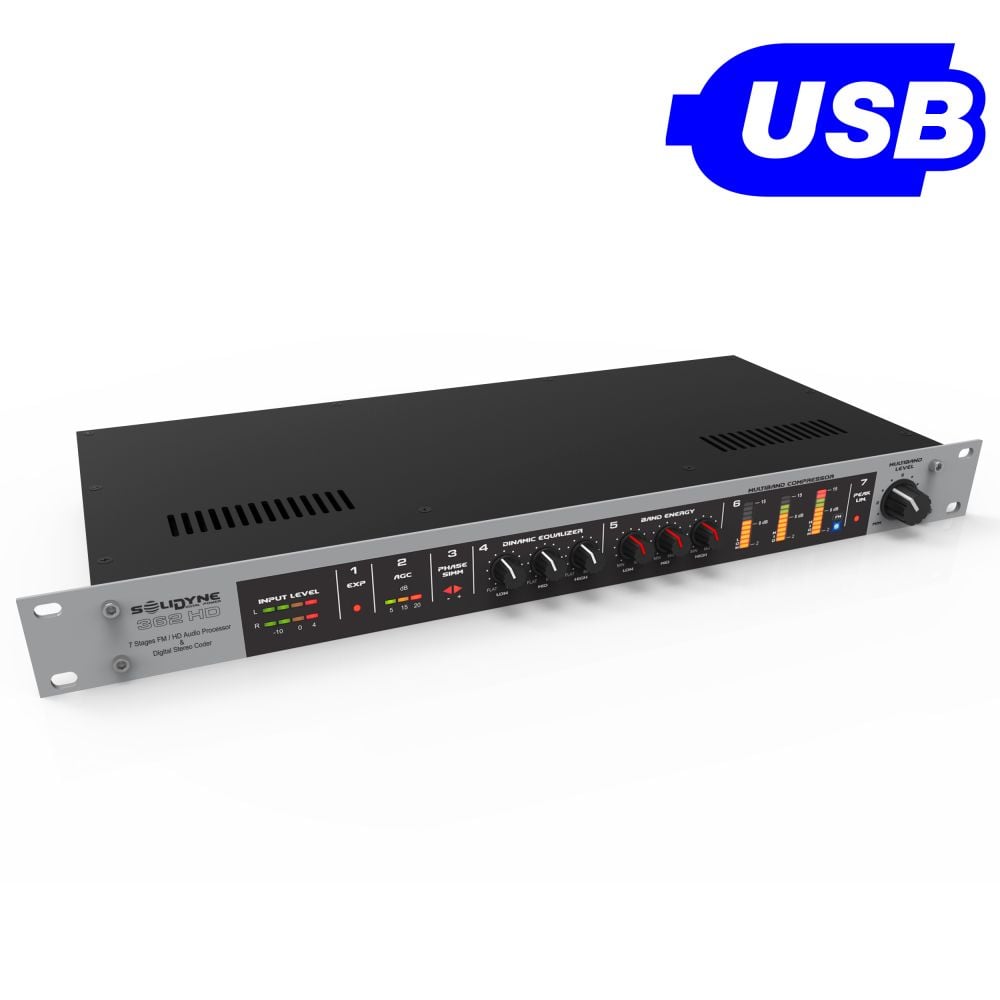

SOLIDYNE AUDIMAX362HD/USB ANALOG FM W /USB OPTION I/O FOR PC , 7 STAGES AUDIO PROCESSOR WITH DIGITAL STEREO CODER, 16X OVERSAMPLING, A NEW PROPRIETARY SOLIDYNE TECHNOLOGY. FOR THE PEOPLE WHO LOVES TH
SKU
SOL-362HD-USB
MFR#
362HD/USB
$2,090.00
Availability:
Out of stock
SOLIDYNE 362HD 3 BAND AUDIO PROCESSOR MPX ENCODER WITH USB AUDIO
Increases your radio's coverage area by over 30% with the great analog sound, Hi-End, smooth and velvety, that recording studios and vinyl enthusiasts today still prefer.
Dual operation in FM or HD (High Definition) mode, without pre-emphasis, allowing it to be used for streaming and recording studios.
Analog (standard) or digital inputs and outputs via USB.
It is veryeasy to adjust. You don't need to be a technician to do it. It always sounds good in any setting. No possible errors.
To make your analog sound perfect and melodious on FM, we have used a digital stereo encoder with oversampling at 608 kHz, something unique in the world.
The two MPX outputs are floating differentials to cancel background hum.
It is the best-selling processor in 60 countries due to its remarkable technology, balanced design, and affordable price.
Includes USB audio interface compatible with Windows, OSX (Mac) and Linux
Audio Processor Specs
| Inputs | 1-XLR3 connector, level self-adjusted 0 dBu to + 15 dBu 600 ohms balanced. 2-RCA unbal, level self adjusted -15 to 0 dBu, 10K. 3-RJ45 stereo balanced (compatible with StudioHUB, Axia, etc) 0 dBu to + 15 dBu, 600 ohms balanced. All with R internal > 10 Kohms 4-Optional digital stereo USB input for PC direct connection |
| Outputs | 1-Analog Balanced, +4 dBu; Z= 600 / 10 Kohms, with de-emphasis (flat response) 2-Optional USB digital stereo input (flat response) for direct connection to PC |
| Frequency Response | 20 – 16,000Hz +/- 0.5dB Measured below compression & limiter threshold. |
| Harmonic Distortion | Below 0.02% @ 30-15,000Hz |
| Noise | Below – 90 dBA ref 100% modulation |
| Stereo Separation | > 75 dBA |
| Subsonic Filter | Chebyshev 2th order, 15 Hz |
| Asymmetry Canceling | 5:1 voice asymmetry reduction, using Khann-Bonello algorithm. |
| Expander | 5 bands low level expander |
| AGC (wide band) | VCA controlled, 30 dB range, 3 sec attack/release |
| Multiband Compressors | 3 bands, 18 dB/octave, Linear Phase crossover, Compressors: 30 dB range, 5:1 slope, VCA controlled, Automatic attack time, Release time user controlled by 3 x ENERGY controls |
| IM Canceled - Clipper | IM clipper cancellation > 30 dB below 250 hz |
| Dynamic EQ | 0 – 12 dB dynamic boost at Low, Mid and High Frequency Front panel user controlled |
| Proccesing | 7 stages of processing devices |
| Power | 115 V / 230 V (rear switch selected) 50/60 Hz, 20 W |
| Dimensions | 19″ rack mount. Module one (44.4 mm) // weight 3 Kg Net; (4 Kg for courier freight) |
Stereo Coder – Digital with 16x oversampling (608 kHz)
| Audio input | 2 Vpp for 100 % MPX output (4 Vpp) |
| MPX output | Two MPX outputs with individual level control with preset at rear side Differential output, BNC connector, floating ground 50 ohms. Allows 45dB canceling buzz & noise due to ground loops Level of each output adjustable from 0.5 to 4 Vpp 600/10 kohms |
| Frequency Response | 20-15000 +/- 0.2 dB, plus 15 Khz/5 order elliptic, Active FDNR, LP filter Attenuation at 19 kHz> 50 dB |
| Harmonic Distortion | From 30-12.000 Hz, below 0,005% Measured using Belar Digital Stereo decoder DSD-1A and Tektronix 5L4 N Spectrum Analyzer. |
| Signal to Noise ratio | Better than 90 dBA with reference to 100% modulation Measured using Belar Digital Stereo decoder model DSD-1A. |
| Stereo Separation | > 65 dB at 1kHz |
| 38 Khz suppression | Below - 70 dB Ref 100% modulation |
| 57, 76 & 95 Khz suppression | Below - 75 dB Ref 100% modulation |
| Pilot tone stability | +/- 0.002% (+/- 0.5 Hz) |
Audio Processor Specs
| Inputs | 1-XLR3 connector, level self-adjusted 0 dBu to + 15 dBu 600 ohms balanced. 2-RCA unbal, level self adjusted -15 to 0 dBu, 10K. 3-RJ45 stereo balanced (compatible with StudioHUB, Axia, etc) 0 dBu to + 15 dBu, 600 ohms balanced. All with R internal > 10 Kohms 4-Optional digital stereo USB input for PC direct connection |
| Outputs | 1-Analog Balanced, +4 dBu; Z= 600 / 10 Kohms, with de-emphasis (flat response) 2-Optional USB digital stereo input (flat response) for direct connection to PC |
| Frequency Response | 20 – 16,000Hz +/- 0.5dB Measured below compression & limiter threshold. |
| Harmonic Distortion | Below 0.02% @ 30-15,000Hz |
| Noise | Below – 90 dBA ref 100% modulation |
| Stereo Separation | > 75 dBA |
| Subsonic Filter | Chebyshev 2th order, 15 Hz |
| Asymmetry Canceling | 5:1 voice asymmetry reduction, using Khann-Bonello algorithm. |
| Expander | 5 bands low level expander |
| AGC (wide band) | VCA controlled, 30 dB range, 3 sec attack/release |
| Multiband Compressors | 3 bands, 18 dB/octave, Linear Phase crossover, Compressors: 30 dB range, 5:1 slope, VCA controlled, Automatic attack time, Release time user controlled by 3 x ENERGY controls |
| IM Canceled - Clipper | IM clipper cancellation > 30 dB below 250 hz |
| Dynamic EQ | 0 – 12 dB dynamic boost at Low, Mid and High Frequency Front panel user controlled |
| Proccesing | 7 stages of processing devices |
| Power | 115 V / 230 V (rear switch selected) 50/60 Hz, 20 W |
| Dimensions | 19″ rack mount. Module one (44.4 mm) // weight 3 Kg Net; (4 Kg for courier freight) |
Stereo Coder – Digital with 16x oversampling (608 kHz)
| Audio input | 2 Vpp for 100 % MPX output (4 Vpp) |
| MPX output | Two MPX outputs with individual level control with preset at rear side Differential output, BNC connector, floating ground 50 ohms. Allows 45dB canceling buzz & noise due to ground loops Level of each output adjustable from 0.5 to 4 Vpp 600/10 kohms |
| Frequency Response | 20-15000 +/- 0.2 dB, plus 15 Khz/5 order elliptic, Active FDNR, LP filter Attenuation at 19 kHz> 50 dB |
| Harmonic Distortion | From 30-12.000 Hz, below 0,005% Measured using Belar Digital Stereo decoder DSD-1A and Tektronix 5L4 N Spectrum Analyzer. |
| Signal to Noise ratio | Better than 90 dBA with reference to 100% modulation Measured using Belar Digital Stereo decoder model DSD-1A. |
| Stereo Separation | > 65 dB at 1kHz |
| 38 Khz suppression | Below - 70 dB Ref 100% modulation |
| 57, 76 & 95 Khz suppression | Below - 75 dB Ref 100% modulation |
| Pilot tone stability | +/- 0.002% (+/- 0.5 Hz) |
- 1 Solidyne 362HD processor
- 1 Owner's Manual
- 1 power cord (Interlock)
- 1 Warranty card
- 4 Rubber fee
