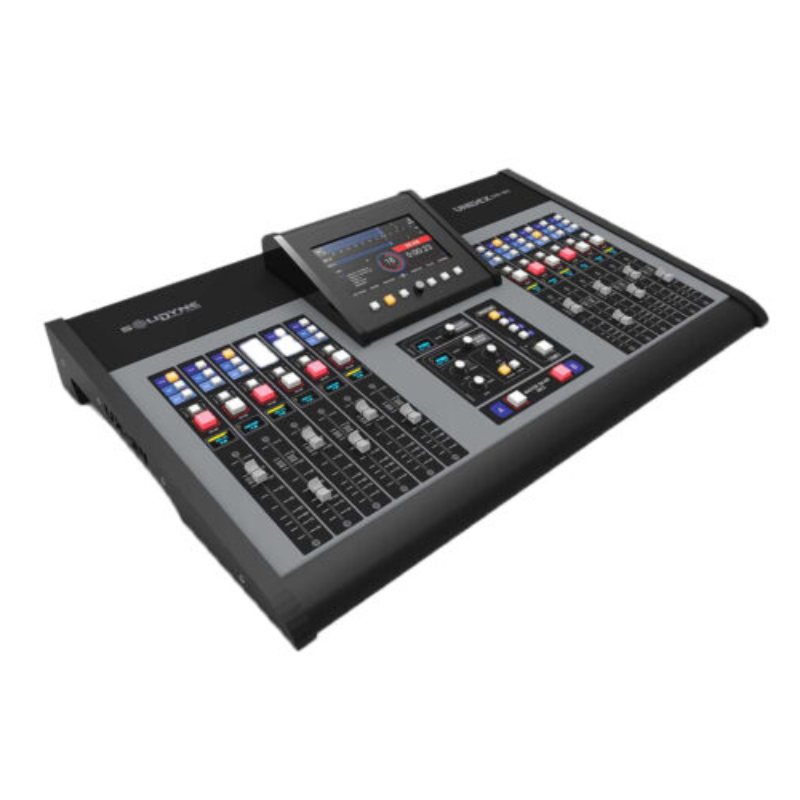

SOLIDYNE UNIDEX UX24 24 CHANNELS ON-AIR WITH 12 FADER AT THE CONSOLE PANEL

Features

• 24 channels console.
• 12 physical channels, 12 virtuals channels
• Optional 18 or 24 faders that can be add in the future by the user.
• 32 inputs.
• Fully routable inputs to channels and buses to physical outputs.
• Multi-scene, multi-user.
• DSP processing for inputs: EQ, Deesser, Dynamics.
• From 4 up to 20 microphones inputs.
• Telco Center for up 8 phones or cellphones.
• 5 digital audio buses: PGM, AUD, AUX, VBUS, and CUE.
• 28 outputs.
• 4x4 stereo USB 2.0 devices.
• Long life professional illuminated push buttons
• Professional faders soft touch of conductive ceramic with 15 years life
• 2 Master Mic button to control 2 TV or radio studios
• HTML 5 web configuration & control included.
• 7" LCD display with touchscreen for control, configuration and operation.
• Integrated streaming: Shoutcast, Icecast, RTP (Barix compatible). Incoming http/rtp stream.
• Option: Dante AES67 version with 16x16 Dante AES67 channels.

UX24 Specs

24 Channels	24 channels; 12 faders on the console panel that can be extended to 24 by adding UX-6 panels; 12 virtual faders operable from built-in touch Screen or any PC connected to the LAN network or from outside the radio station. Preset Scenes: The distribution of the 24 channels and the type of inputs is programmed by the operator. It can have 12 different scenarios programmed to change the distribution and number of channels in each program of the radio/TV station. Mini OLED display in each channel, channel name, stereo input Vumeter, fader level & info
32 Inputs	4 x MIC with phantom 48V // 4 x stereo LIN // 4 x AES3 stereo, 24 bits, all sampling rates using internal Sample Rate Converter // 4 x USB stereo digital. 16 x Unidex supporting 8 stereo lines, 16 additional MICs or 8 Telco systems. Audio Processing independent in each input.
28 Outputs	2 x balanced stereo PGM // 4 x balanced stereo configurable // 8 x unbalanced configurable (mix minus) 4 x stereo AES3, 48 kHz, 24 bit // 4 x USB stereo // 2 x Dual Streaming AoIP stereo 2 x Control room, Stereo Speakers and Headphones // 2 x Announcer's Studio, Stereo Speaker and Headphones + Talkback
GPIO, Intercom, Auxiliary Devices	GPIO= 2 x Tally Light (STUDIO A and B); 12 VDC, 250ma // 4 x GPIO inputs, user configurable ( active high 3.3~15v ) 8 x GPIO Out user configurable (7 x open collector; + 24V @ 250 mA + 1 x 12V DC, 250ma ). AUDIO =1 x Stereo Air Monitor receiver Input // 1x Talkback Input from Studio 1 Talkback Output to Studio // 4 x configurable Intercom channels; front panel keypad N x Intercom PPT (talk-listen) on all TELCO channels with CUE button to talk privately with phone lines, cell phones, Skype, etc.
USB IN / Out	One USB 2.0 output supports 16 channels (4 play/rec virtual cards). ASIO 2.2 compliant driver with playback mix (simultaneous ASIO and WDM playback). It supports both 32-bit and 64-bit ASIO host applications. You can use VST plug-ins Multi-client support (multiple ASIO applications in parallel). Windows 11/10/8/7 (32 & 64 bits) // Volume and mute control through standard Windows GUI.
Audio System Specificaction	24 Channels, 4x stereo bus mix + 1x PFL (CUE) bus 24bitSR@48khz Audio Processing in all user selected channels; 3 & 4 bands Parametric EQ, Expander, Gate, Compressor, Limiter, DeEsser in MICs Auto Mix-minus outputs & Talkback/intercom routing DELAY:1.2 mS (Analog Line to Analog Out) // 1.4 mS (MIC In to Out using EQ + Level processor + De-Esser)
Digital In / Out (AES3, USB, AoIP)	Dynamic Range: 120 dBA Freq Response: 20Hz-20Khz ± 0.1 dB THD: <0.002%
Analog Inputs	Input Level: max = + 26dBu, min = –24dBu, nominal = +4 dBu Dynamic Range: 112 dBA Freq Response: 20Hz-20Khz ± 0.25 dB Harmonic Distortion: THD + N: 0.01%
Microphone Inputs	Input Level: max=-24dBu , min= -75dBu , nominal = -50 dBu /150 ohm NOISE: EIN @ -50dBu input = -125 dBA Freq Response: 20Hz-20Khz ± 0.5 dB Harmonic Distrortion: THD + N: 0.01% Individual + 48v Phantom ON / OFF // Complies with DIN 45596 standard.
Analog Outputs	Support Flexible routing Balanced Output Output Level: Nominal = +4 dBu Max = + 24dBu Dynamic Range: > 110 dBA Freq Response: 20Hz-20Khz ± 0.5 dB Harmonic Distortion: THD: typ 0.005% @ 1Khz
Special Features	Flexibility:The UX 24 can be enlarged in half an hour by adding UX-6 extenders with OLED displays. Built-in Touch Screen. 7 ″ Display 1024 x 600 pixels w / touchscren. Vumeters, On-AIR, Timers, Clock. Channels In/Out Settings + Telco operation + Audio processors.
Dante AES67 Option	This option keeps the stand alone configuration of the UX 24 with the exception of 4 stereo analog LIN inputs and 4 stereo Unidex inputs that are replaced by 16 AoIP inputs. The AoIP outputs are: stereo PGM, REC, AUX, Control Headphones, Studio headphones and 3 stereo channels user-routed. This Dante option manages 16 x 16 channels and is able to work in existing Dante networks up to 512 x 512 channels. With Four Bands MIC EQ In / Out switch; 80 Hz top flat curve, shaped bell 160 Hz, 6.3 kHz bell shaped, flat top 10 kHz Action + 15 dB / -15 dB
Dimensions and Weight	Dimensions: UX24 with 12 faders: 730 mm wide // 455 mm deep (550mm with back cover to hide cables) //130 mm height. UX24 with 24 faders: 1,230 mm wide // same dimensions as 12 faders version. Weight: UX24= 8 Kg // UDX-Adapters= 0.33 Kg each // Kit of RJ45 cables= 4 Kg // Packing BOX of UX24 (12f) + Cables= 15 Kg Packing Box Dimensions (12 faders):850mm x 610mm x 270mm Packing Box Dimensions (24 faders): special wood box of 1400 mm x 650 mm x 350 mm.
International Certifications and Standards	Unidex consoles uses MEPOS Power Supply STFA 61-TO3 With Certifications UL 62368-1, IEC 62368-1, IEC610000-4-2, IEC610000-4-2 Approvals: CE, CB, cRUus, RoHS2 // EMC Emission: EN 55022 (CISPR22)

✓ 1 Solidyne UX24 console
✓ 1 Owner's Manual
✓ 1 Guarantee card
Optional: wiring kit SOLMNGUX24
