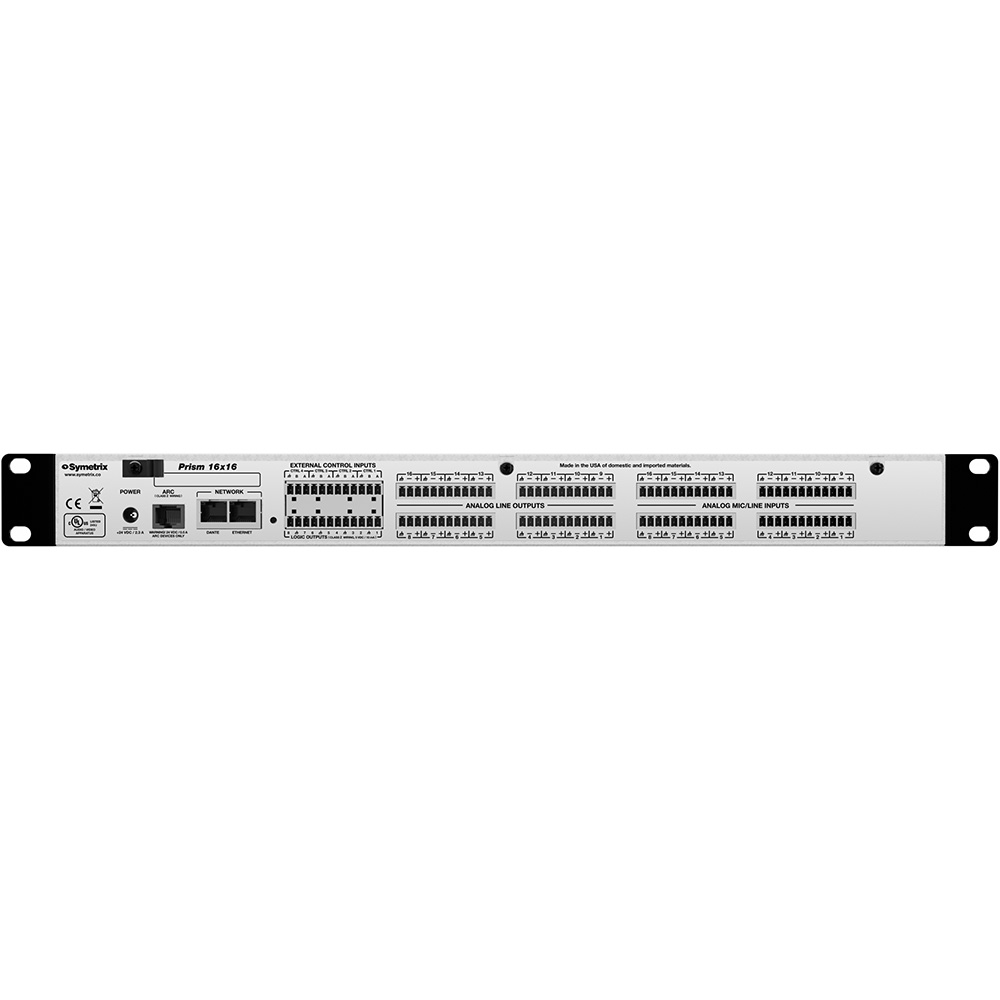

SYMETRIX PRISM 16X16-DANTE PN 80-0117 PROGRAMMABLE DSP, 16 MIC/LINE IN, 16 LINE OUT, 64X64 DANTE ARC
SKU
SYM-PRISM16X16-DANTE
MFR#
80-0117
$5,078.00
Availability:
Out of stock
SYMETRIX PRISM 16X16-DANTE PN 80-0117 PROGRAMMABLE DSP, 16 MIC/LINE IN, 16 LINE OUT, 64X64 DANTE ARC
Prism 0x0, 4x4, 8x8, 12x12 and 16x16 DSPs provide sophisticated state of the art audio signal processing at price points that were unimaginable only a few short years ago. The same uncompromising analog and digital design found in the Symetrix top of the line DSPs is now available across the Prism family.
Features:
- 16 analog in and out, 64x64 Dante and powerful Symetrix DSP reduce overall system costs.
- Ultra low latency Dante network audio protocol uses standard IT infrastructure.
- Industry leading analog and A/D/D/A performance, 48 volt phantom mic power.
- Configured using award winning Composer software. Controlled from ARC wall panels, ARC-WEB and third-party touchscreens. Embedded web server enables remote metering and diagnostics.
- Front panel LCD provides configuration information, system status, and analog audio levels.
Specs:
| ANALOG INPUTS | |
| Number of Inputs | Sixteen (16) switchable balanced mic or line level. |
| Connectors | 3.81 mm terminal blocks. |
| Nominal Input Level | +4 dBu. |
| Maximum Input Level | +23 dBu. |
| Mic Pre-amp gain | 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim. |
| Mic Pre-amp EIN | < -125dB with 150 ohm source impedance. 22.4 kHz BW. |
| CMRR | > 79 dB @ 1 kHz, unity gain. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC, 10 mA maximum. |
| Dynamic range | > 113 dB, A-weighted. |
| THD+Noise | < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4dBu. |
| A to D Latency | 0.28 mS. |
| ANALOG OUTPUTS | |
| Number of Outputs | Sixteen (16) balanced line level. |
| Connectors | 3.81 mm terminal blocks. |
| Nominal Output Level | +4 dBu with 20 dB of headroom. |
| Maximum Output Level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic Range | > 117 dB, A-weighted. |
| THD+Noise | < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output. |
| D to A Latency | 0.60 mS. |
| SYSTEM | |
| Sampling Rate | 48 kHz. |
| Frequency Response (A/D/A) | 20 Hz - 20 kHz, ± 0.5 dB. |
| Dynamic Range (A/D/A) | > 113 dB, A-weighted. |
| Channel Separation (A/D/A) | > 110 dB @ 1 kHz, +24 dBu. |
| THD+Noise | < 95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain. |
| Latency (A/D/A) | 1.04 mS, inputs routed to outputs. |
| Processors | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD. |
| Raw Processing Capacity | 400 MIPS, 1.6 GFLOPS. |
| Delay Memory | 174 mono seconds. |
| Analog control inputs | 0-3.3 VDC. |
| Recommended External Control Potentiometer | 10k Ohm, linear. |
| Logic Outputs | Low (0V) when active, pulled high (5V) when inactive. |
| Logic Output Maximum External Power Supply Voltage | 24 VDC. |
| Logic Output Maximum External Power Supply Current Sinking | 50 mA. |
| Logic Output Maximum Output Current | 10 mA. |
| RS-485 Serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port. |
| Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 meters. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available. |
| Maximum Devices Per System | 80 units per Site File. |
| Maximum Stored Presets | 1000. |
| Mechanical Specifications | |
| Space Required 1U (WDH | 18.91 in. x 9.88 in. x 1.72 in. / 48.02 cm x 25.1 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 24V 2.3A, 56W Maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | |
| Safety | UL 60065, cUL 60065, IEC 60065. |
| EMC | "Class A" device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003 |
| Environmental | RoHS. |
| Shipping Weight | 9.4 lbs. (4.2 kg) |
