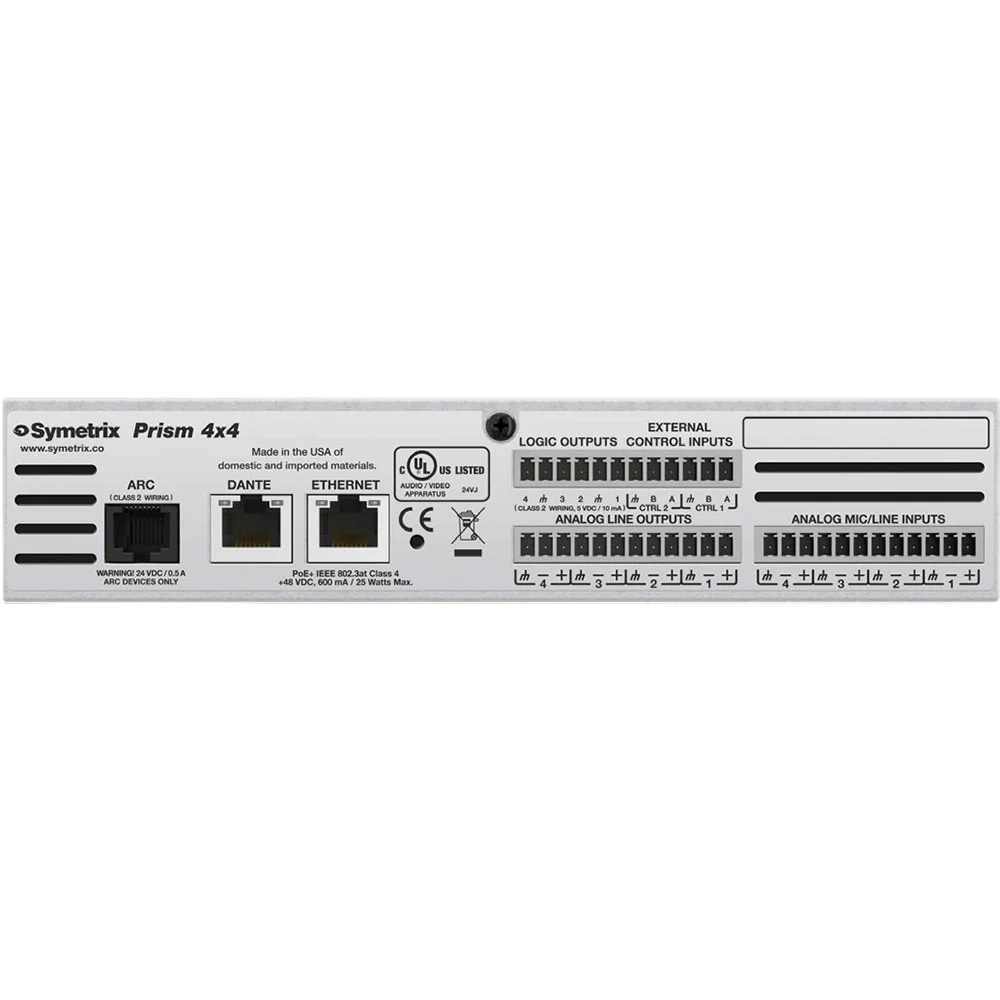

SYMETRIX PRISM 4X4-DANTE PN 80-0114 PROGRAMMABLE DSP, 4 MIC/LINE IN, 4 LINE OUT, PoE+. 64X64 DANTE, ARC, 1/2 RACK WIDTH
SKU
SYM-PRISM4X4-DANTE
MFR#
80-0114
$2,699.00
Availability:
Out of stock
SYMETRIX PRISM 4X4-DANTE PN 80-0114 PROGRAMMABLE DSP, 4 MIC/LINE IN, 4 LINE OUT, PoE+. 64X64 DANTE, ARC, 1/2 RACK WIDTH
Prism DSPs are equipped with 128 (64×64) Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles.
Features:
- DSP Price / Performance Breakthrough
- 128 Channel (64×64) Dante™
- 0x0, 4×4, 8×8, 12×12, and 16×16 Versions
- DSP Processing Identical to Radius / Edge / Solus NX
- Delay Memory Identical to Radius / Edge / Solus NX
Specs
| Analog Inputs | |
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Connectors | 3.81 mm terminal blocks. |
| Nominal Input Level | +4 dBu. |
| Maximum Input Level | +23 dBu. |
| Mic Pre-amp gain | 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim. |
| Mic Pre-amp EIN | < -125dB with 150 ohm source impedance. 22.4 kHz BW. |
| CMRR | > 79 dB @ 1 kHz, unity gain. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC, 10 mA maximum. |
| Dynamic range | > 113 dB, A-weighted. |
| THD+Noise | < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4dBu. |
| A to D Latency | 0.28 mS. |
| Analog Outputs | |
| Number of Outputs | Four (4) balanced line level. |
| Connectors | 3.81 mm terminal blocks. |
| Nominal Output Level | +4 dBu with 20 dB of headroom. |
| Maximum Output Level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic Range | > 117 dB, A-weighted. |
| THD+Noise | < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output. |
| D to A Latency | 0.60 mS. |
| System | |
| Sampling Rate | 48 kHz. |
| Frequency Response (A/D/A) | 20 Hz – 20 kHz, ± 0.5 dB. |
| Dynamic Range (A/D/A) | > 113 dB, A-weighted. |
| Channel Separation (A/D/A) | > 110 dB @ 1 kHz, +24 dBu. |
| THD+Noise | <-95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain. |
| Latency (A/D/A) | 1.04 mS, inputs routed to outputs. |
| Processors | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD. |
| Raw Processing Capacity | 400 MIPS, 1.6 GFLOPS. |
| Delay Memory | 174 mono seconds. |
| Analog control inputs | 0-3.3 VDC. |
| Recommended External Control Potentiometer | 10k Ohm, linear. |
| Logic Outputs | Low (0V) when active, pulled high (5V) when inactive. |
| Logic Output Maximum External Power Supply Voltage | 24 VDC. |
| Logic Output Maximum External Power Supply Current Sinking | 50 mA. |
| Logic Output Maximum Output Current | 10 mA. |
| RS-485 Serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port. |
| Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 meters. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available. |
| Maximum Devices Per System | 80 units per Site File. |
| Maximum Stored Presets | 1000. |
| Mechanical Specifications | |
| Space Required | Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | PoE+ IEEE 802.3at Class 4, 25.5 Watts maximum. No line voltage switching required. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | Safety: UL 60065, cUL 60065, IEC 60065. EMC: “Class A” device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003. Environmental: RoHS. |
| Shipping Weight | 5.2 lbs. (2.4 kg) |
