TASCAM AE-4D AES/EBU DANTE CONVERTER w/BUILT-IN DSP
SKU
TAS-AE-4D
MFR#
AE-4D
was
$799.00
Special Price
$599.00
Availability:
Out of stock

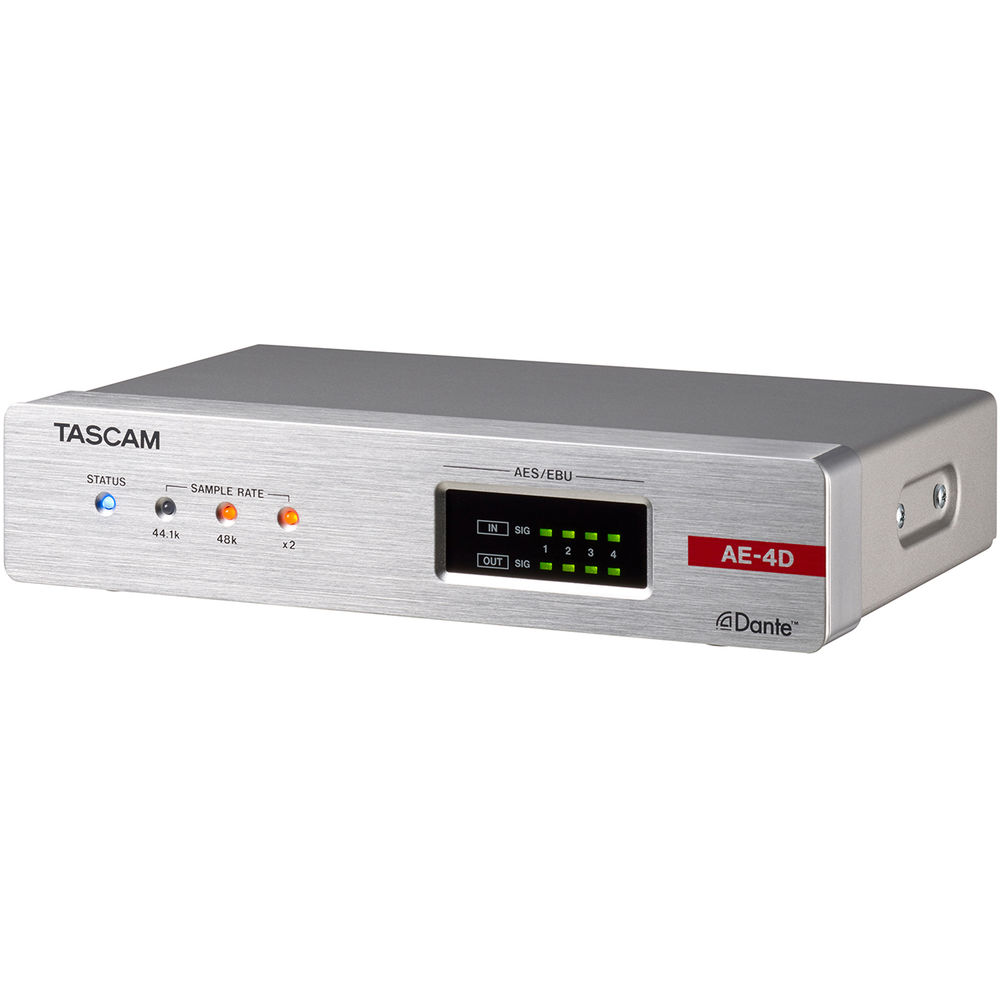

TASCAM AE-4D AES/EBU DANTE CONVERTER w/BUILT-IN DSP
The AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer from TASCAM can be used to convert 4-channel AES/EBU input signals into 4-channel Dante output signals, or the other way around for pro-audio applications.
Key Features
- For PA, SR, and Pro Audio Environments
- 4 x AES/EBU Inputs / Outputs
- 4 x Dante Inputs / Outputs
- Flexible Routing
- PoE (Power over Ethernet) Power Supply
Specs
| Formats Supported |
16/24-Bit, 44.1/48 kHz; 4 Channels
16/24-Bit, 88.2/96 kHz; 2 Channels (Double Speed) |
| Connector |
RJ-45
|
| Transmission Protocol |
Dante
|
| Gigabit Ethernet |
1000 BASE-T (IEEE 802.3ab)
|
| Cable |
Category 5e or Faster STP Cables
|
| Connector |
2 x 3-Pin XLR (Channels 1, 2, 3, and 4) AES/EBU
|
| Input Impedance |
110 Ohms
|
| Format |
AES3-2003/IEC60958-4 (AES/EBU)
|
| Sampling Frequencies |
32 to 192 kHz (Sampling Rate Converter is Always on)
|
| Connector |
2 x 3-Pin XLR Male (Channels 1, 2, 3, and 4) AES/EBU
|
| Output Impedance |
110 Ohms
|
| Format |
AES3-2003/IEC60958-4 (AES/EBU)
|
| Supported Sampling Rate |
44.1, 48, 88.2, and 96 kHz
|
| Power |
PoE class 0
TASCAM PS-P1220E AC Adapter (sold separately) |
| Power Consumption |
3 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
8.4 x 1.7 x 5.4" / 21.4 x 4.4 x 13.6 cm
|
| Weight |
28 oz / 795 g
|
