TASCAM BD-MP1 BLU RAY AND MEDIA PLAYER
SKU
TAS-BD-MP1
MFR#
BD-MP1
was
$599.00
Special Price
$499.00
Availability:
Out of stock

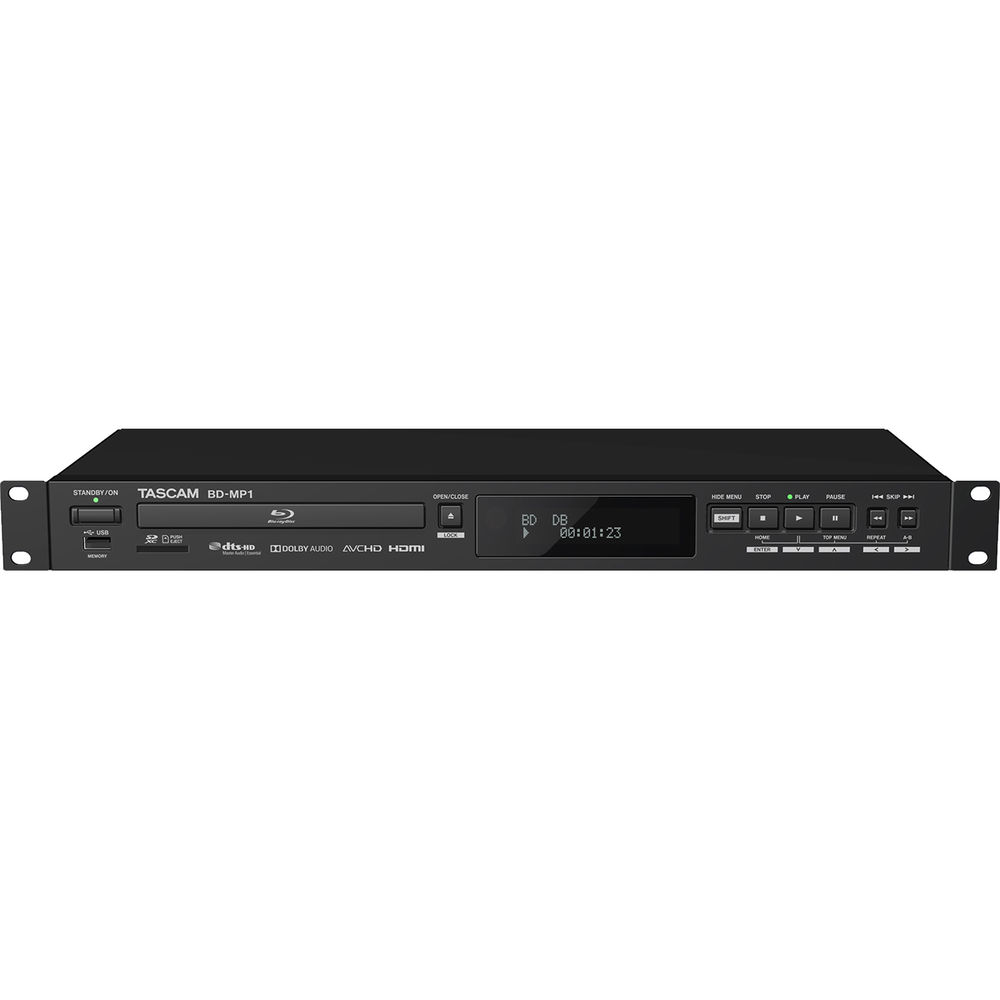

TASCAM BD-MP1 BLU RAY AND MEDIA PLAYER
The Tascam BD-MP1 is a rackmount media player offering playback from Blu-ray, DVD, and CD discs as well as SD cards and USB flash drives, making it ideal for houses of worship, educational institutions, theaters, conference spaces, and more. It supports an array of disc and file formats to accommodate presentation of video, images, and audio.
Key Features
- Blu-ray, DVD, and CD Compatibility
- Playback from SD Card & USB Flash Drives
- Balanced XLR & Unbalanced RCA Outputs
- Digital Coaxial Output
- 7.1 Surround Sound Audio Outputs
- HDMI Output
- Panel, IR & Tray Lock Functions
- Power-On Play and Repeat Mode
- External Control via LAN or RS-232C
- Includes Wireless Remote
Specs
| Frequency Response |
20 Hz to 20 kHz ± 0.5 dB
|
| Dynamic Range |
96 dB
|
| Max Output Level |
+20 dBu (Balanced)
+6 dBv (Unbalanced) |
| I/O Impedance |
Output:
200 Ohms (Balanced) 200 Ohms (Unbalanced) |
| Signal to Noise Ratio |
96 dB
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Total Harmonic Distortion (THD) |
≤0.03%
|
| Bit Depth |
16 / 24-Bit
|
| Bit Rates |
48 to 320 kb/s
|
| System |
NTSC/PAL
|
| Audio I/O |
2 x XLR 3-Pin Male Balanced Analog/Line Output
1 x 2RCA Female Unbalanced Analog/Line Output 8 x RCA Female Unbalanced Analog/Line Output 1 x RCA Female S/PDIF Output |
| Video I/O |
1 x HDMI Output
|
| USB I/O |
2 x USB-A (External Memory)
|
| Network I/O |
1 x RJ45 (Control) In/Out
|
| Control I/O |
1 x DE-9/DB-9RS-232C
|
| Bluetooth |
None
|
| Supported Disc Types |
BD-R, BD-RE, BD-ROM, BD25, BD50, CD-DA, CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-ROM, DVD-RW
|
| Audio File Formats |
AAC, APE, FLAC, MP3, WAV, WMA
|
| Max Supported Storage Capacity |
USB: 2 TB
SD: 32 GB |
| Supported File Systems |
FAT16, FAT32, NTFS
|
| Multi-Channel Audio Decoding |
Dolby Digital, DTS
|
| Digital Media Slot |
SD, SDHC, SDXC
|
| Power Consumption |
30 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Dimensions |
19.0 x 1.7 x 11.1" / 483.0 x 44.0 x 281.0 mm
|
| Weight |
5.82 lb / 2.64 kg
|
