TASCAM BO-32DE 32 CHANNEL D-SUB EURO BLOCK BREAKOUT BOX
SKU
TAS-BO-32DE
MFR#
BO-32DE
was
$499.00
Special Price
$319.00
Availability:
Out of stock

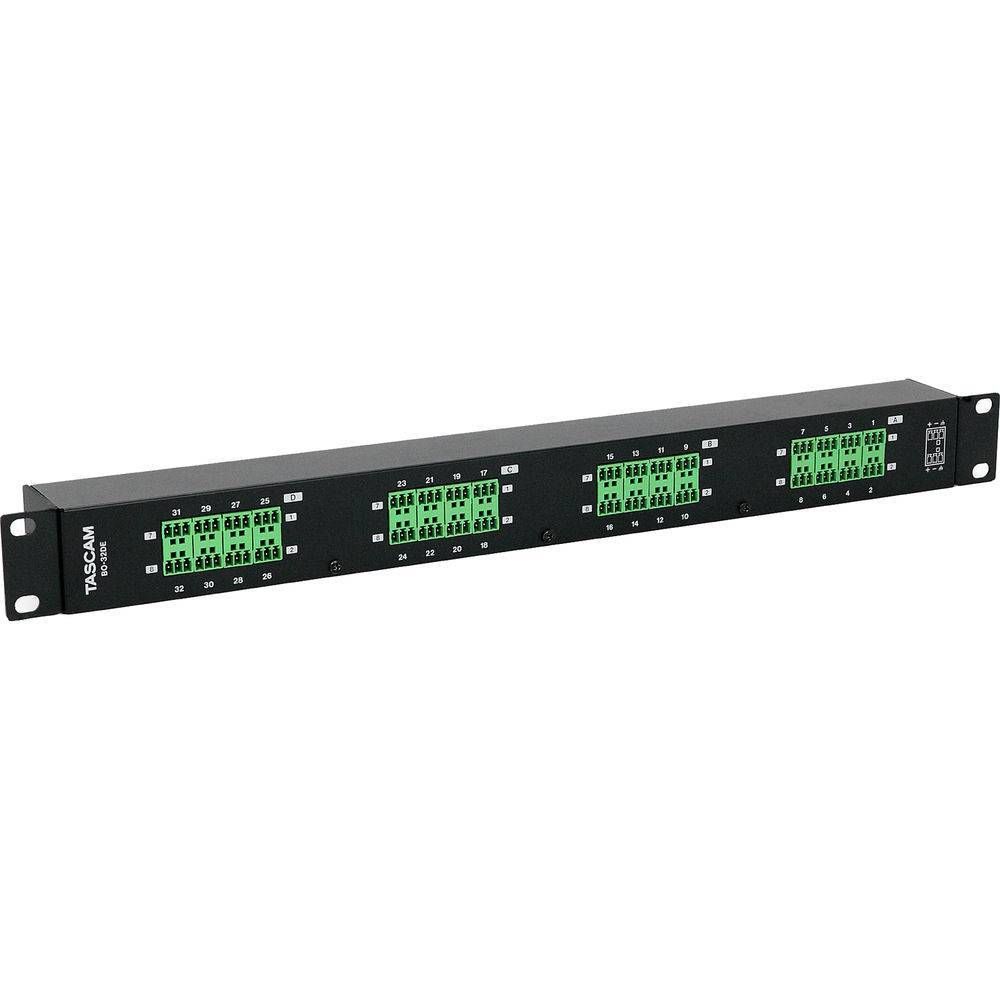

TASCAM BO-32DE 32 CHANNEL D-SUB EURO BLOCK BREAKOUT BOX
The TASCAM BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels of I/O include 16 Euroblocks and four DB25 connectors, all of which can be used as inputs or outputs.
Key Features
- For Live Stage & Commercial Installation
- 32 Channels of I/O
- 16 x Euroblock Connectors
- 4 x DB25 Connectors
- Connectors Function as Inputs or Outputs
- Rotatable Orientation
- Reversible Rack Ears
- Passive Design Requires No Power Source
- Includes 32 Euroblock Plug Tabs
- Includes Cable & Screw Kits
Specs
| I/O Connectors |
16 x Euroblock balanced connectors, 3.81 mm pitch
4 x DB25 balanced connectors (D-Sub 25-pin) |
| Other Connectors |
8 x 4-40 UNC inch-type attachment screws
|
| Dimensions |
19.0 x 1.7 x 2.0" / 482.6 x 44.1 x 50.8 mm
|
| Weight |
2 lb / 0.9 kg
|
